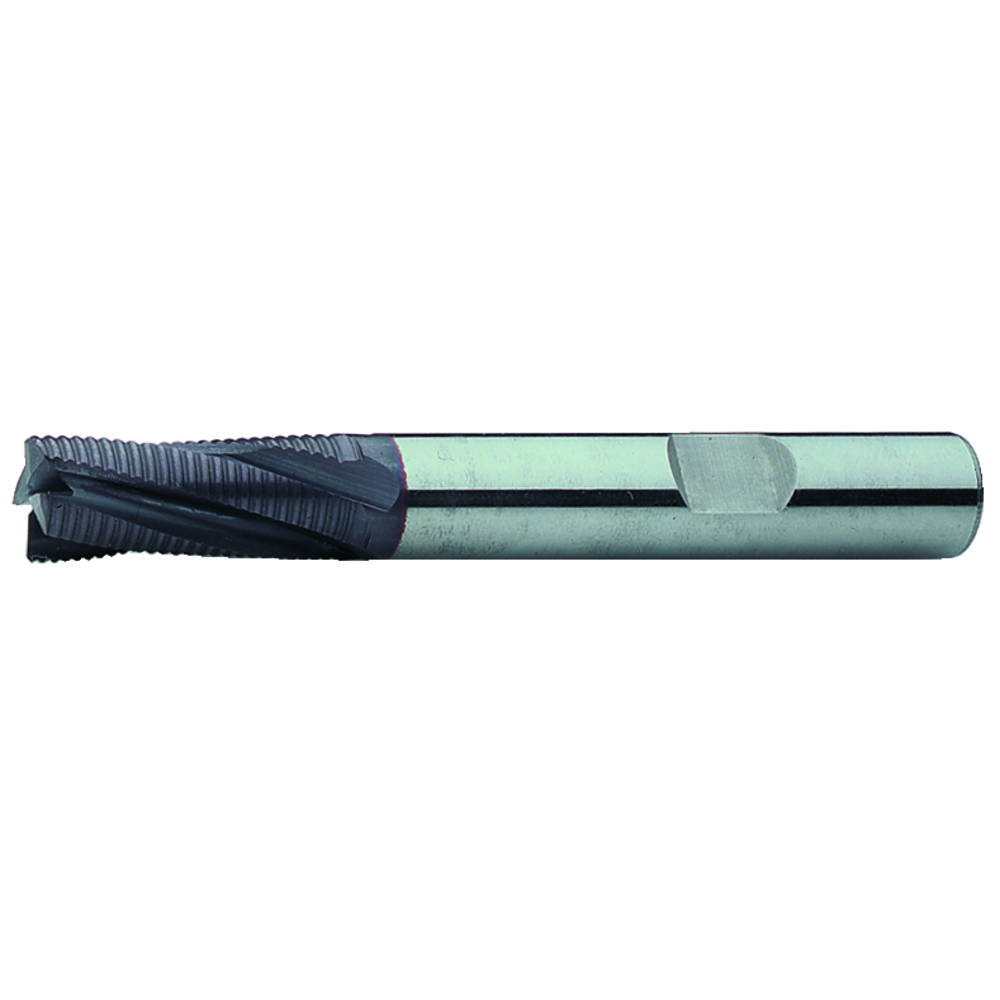

Solid carbide roughing cutter 20° HR 16mm Z=4 long, HB, TiAlN

Price:
218,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Roughing cutter
  • Long version
  • Cutting material: ultra-fine grain solid carbide, TiAlN-coated

Article no./ATORN no.
2540160160
Packaging unit
1
Catalogue page

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HSC
Coating TiAlN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 16,0 mm
D1 16,0 mm
Feed for grooving fz steel < 1000 mm² 0,151 mm/tooth
L 92 mm
L1 32 mm
Tolerance of cutting edge diameter e8
Tolerance of shank diameter h5
Tool holding device HB parallel shank
Twist angle 20°
Type HR
Z 4 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
hardened steel ≤ 55 HRC
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
