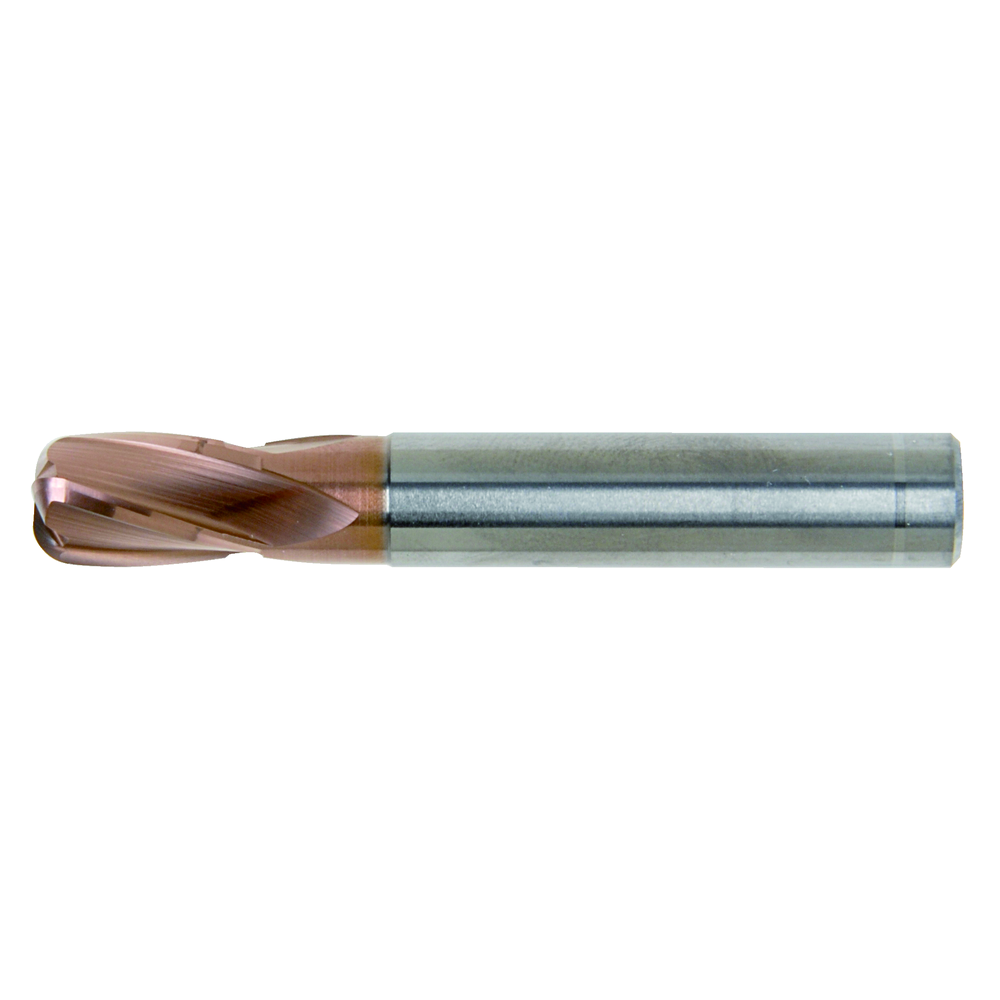

Solid carbide torus cutter 5mm R1mm L=54mm Z=4 HA, TiAlN-Ultra

Solid carbide torus cutter 5mm R1mm L=54mm Z=4 HA, TiAlN-Ultra
Solid carbide torus cutter 5mm R1mm L=54mm Z=4 HA, TiAlN-Ultra Solid carbide torus cutter 5mm R1mm L=54mm Z=4 HA, TiAlN-Ultra Solid carbide torus cutter 5mm R1mm L=54mm Z=4 HA, TiAlN-Ultra
Price:
64,60 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Torus milling cutter
  • With clearance
  • First-rate chip removal due to extremely smooth surface
  • Cutting material: ultra-fine grain solid carbide, TiAlN-Ultra-coated
  • Further sizes available on request

Article no./ATORN no.
2540720503 / 10911842
Packaging unit
1
Catalogue page

Technical characteristics

Coating TiAlN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 5,0 mm
D1 6,0 mm
D3 4,8 mm
Feed for side milling fz steel < 1400 mm² 0,06 mm/tooth
Jaw quantity 4 cutting edges
L 54 mm
L1 9 mm
L2 16 mm
Milling application Side Ramp Plunge
Milling technology HSC
R 1,0 mm
Shank Straight, DIN 6535 HA
Spiral angle 20° RH helix angle

Usage characteristics

cast iron GG/GTS
cast iron GGG
hardened steel < 60 HRc
hardened steel ≤ 55 HRC
hardened steel ≤ 65 HRC
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
