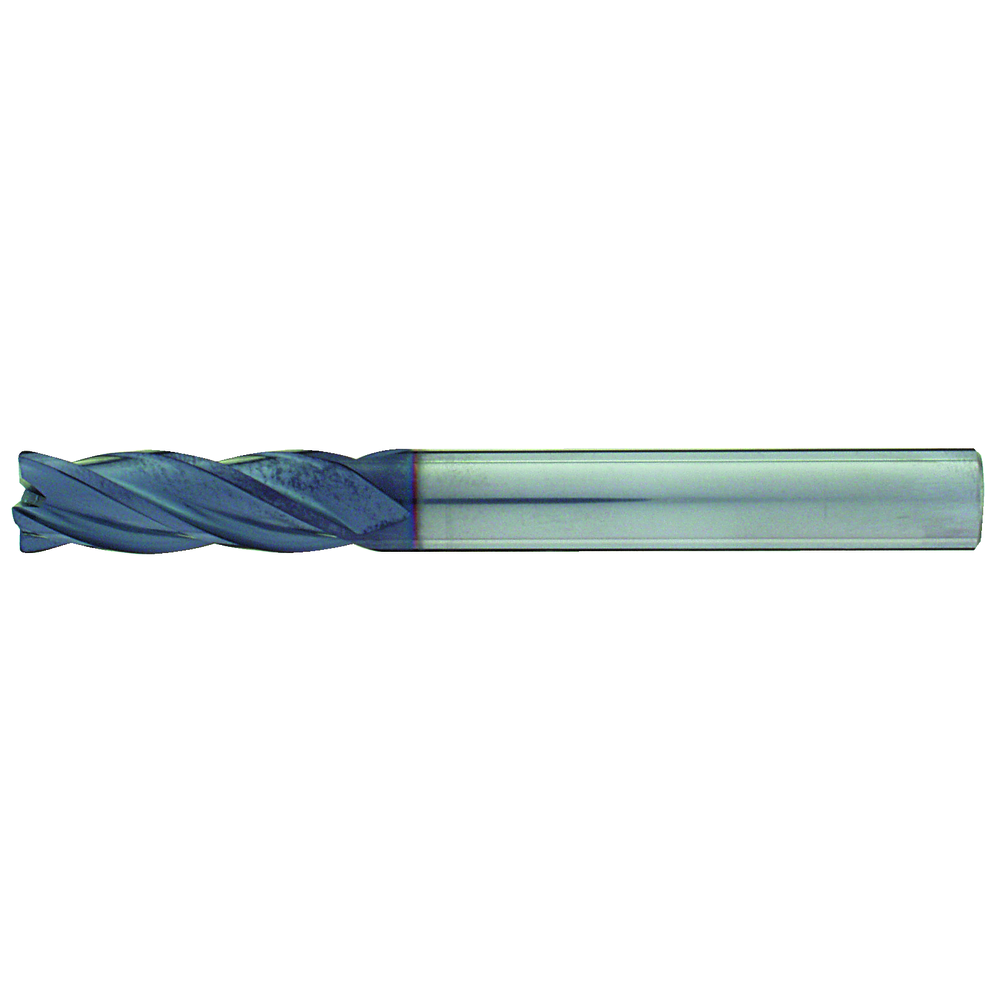

Solid carbide torus cutter 3mm R0,3mm Z=4 cut., long, shank HA, TiAlN

Solid carbide torus cutter 3mm R0,3mm Z=4 cut., long, shank HA, TiAlN
Solid carbide torus cutter 3mm R0,3mm Z=4 cut., long, shank HA, TiAlN Solid carbide torus cutter 3mm R0,3mm Z=4 cut., long, shank HA, TiAlN Solid carbide torus cutter 3mm R0,3mm Z=4 cut., long, shank HA, TiAlN
Price:
51,70 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Up to 60 HRC

Torus milling cutter
  • Long version
  • Cutting material: ultra-fine grain solid carbide, TiAlN-coated

Article no./ATORN no.
2540190001
Packaging unit
1
Catalogue page
KS-0435
Cutting values
SW-0743

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HSC
Coating TiAlN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 3,0 mm
D1 6,0 mm
Feed for side milling fz steel < 1000 mm² 0,041 mm/tooth
L 50 mm
L1 12 mm
R 0,3 mm
Tolerance of cutting edge diameter e8
Tolerance of shank diameter h5
Tool holding device HA parallel shank
Twist angle 30°
Z 4 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
hardened steel < 60 HRc
hardened steel ≤ 55 HRC
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
