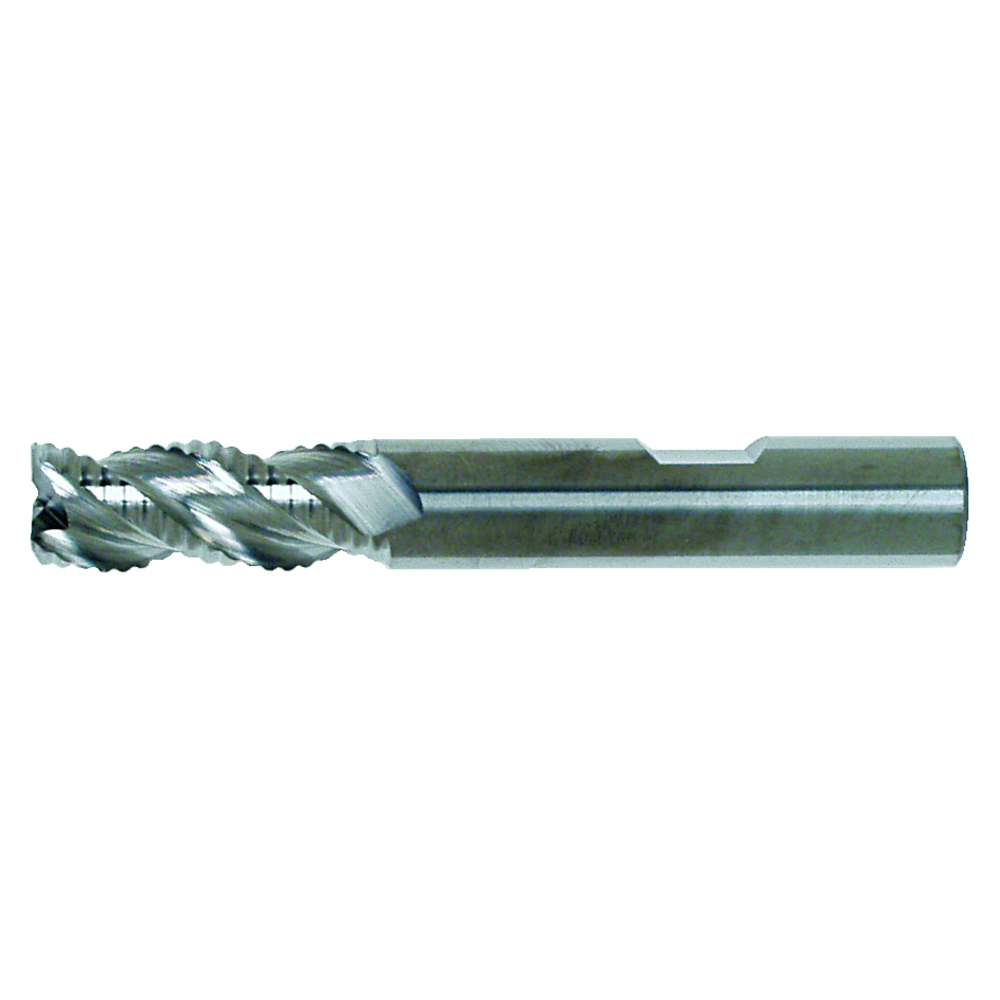

Solid carbide roughing cutter 40° 6mm Z=3 HB

Solid carbide roughing cutter 40° 6mm Z=3 HB
Solid carbide roughing cutter 40° 6mm Z=3 HB Solid carbide roughing cutter 40° 6mm Z=3 HB
Price:
74,20 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Roughing cutter
  • Very low cutting forces and minimal cutting pressure
  • Large chip flutes for reliable chip removal at up to 50 % higher feed rates

Article no./ATORN no.
2551680060
Vendor Article no.
VHRAW30600640615
Packaging unit
1
Catalogue page
KS-0466
Cutting values
SW-0759

Technical characteristics

Application direction milling Lining, ramping and drilling
Center cutting Yes
Coating uncoated
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 6,0 mm
D1 6 mm
Edge protection for chamfer angle 45° °
F x 45° 0,25 mm
Feed for grooving fz aluminium < 8 % Si 0,031 mm/tooth
Feed for side milling fz aluminium < 8 % Si 0,050 mm/tooth
L 64 mm
L1 16 mm
Tolerance of cutting edge diameter h9
Tolerance of shank diameter h6
Tool holding device HB parallel shank
Twist angle 40°
Type HR
Z 3 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short

very suitable
suitable
STEP Download
DXF Download
Catalogue page Download
Cutting values Download
