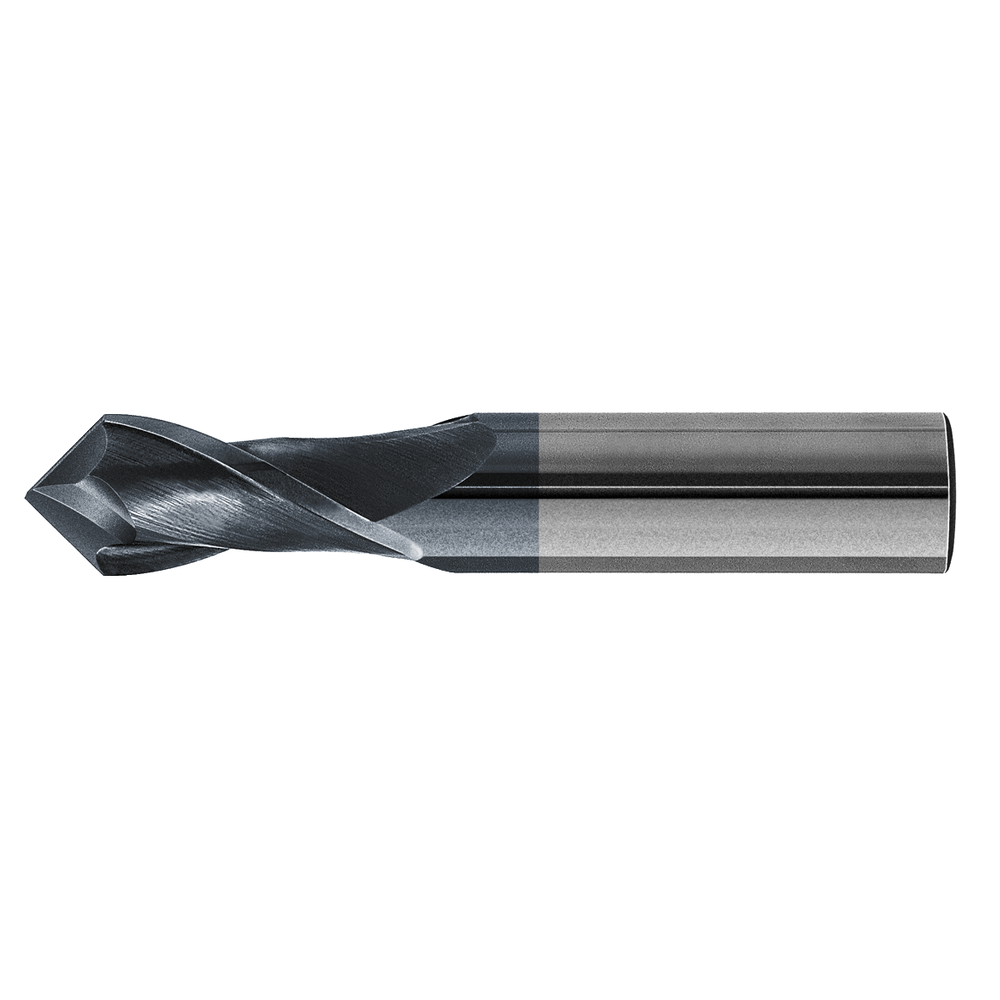

Solid carbide multifunction tool 90°, 5mm Z=2 HA, TiAlN

Solid carbide multifunction tool 90°, 5mm Z=2 HA, TiAlN
Solid carbide multifunction tool 90°, 5mm Z=2 HA, TiAlN Solid carbide multifunction tool 90°, 5mm Z=2 HA, TiAlN Solid carbide multifunction tool 90°, 5mm Z=2 HA, TiAlN
Special offer:
27,60 €
(69,00 € catalogue price / 60% saved)
prices excl. vat plus shipping costs

Stock status
Only 3 pieces left!
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Multifunction tool
  • Reinforced straight shank
  • Cutting material: K15F solid carbide, TiAlN-coated
  • Milling, drilling and countersinking with a single tool
  • Especially suitable for use on CNC machining centres
  • Up to eight machining operations without tool change

Article no./ATORN no.
2515490500
Packaging unit
1
Catalogue page

Technical characteristics

Angle of the tip - S 90 °
Application direction milling Lining, ramping and drilling
Coating TiAlN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 5,0 mm
D1 6 mm
Design 90°
Drill diameter 0,50 mm
Feed for grooving fz steel < 1000 mm² 0,006 mm/tooth
Feed for side milling fz steel < 1000 mm² 0,013 mm/tooth
L 50 mm
L1 10,0 mm
Tool holding device HA parallel shank
Twist angle 30°
Type N
Z 2 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
titanium alloys

very suitable
suitable
Catalogue page Download
Cutting values Download
