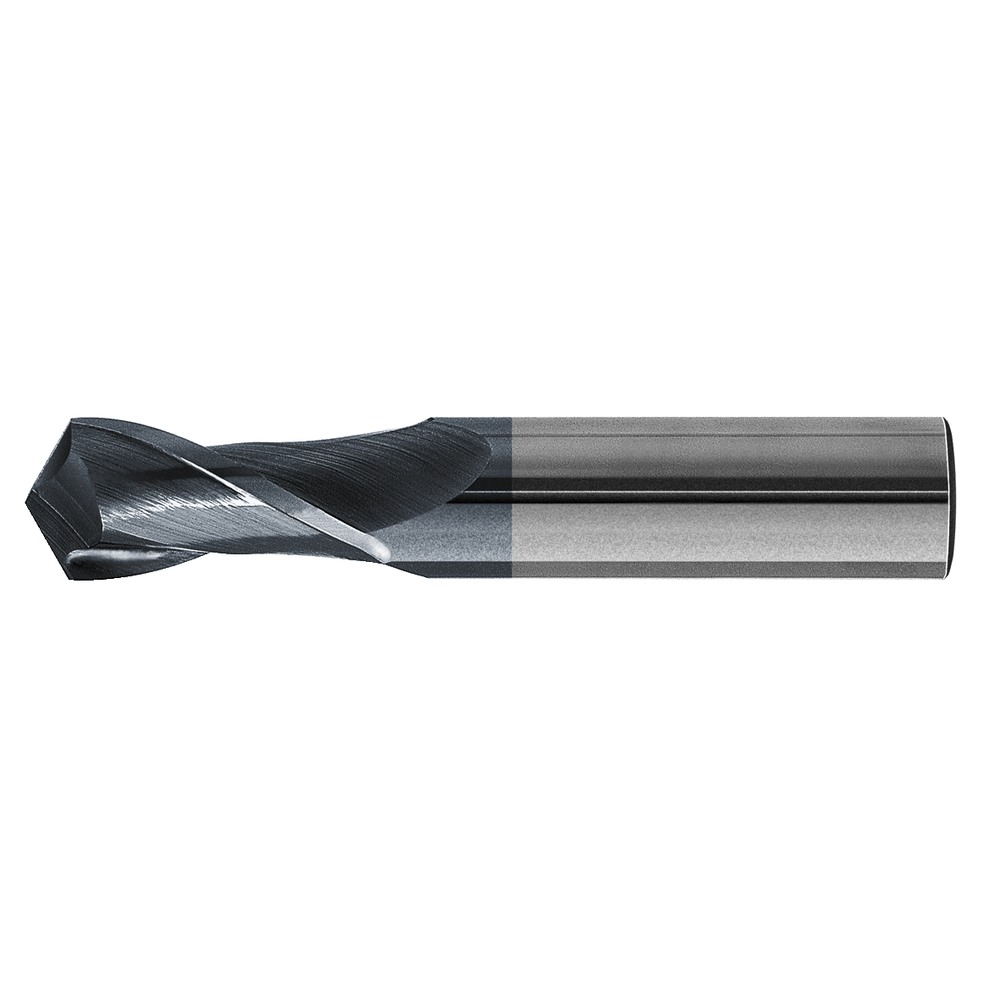

Solid carbide multifunction tool 120°, 2mm Z=2 HA, TiAlN

Solid carbide multifunction tool 120°, 2mm Z=2 HA, TiAlN
Solid carbide multifunction tool 120°, 2mm Z=2 HA, TiAlN Solid carbide multifunction tool 120°, 2mm Z=2 HA, TiAlN Solid carbide multifunction tool 120°, 2mm Z=2 HA, TiAlN
Special offer:
19,00 €
(47,50 € catalogue price / 60% saved)
prices excl. vat plus shipping costs

Stock status
Only 0 pieces left!
Add to shopping cart
Tool Finder
Multifunction tool
  • Reinforced straight shank
  • Cutting material: K15F solid carbide, TiAlN-coated
  • Milling, drilling and countersinking with a single tool
  • Especially suitable for use on CNC machining centres
  • Up to eight machining operations without tool change

Article no./ATORN no.
2515410200
Packaging unit
1
Catalogue page

Technical characteristics

Coating TiAlN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 2,0 mm
D1 3 mm
D2 0,20 mm
Design 120°
Feed for grooving fz steel < 1000 mm² 0,004 mm/tooth
Feed for side milling fz steel < 1000 mm² 0,008 mm/tooth
Jaw quantity 2 cutting edges
L 39 mm
L1 4,0 mm
Milling application Side Ramp Plunge
Point angle Point angle 120°
Shank Straight
Spiral angle 30° RH helix angle
Type profile Type N

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
titanium alloys

very suitable
suitable
Catalogue page Download
Cutting values Download
