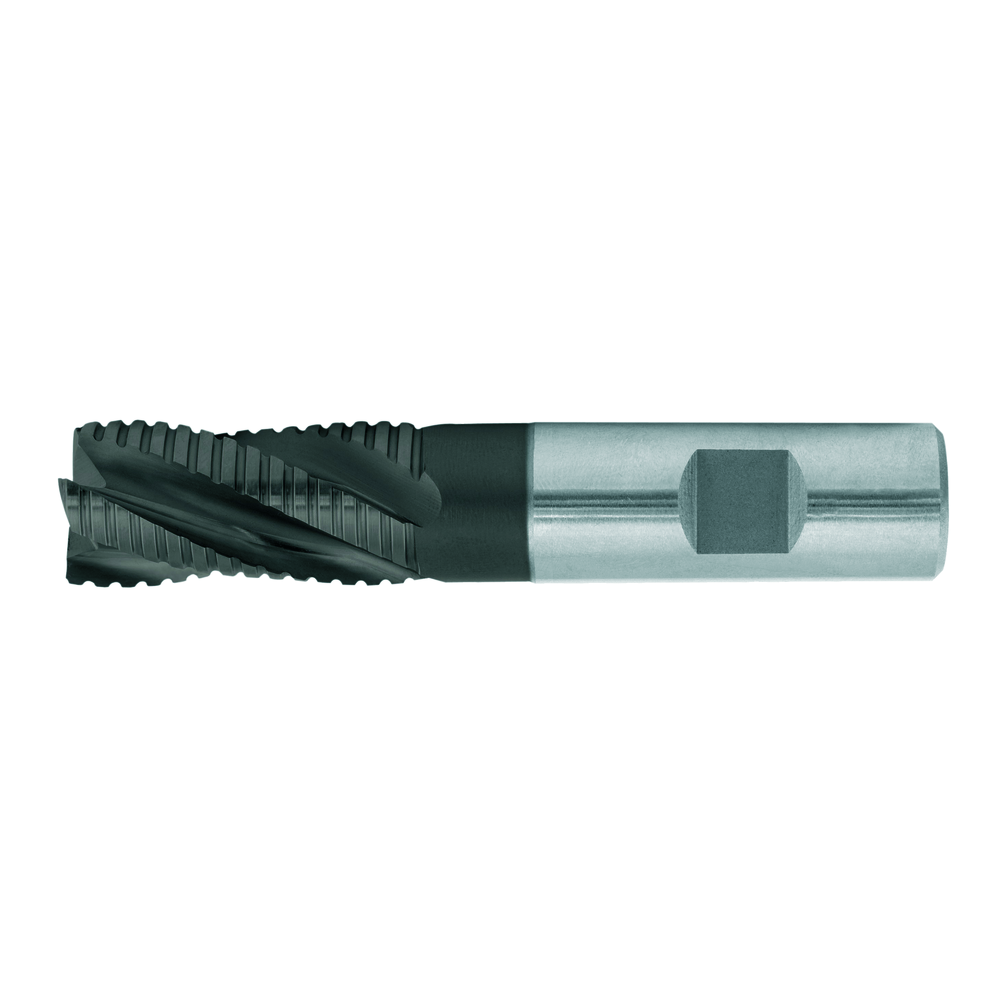

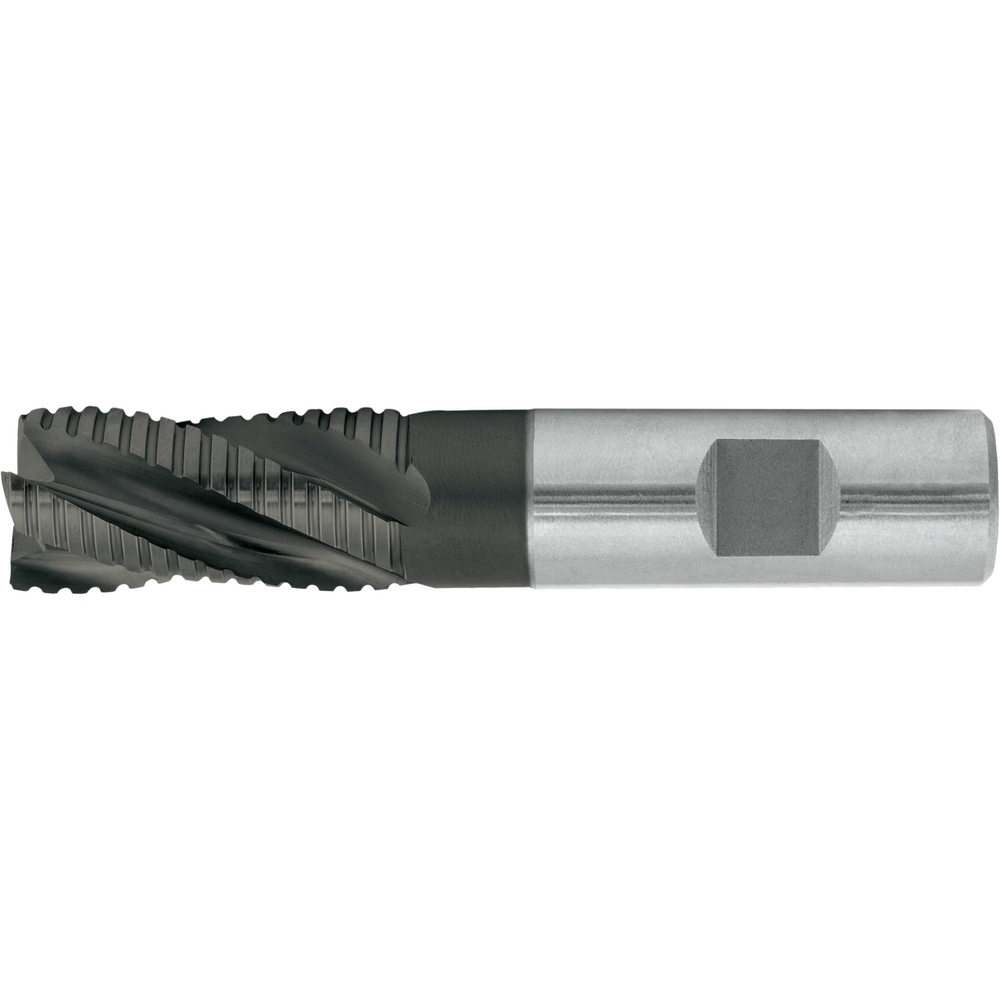

Roughing/finishing cutter HSS-E PM DIN844NF 6mm Z=4 short, TiAlN

Price
40,40 €
prices excl. vat plus shipping costs

Stock status
in stock

Ordered by 18:00 - delivered tomorrow.

Roughing / finishing cutter
  • Eccentric relief grinding

Short
Article no./ATORN no.
2262550060 / 11230124
Packaging unit
1
Catalogue page
Cutting values

Technical characteristics

Application direction milling Lining, ramping and drilling
Coating TiAlN
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
D 6,0 mm
D1 6 mm
DIN 844
Feed fz steel < 1000 N/mm² 0,009 mm/tooth
Feed fz steel < 1000 N/mm² 0,018 mm/tooth
L 57 mm
L1 13 mm
Tolerance of shank diameter h6 mm
Tool holding device HB parallel shank
Twist angle 30°
Z 4 pc.

Usage characteristics

brass short
cast iron GG/GTS
cast iron GGG
hardened steel ≤ 55 HRC
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
titanium alloys

very suitable
suitable
