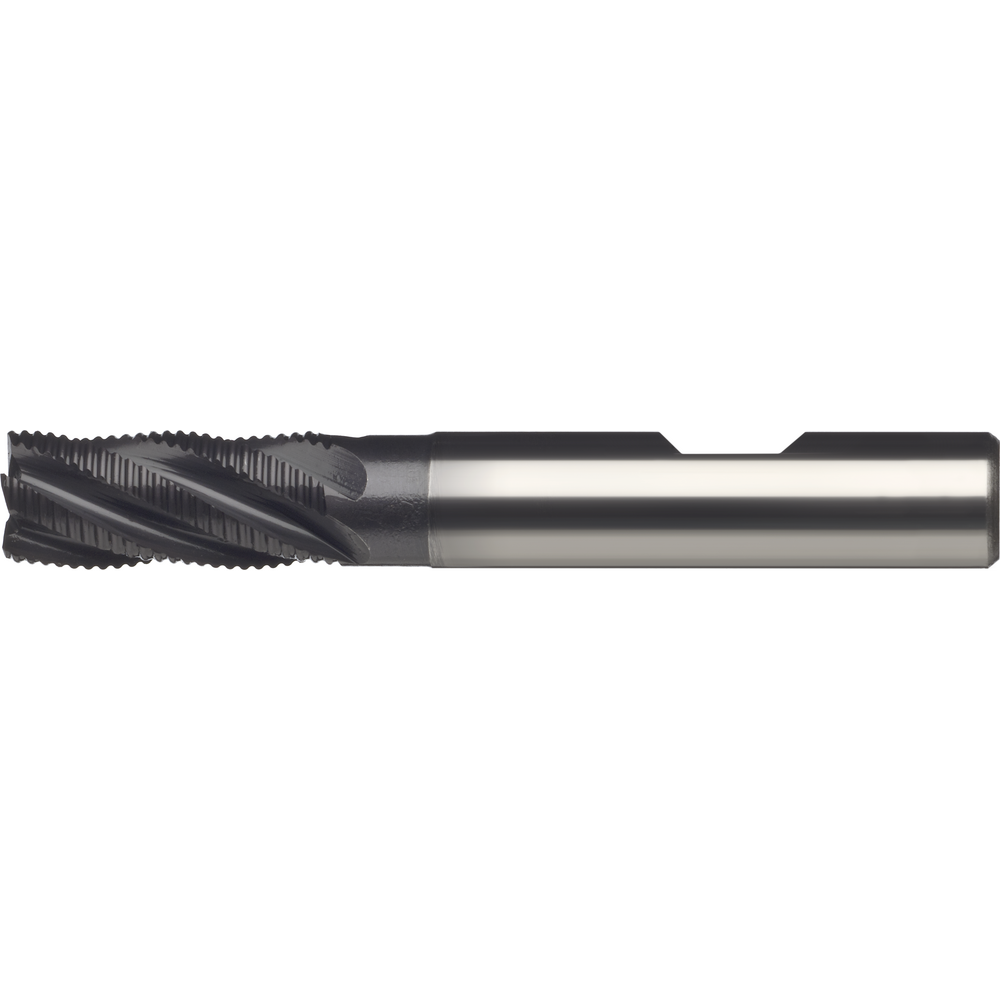

Roughing cutter HSS-E PM DIN844NR-F 6mm Z=4 short, TiAlN

Roughing cutter HSS-E PM DIN844NR-F 6mm Z=4 short, TiAlN
Roughing cutter HSS-E PM DIN844NR-F 6mm Z=4 short, TiAlN Roughing cutter HSS-E PM DIN844NR-F 6mm Z=4 short, TiAlN
Price
42,20 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 18:00 - delivered tomorrow.

Roughing cutter
  • With fine knuckle-type tooth profile
  • Eccentric relief grinding

Short
Article no./ATORN no.
2262450060 / 11230038
Packaging unit
1
Catalogue page
KS-0570
Cutting values
SW-0730

Technical characteristics

Application direction milling Lining, ramping and drilling
Coating TiAlN
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
D 6 mm
D1 6 mm
DIN 844
Durchmesser max. 32 mm
Durchmesser min. 6 mm
Durchmesser min./max. 6-32 mm
Edge protection for chamfer angle 45 °
Eignung Edelstahl gesamt 2
Eignung nicht Eisen gesamt 2
Eignung Titan/Nickel/Super gesamt 2
F x 45° 0,1 mm
Feed fz steel < 1000 N/mm² 0,012 mm/tooth
Feed fz steel < 1000 N/mm² 0,021 mm/tooth
fitness hartl total 3
fz Stahl 700 0,038 mm
L 57 mm
L1 13 mm
Norm Fräserausführung DIN 844 K
Suitable for material group H 3
Suitable for material group K 2
Suitable for material group M 2
Suitable for material group N 2
Suitable for material group P 1
Suitable for material group S 2
Surface TiAlN
Tolerance of cutting edge diameter k12
Tolerance of shank diameter h6
Tool holding device HB parallel shank
Twist angle 30°
Type NRF
Z 4 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GG/GTS
cast iron GGG
plastic
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
