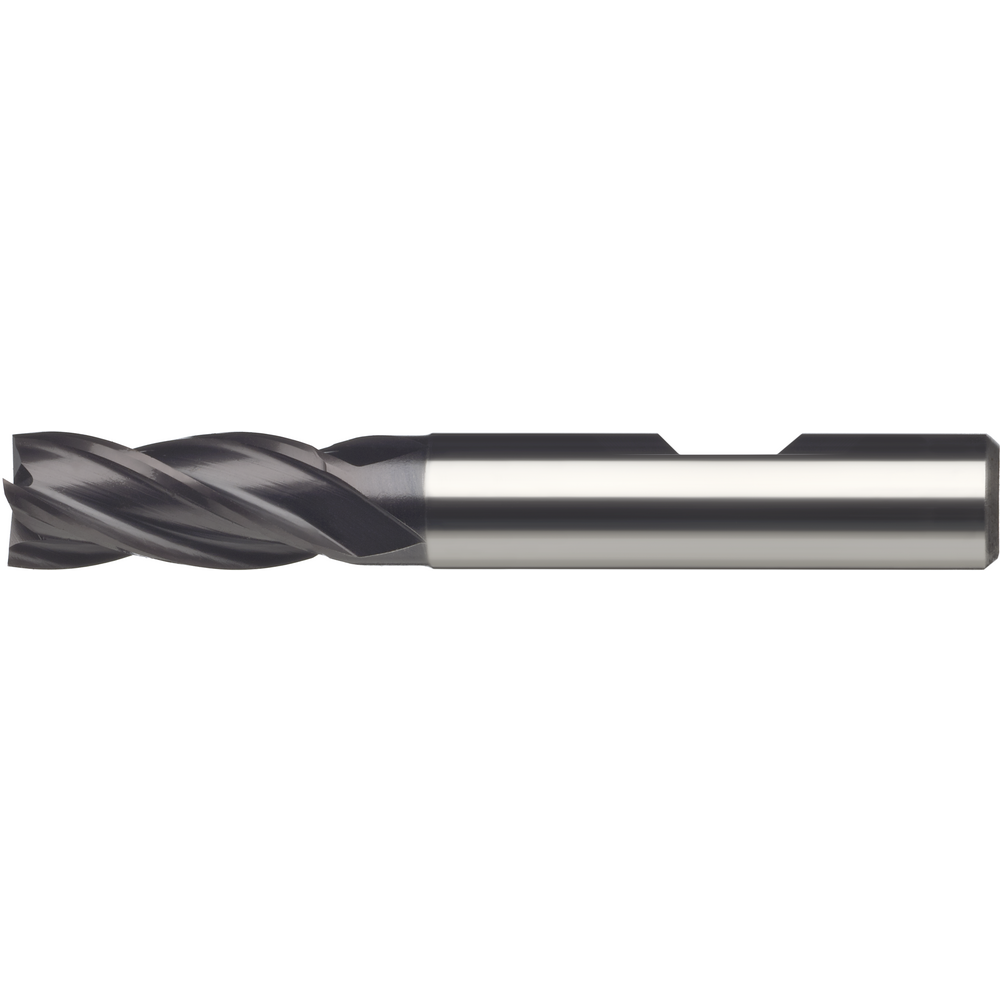

End milling cutter HSS-E PM DIN844N 2mm Z=4 short, TiAlN

End milling cutter HSS-E PM DIN844N 2mm Z=4 short, TiAlN
End milling cutter HSS-E PM DIN844N 2mm Z=4 short, TiAlN End milling cutter HSS-E PM DIN844N 2mm Z=4 short, TiAlN

We charge a material cost surcharge of 6,90% on this product.

Price
25,50 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

_ItemDeliveryInfoSaratools missing

End milling cutters
  • Eccentric relief grinding

Short
Article no./ATORN no.
2262250020 / 11230012
Packaging unit
1
Catalogue page
KS-0570
Cutting values
SW-0731

Technical characteristics

Application direction milling Lining, ramping and drilling
Center cutting Yes
Coating TiAlN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
D 2 mm
D1 6 mm
DIN 844
Durchmesser max. 32 mm
Durchmesser min. 2 mm
Durchmesser min./max. 2-32 mm
Edge protection chamfer length 0,1 mm
Edge protection for chamfer angle 45 °
Eignung Edelstahl gesamt
Eignung nicht Eisen gesamt
Eignung Titan/Nickel/Super gesamt
Feed fz steel < 1000 N/mm² 0,008 mm/tooth
Form Corner
fz Stahl 700 0,011 mm
Geeignet für Werkstoffgruppe K
Geeignet für Werkstoffgruppe M
Geeignet für Werkstoffgruppe N
Geeignet für Werkstoffgruppe P
Geeignet für Werkstoffgruppe S
L 51 mm
L1 7 mm
Milling cutter design standard DIN 844 K
Overall length Normal
Surface TiAlN
Tolerance of cutting edge diameter k10
Tolerance of shank diameter h6
Tool holding device HB parallel shank
Twist angle 30°
Type N
Z 4 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GG/GTS
cast iron GGG
hardened steel ≤ 55 HRC
plastic
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
