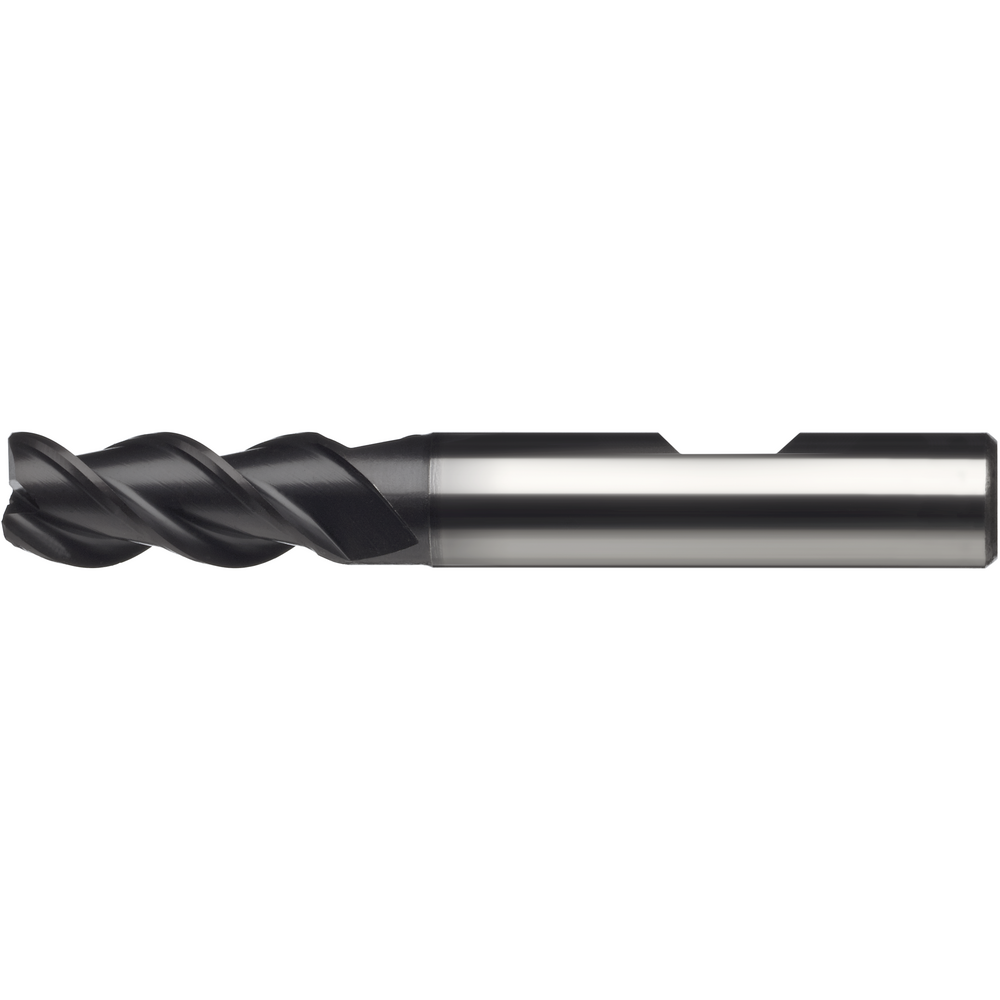

End milling cutter HSS-E PM DIN844N 4mm Z=3 TiAlN

End milling cutter HSS-E PM DIN844N 4mm Z=3 TiAlN
End milling cutter HSS-E PM DIN844N 4mm Z=3 TiAlN End milling cutter HSS-E PM DIN844N 4mm Z=3 TiAlN
Special offer
22,20 €
(29,60 € catalogue price / 25% saved)
prices excl. vat plus shipping costs

Stock status
Only 8 pieces left!
Add to shopping cart
Tool Finder

Ordered by 18:00 - delivered tomorrow.

End milling cutters
  • Eccentric relief grinding

Article no./ATORN no.
2262150040 / 11230001
Packaging unit
1
Catalogue page
KS-0568
Cutting values
SW-0729

Technical characteristics

Center cutting Yes
Coating TiAlN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
D 4 mm
D1 6 mm
DIN 844
Durchmesser max. 20 mm
Durchmesser min. 4 mm
Durchmesser min./max. 4-20 mm
Edge protection for chamfer angle 45 °
Eignung Edelstahl gesamt 2
Eignung nicht Eisen gesamt 2
Eignung Titan/Nickel/Super gesamt 2
F x 45° 0,1 mm
Feed fz steel < 1000 N/mm² 0,008 mm/tooth
fitness hartl total 3
Form Corner
fz ALU 0,036 mm
L 55 mm
L1 11 mm
Milling cutter design standard DIN 844 K
Overall length Normal
Suitable for material group H 3
Suitable for material group K 2
Suitable for material group M 1
Suitable for material group N 1
Suitable for material group P 1
Suitable for material group S 1
Surface TiAlN
Tolerance of cutting edge diameter e8
Tolerance of shank diameter h6
Tool holding device HB parallel shank
Twist angle 45°
Type W
Z 3 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GG/GTS
cast iron GGG
plastic
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
