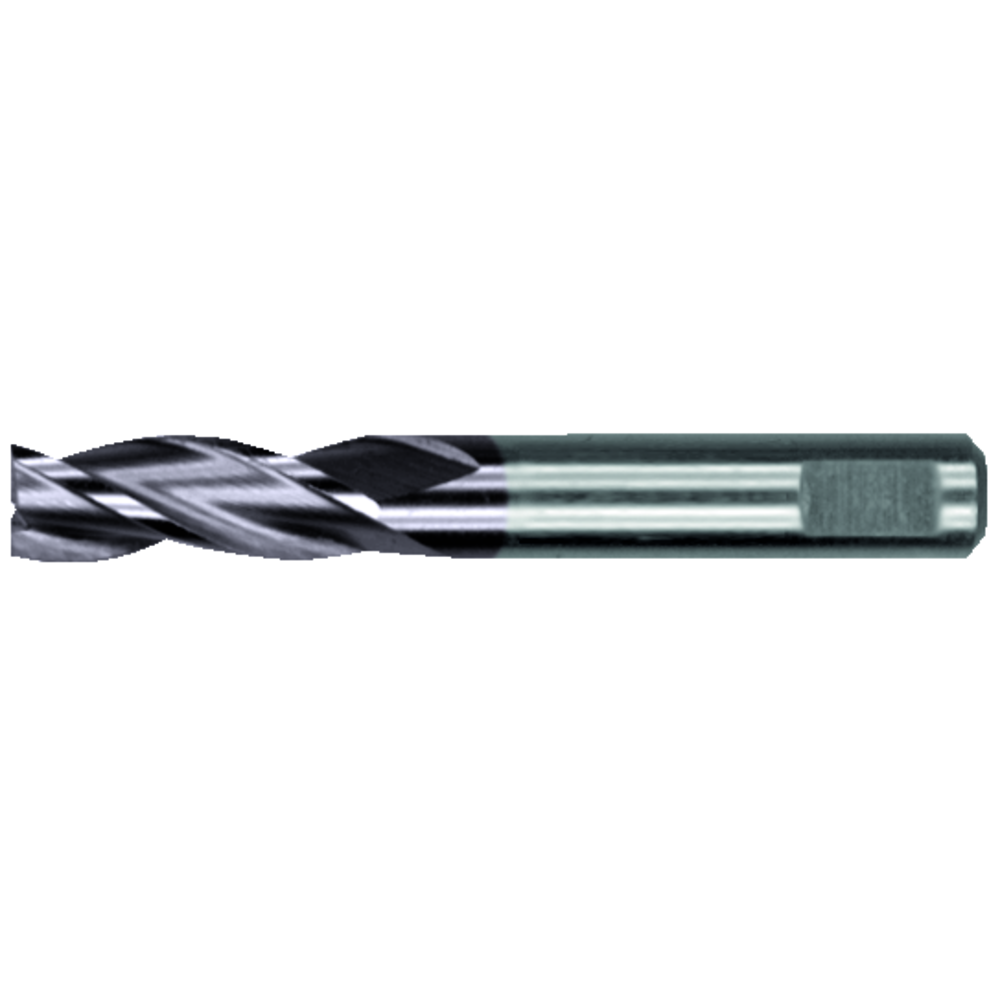

Mini-end milling cutter HSS-E type N 3mm Z=3 cutting edge, long, AlCrN

Mini-end milling cutter HSS-E type N 3mm Z=3 cutting edge, long, AlCrN
Mini-end milling cutter HSS-E type N 3mm Z=3 cutting edge, long, AlCrN Mini-end milling cutter HSS-E type N 3mm Z=3 cutting edge, long, AlCrN
Price
13,20 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
End milling cutters
Long
Article no./ATORN no.
2220150030 / 11931922
Packaging unit
1
Alternative items
View alternative items
Catalogue page

Technical characteristics

Coating AlCrN
Cutting data Cutting angle Information - yes
Cutting material HSSE
D 3,0 mm
D1 6 mm
Design AlCrN
Feed fz steel < 1000 N/mm² 0,007 mm/tooth
Jaw quantity 3 cutting edges
L 39 mm
L1 8 mm
Milling application Side Ramp Plunge
Shank Straight with driving plane, DIN 1835 B
Spiral angle 30° RH helix angle
Standard constructional dimensions DIN Non-DIN
Type profile Type N

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 700 N/mm²

very suitable
suitable
Cutting values Download
