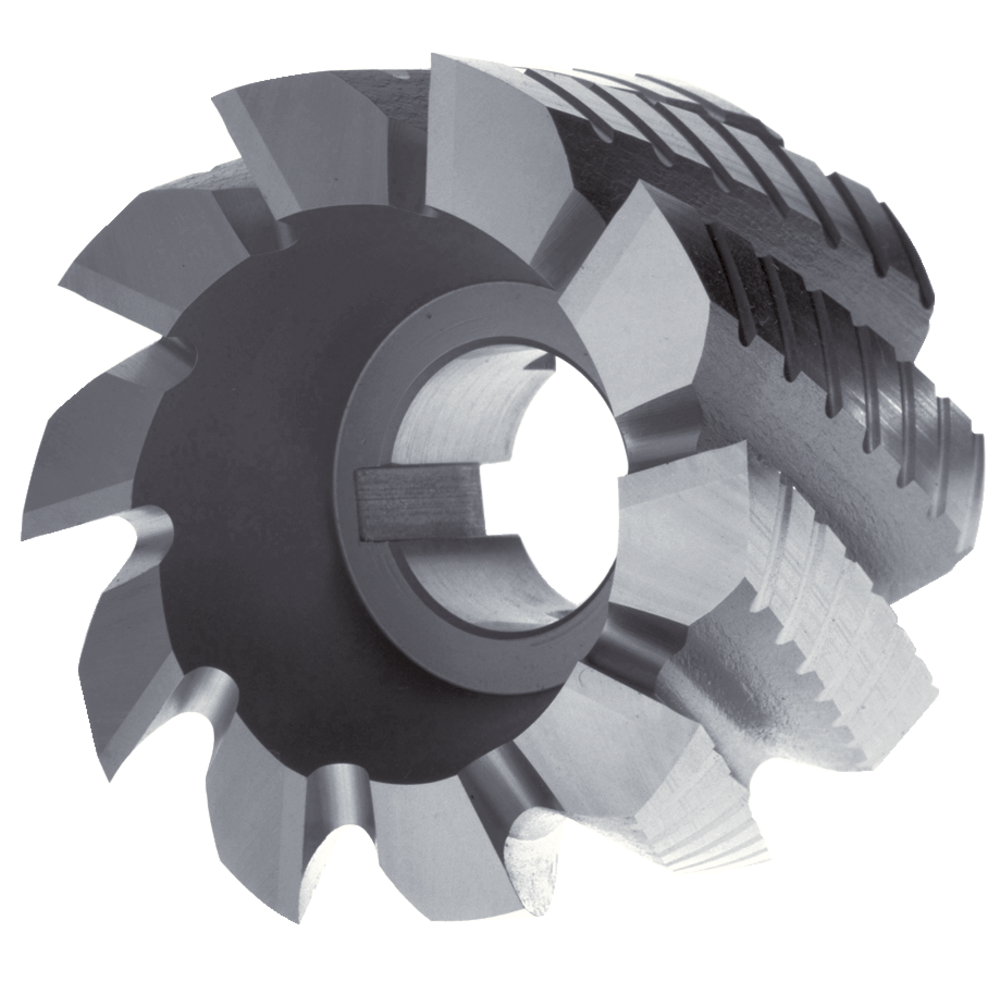

Shell end mill HSS-E DIN841NF, 50x50x22mm 6

Shell end mill HSS-E DIN841NF, 50x50x22mm 6
Shell end mill HSS-E DIN841NF, 50x50x22mm 6 Shell end mill HSS-E DIN841NF, 50x50x22mm 6
Price
236,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Shell end mills
  • With longitudinal and transverse grooves in accordance with DIN 138
  • Right-hand cutting, right-hand twist = 30°
  • Profile relief grinding

Article no./ATORN no.
2105350005
Packaging unit
1
Catalogue page

Technical characteristics

Application direction milling Lining and ramping
Coating uncoated
Cutting data Cutting angle Information - yes
Cutting material HSSE
D 50,0 mm
D1 22 mm
Design Type NF, roughing/finishing
DIN 841
Total height 50 mm
Twist angle 30°
Type NF
Z 8 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
Cutting values Download
