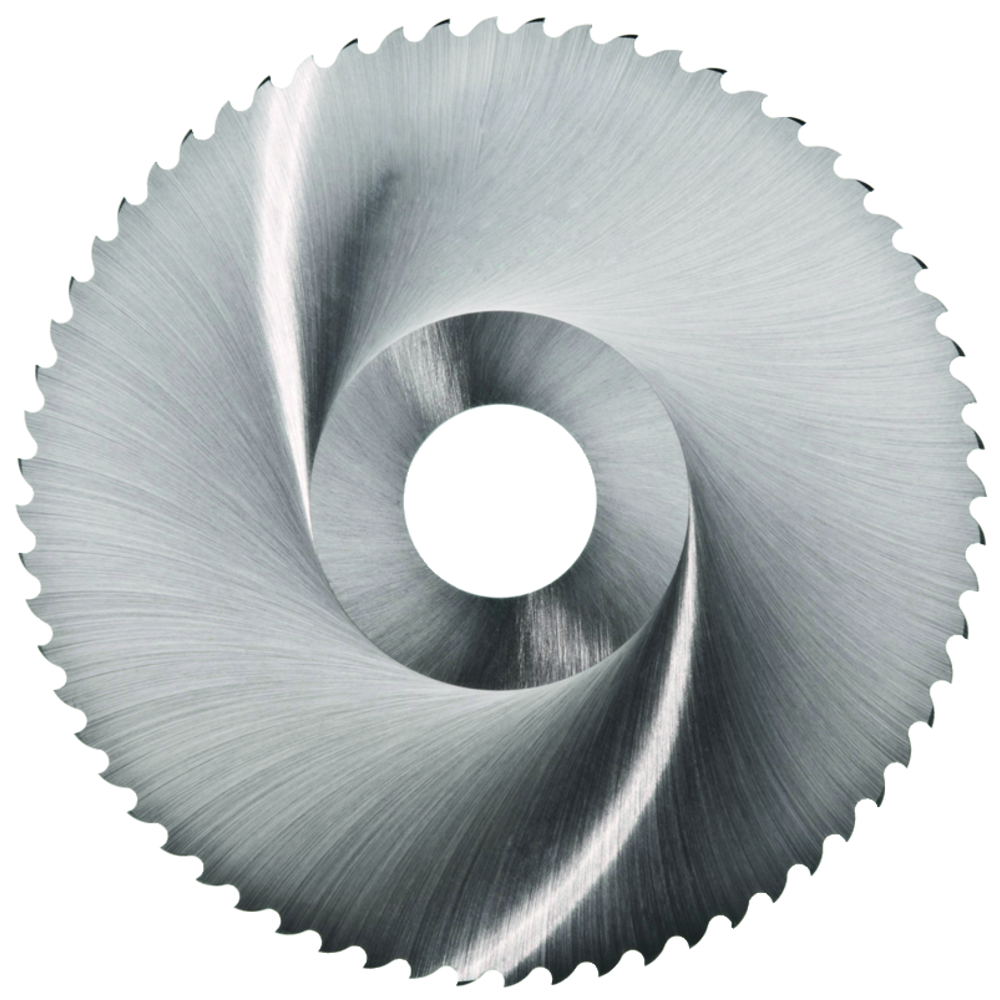

Metal circular saw blade HSS DIN1838C 50x1x13mm 40 ridges, coarse-toothed HZ

Price
45,30 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Metal circular saw blade
  • Coarse-toothed
  • Curved toothing with lead and raker teeth (HZ toothing)
  • Lateral bevel grinding (hollow grinding), bore hole without keyway
  • This tooth form is primarily used for end-to-end cutting as the raised lead tooth makes it impossible to achieve a straight finish at the base of the cut with non-continuous cutting or milling. Otherwise, these blades can be used as specified in DIN 1838 B.

Article no./ATORN no.
2001100001
Packaging unit
1
Catalogue page
Cutting values

Technical characteristics

Cutting data Cutting angle Information - yes
Cutting material HSS
D 50,0 mm
D1 13 mm
DIN 1838
Number of teeth 40 pc.
Thickness of cutting edge 1,0 mm
Tooth form C
Type N

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
