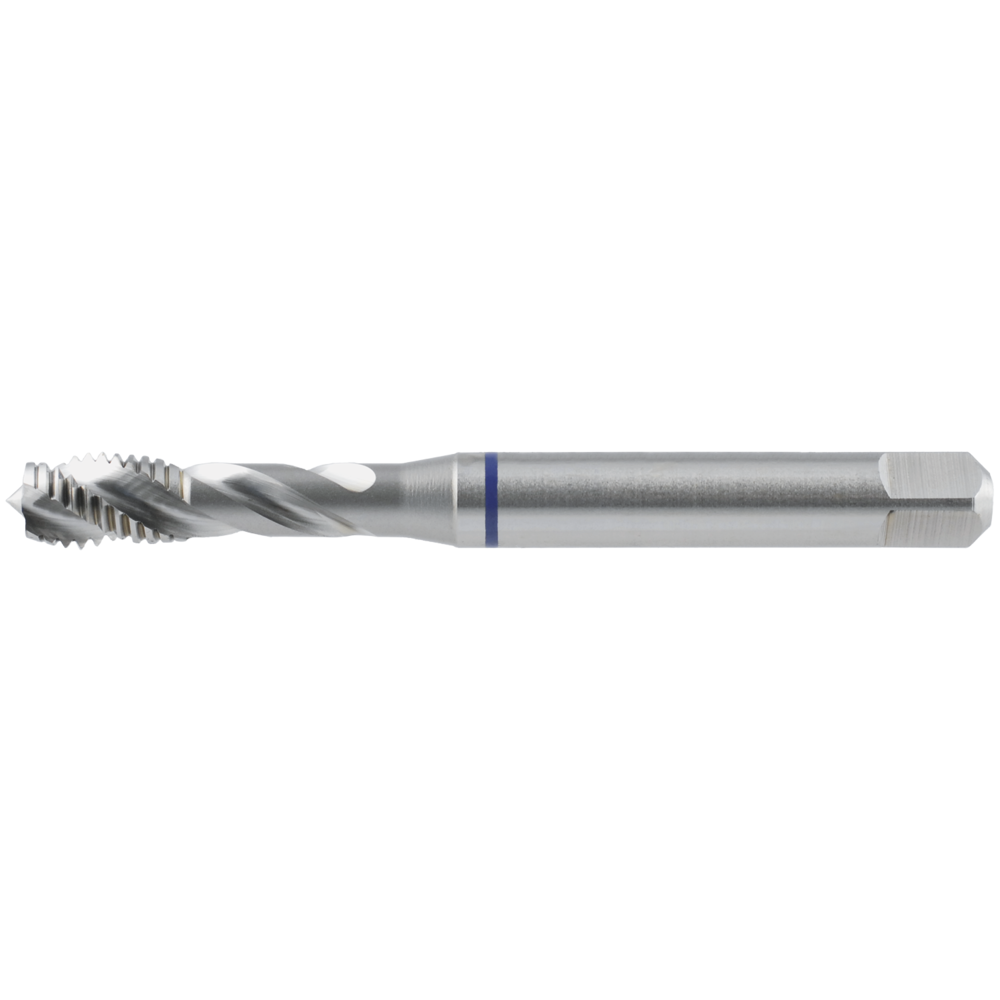

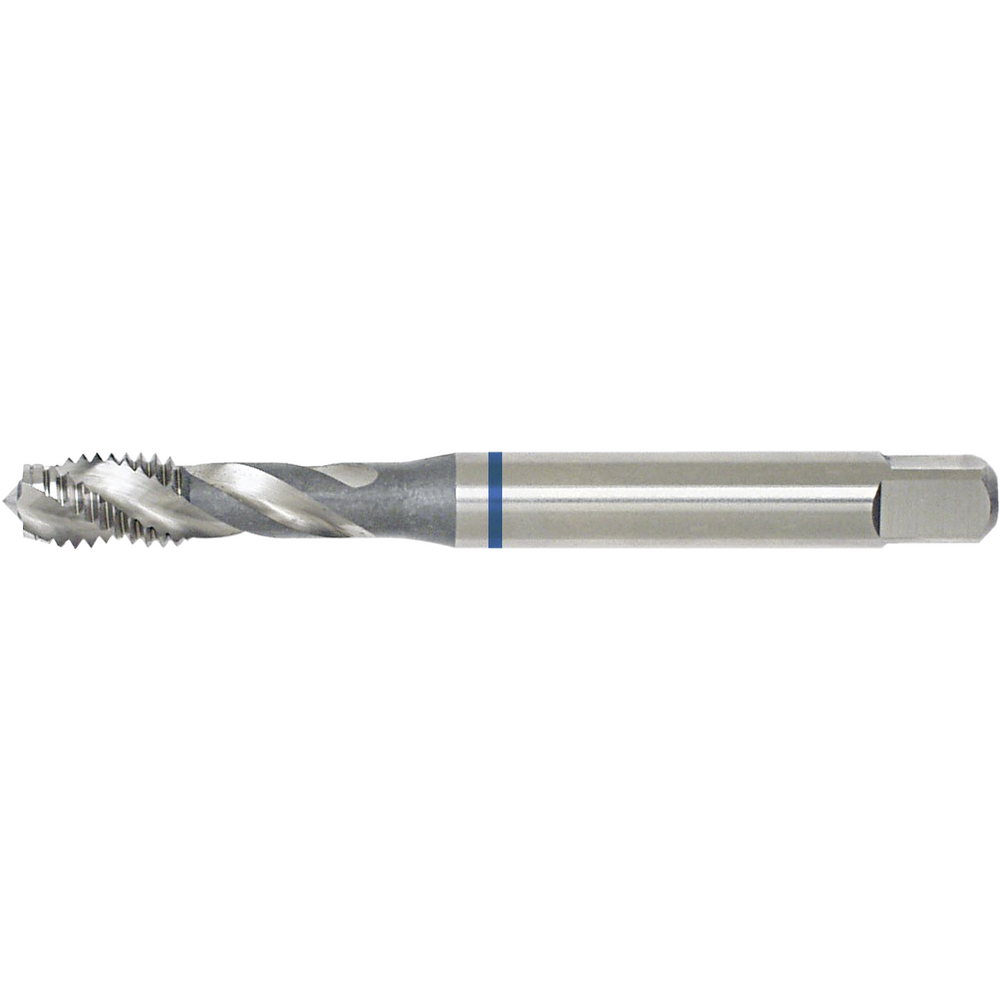

Machine tap HSS-E PM DIN371C 40°, M3 blind-hole thread

Machine tap HSS-E PM DIN371C 40°, M3 blind-hole thread
Machine tap HSS-E PM DIN371C 40°, M3 blind-hole thread Machine tap HSS-E PM DIN371C 40°, M3 blind-hole thread
Special offer
15,52 €
(39,80 € catalogue price / 61% saved)
prices excl. vat plus shipping costs

Stock status
Only 2 pieces left!
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

Machine tap
  • ISO 6H metric thread
  • 40°, spiral-fluted
  • Type C, 2-3 thread chamfer
  • DIN 371 construction dimensions = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E-PM
  • For blind-hole threads
  • Shortened threaded part, larger relief grinding, narrow cutting inserts
  • Possible thread depth 2.5 x D

Article no./ATORN no.
1342350030 / 11290405
Packaging unit
1
Catalogue page

Technical characteristics

C 2,7 mm
Coating uncoated
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
D M 3
D1 3,5 mm
DIN 371
Form/Chamfer C
L 56 mm
L1 10 mm
L2 18 mm
Max. thread depth 2,5xD
Pitch 0,5 mm
Tapping hole Ø 2,50 mm
Thread M
Thread angle 60 °
Threaded hole type Stud hole
Tolerance of screw taps ISO 2 (6H)
Twist angle 40°

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
titanium alloys

very suitable
suitable
