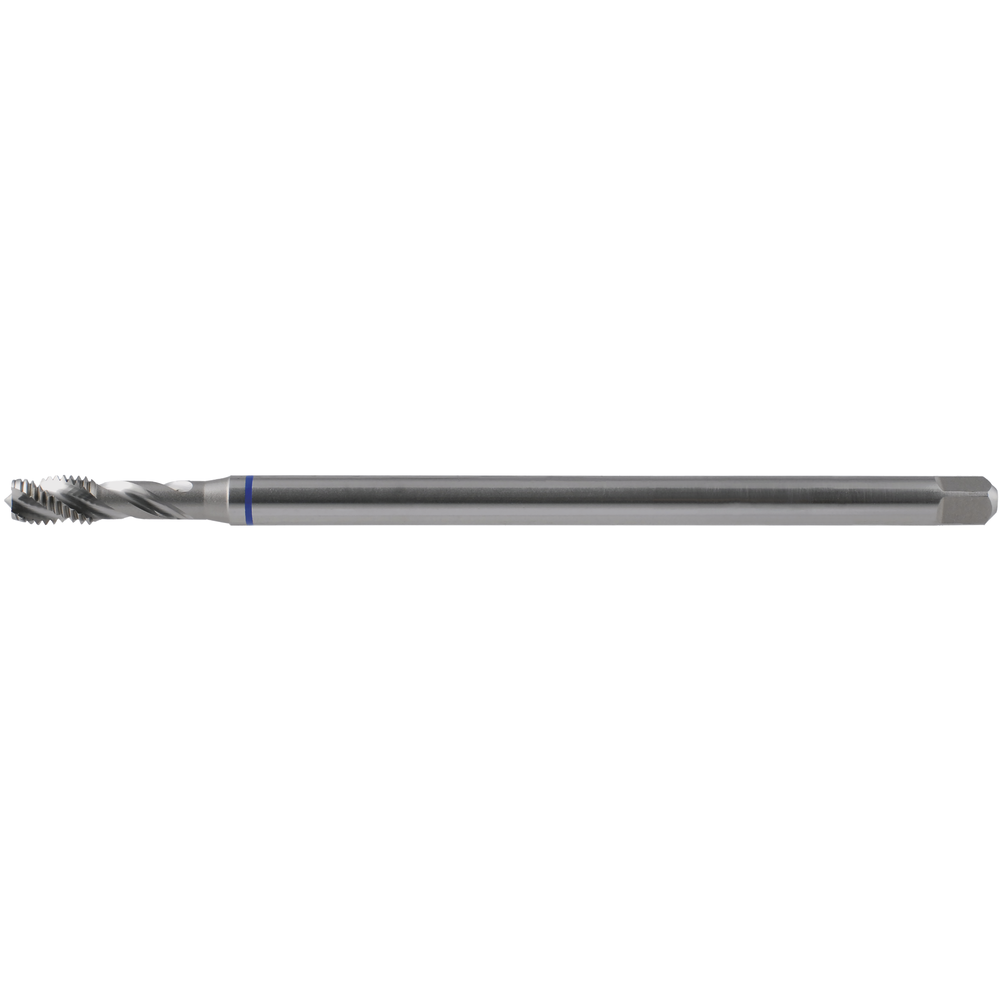

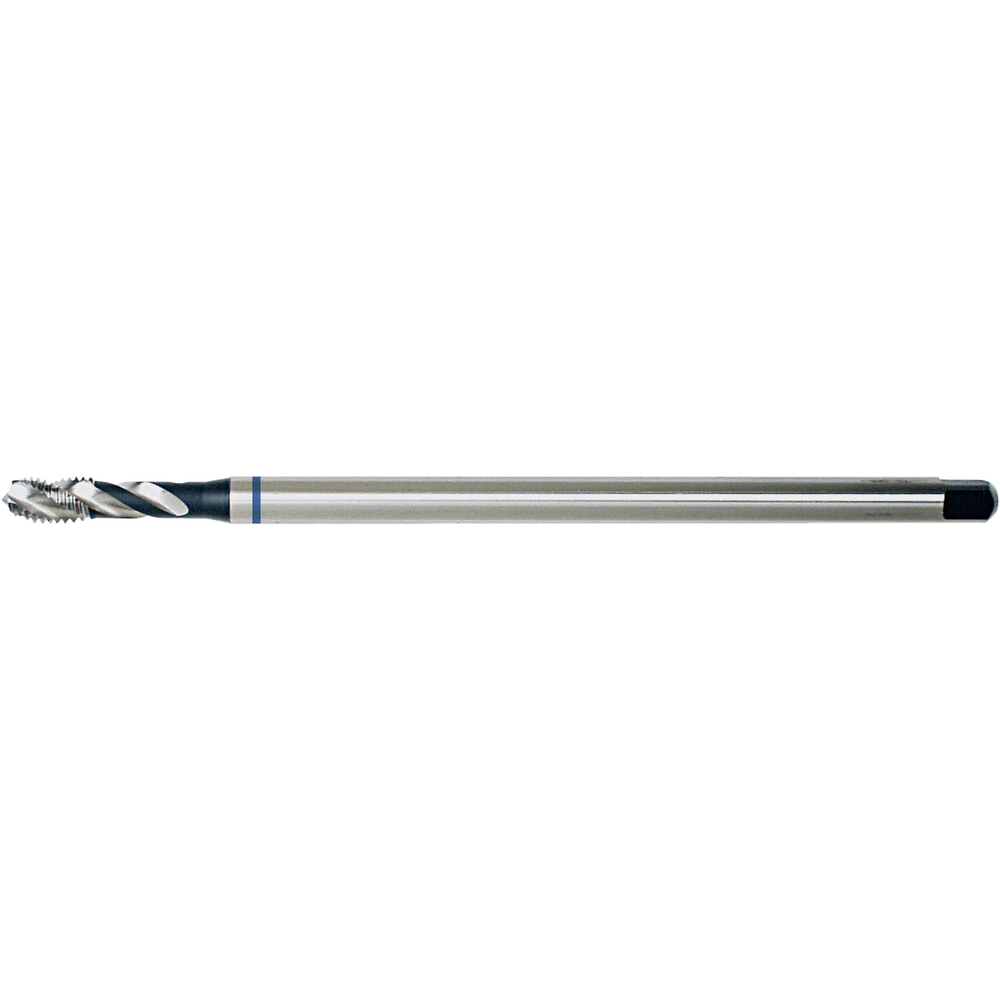

Machine tap HSS-E WN type C 40°, M3 blind-hole thread L=112mm

Machine tap HSS-E WN type C 40°, M3 blind-hole thread L=112mm
Machine tap HSS-E WN type C 40°, M3 blind-hole thread L=112mm Machine tap HSS-E WN type C 40°, M3 blind-hole thread L=112mm
Price:
48,60 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Machine tap, long
  • ISO 6H metric thread
  • 40°, spiral-fluted
  • Type C, 2-3 thread chamfer
  • Constructional dimensions similar to DIN 371 = up to M10, similar to DIN 376 = from M12
  • Cutting material: HSS-E
  • For blind-hole threads
  • Strong chip removal to the rear for long-chipping materials
  • Minimal thread relief grinding
  • Possible thread depth 2.5 x D

Machine tap, long
  • ISO 6H metric thread
  • 40°, spiral-fluted
  • Type C, 2-3 thread chamfer
  • Constructional dimensions similar to DIN 371 = up to M10, similar to DIN 376 = from M12
  • Cutting material: HSS-E
  • For blind-hole threads
  • Strong chip removal to the rear for long-chipping materials
  • Minimal thread relief grinding
  • Possible thread depth 2.5 x D

Article no./ATORN no.
1342200030 / 11290370
Packaging unit
1
Catalogue page

Technical characteristics

C 2,7 mm
C 2,7 mm
Coating uncoated
Coating uncoated
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
D M 3 mm
D M 3 mm
D1 3,5 mm
D1 3,5 mm
DIN Company standard
DIN Company standard
Form/Chamfer C
Form/Chamfer C
L 112 mm
L 112 mm
L1 6 mm
L1 6 mm
L2 18 mm
L2 18 mm
Max. thread depth 2,5xD
Max. thread depth 2,5xD
Pitch 0,5 mm
Pitch 0,5 mm
Tapping hole Ø 2,50 mm
Tapping hole Ø 2,50 mm
Thread M
Thread M
Thread angle 60 °
Thread angle 60 °
Threaded hole type Stud hole
Threaded hole type Stud hole
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps ISO 2 (6H)
Twist angle 40°
Twist angle 40°

Usage characteristics

cast iron GGG
cast iron GGG
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
