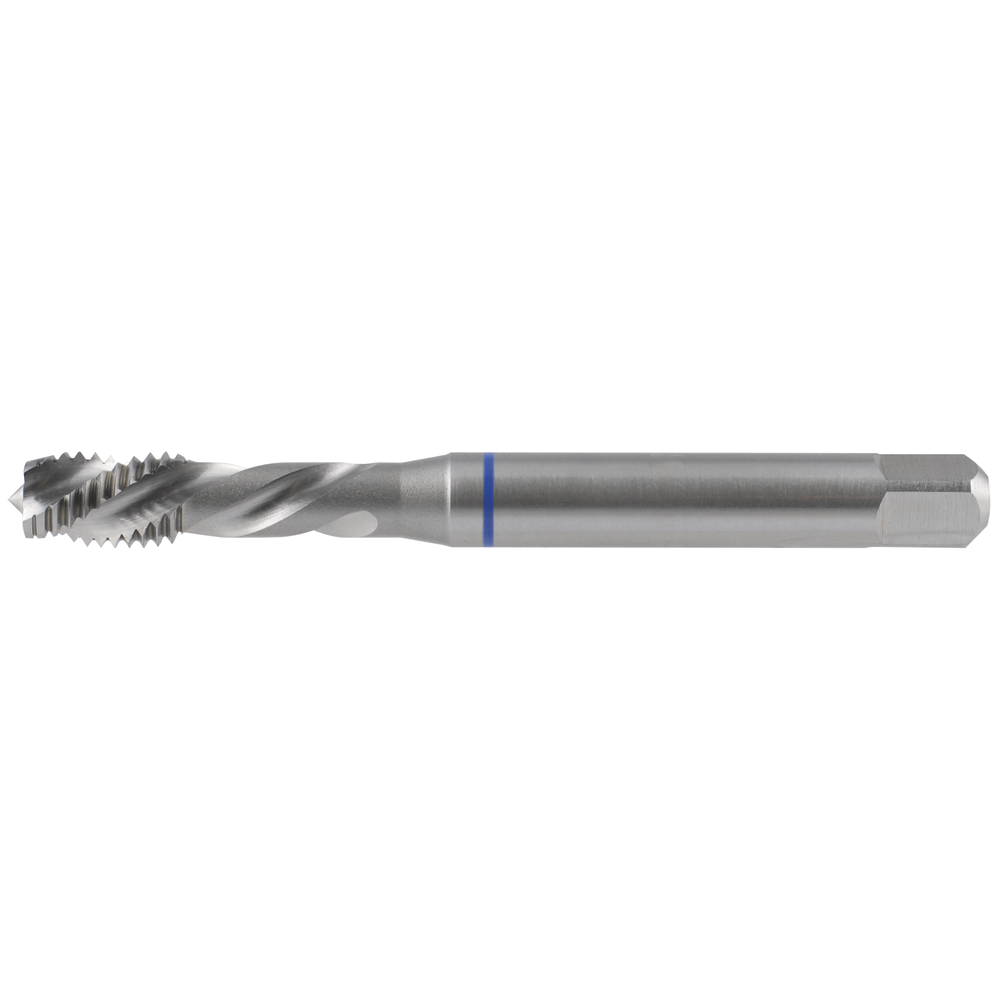

Machine tap HSS-E DIN371C 40° M3-LH blind-hole thread

Machine tap HSS-E DIN371C 40° M3-LH blind-hole thread
Machine tap HSS-E DIN371C 40° M3-LH blind-hole thread Machine tap HSS-E DIN371C 40° M3-LH blind-hole thread
Price:
51,20 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Left-hand thread machine tap
  • ISO 6H metric left-hand thread
  • 40°, spiral-fluted
  • Type C, 2-3 thread chamfer
  • DIN 371 construction dimensions = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E
  • For blind-hole threads
  • Strong chip removal to the rear for long-chipping materials
  • Minimal thread relief grinding
  • Possible thread depth 2.5 x D

Left-hand thread machine tap
  • ISO 6H metric left-hand thread
  • 40°, spiral-fluted
  • Type C, 2-3 thread chamfer
  • DIN 371 construction dimensions = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E
  • For blind-hole threads
  • Strong chip removal to the rear for long-chipping materials
  • Minimal thread relief grinding
  • Possible thread depth 2.5 x D

Article no./ATORN no.
1342150030 / 11290360
Packaging unit
1
Catalogue page
KS-0245
Cutting values
SW-0398

Technical characteristics

C 2,7 mm
C 2,7 mm
Coating uncoated
Coating uncoated
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
D M 3-LH mm
D M 3-LH mm
D1 3,5 mm
D1 3,5 mm
DIN 371
DIN 371
Form/Chamfer C
Form/Chamfer C
L 56 mm
L 56 mm
L1 6 mm
L1 6 mm
L2 18 mm
L2 18 mm
Max. thread depth 2,5xD
Max. thread depth 2,5xD
Pitch 0,5 mm
Pitch 0,5 mm
Tapping hole Ø 2,50 mm
Tapping hole Ø 2,50 mm
Thread M-L
Thread M-L
Thread angle 60 °
Thread angle 60 °
Threaded hole type Stud hole
Threaded hole type Stud hole
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps ISO 2 (6H)
Twist angle 40° (left)
Twist angle 40° (left)

Usage characteristics

cast iron GGG
cast iron GGG
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
