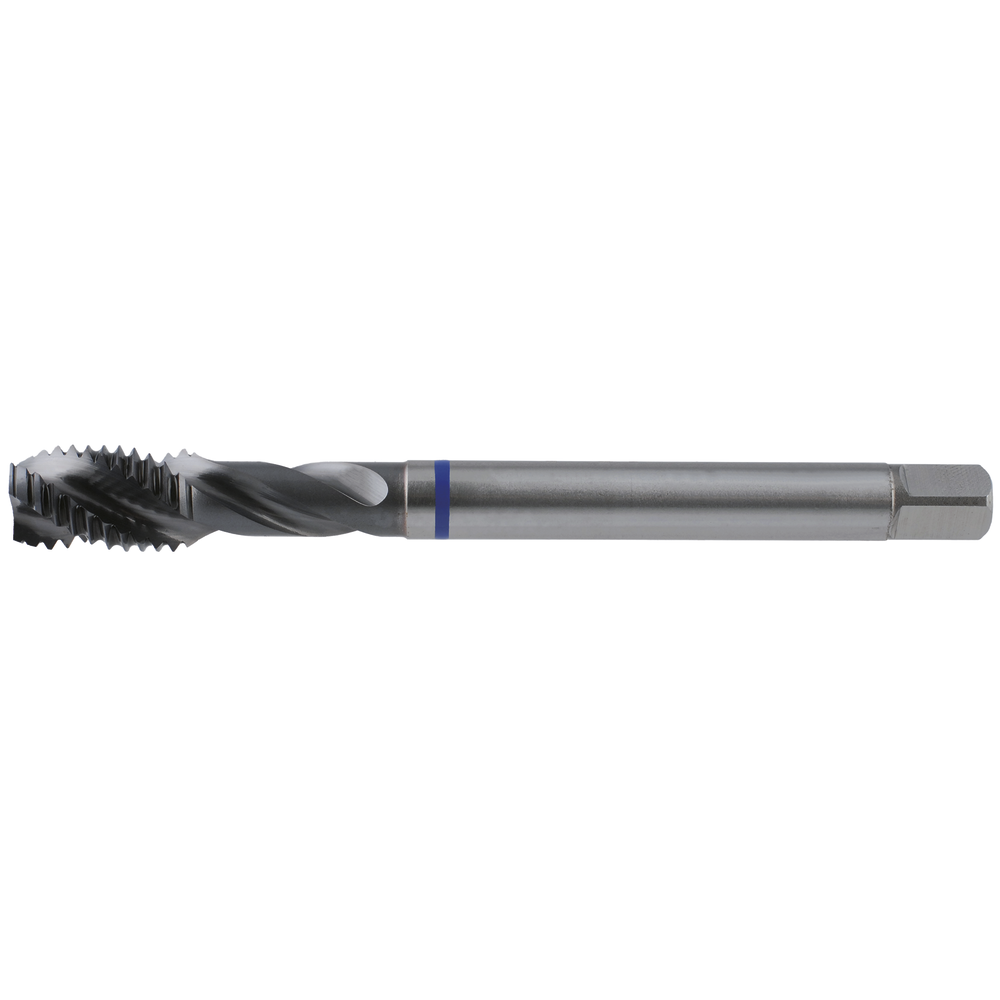

Machine tap HSS-E DIN371C 40° M2 blind-hole thread TiCN

Machine tap HSS-E DIN371C 40° M2 blind-hole thread TiCN
Machine tap HSS-E DIN371C 40° M2 blind-hole thread TiCN Machine tap HSS-E DIN371C 40° M2 blind-hole thread TiCN
Price:
31,50 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Up to 1000 N/mm²

Machine tap
  • ISO 6H metric thread
  • 40°, spiral-fluted
  • Type C, 2-3 thread chamfer
  • DIN 371 construction dimensions = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E, HSS-E TiN
  • For blind-hole threads
  • Strong chip removal to the rear for long-chipping materials
  • Minimal thread relief grinding
  • Possible thread depth 2.5 x D

Up to 1000 N/mm²

Machine tap
  • ISO 6H metric thread
  • 40°, spiral-fluted
  • Type C, 2-3 thread chamfer
  • DIN 371 construction dimensions = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E, HSS-E TiN
  • For blind-hole threads
  • Strong chip removal to the rear for long-chipping materials
  • Minimal thread relief grinding
  • Possible thread depth 2.5 x D

Article no./ATORN no.
1342100020 / 11290345
Packaging unit
1
Catalogue page

Technical characteristics

C 2,1 mm
C 2,1 mm
Coating TiCN
Coating TiCN
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
D M 2 mm
D M 2 mm
D1 2,8 mm
D1 2,8 mm
Design TiCN
Design TiCN
DIN 371
DIN 371
Form/Chamfer C
Form/Chamfer C 2 bis 3 Gang
Form/Chamfer C
Form/Chamfer C 2 bis 3 Gang
L 45 mm
L 45 mm
L1 8 mm
L1 8 mm
L2 - mm
L2 - mm
Max. thread depth 2,5xD
Max. thread depth Gewinde 2,5xD
Max. thread depth 2,5xD
Max. thread depth Gewinde 2,5xD
Pitch 0,4 mm
Pitch 0,4 mm
Tapping hole Ø 1,60 mm
Tapping hole Ø 1,60 mm
Thread M
Thread M
Thread angle 60 °
Thread angle 60 °
Threaded hole type für Grundgewinde
Threaded hole type für Grundgewinde
Tolerance of screw taps ISO 2 6H
Tolerance of screw taps ISO 2 6H
Twist angle 40°
Twist angle 40°

Usage characteristics

cast iron GGG
cast iron GGG
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
