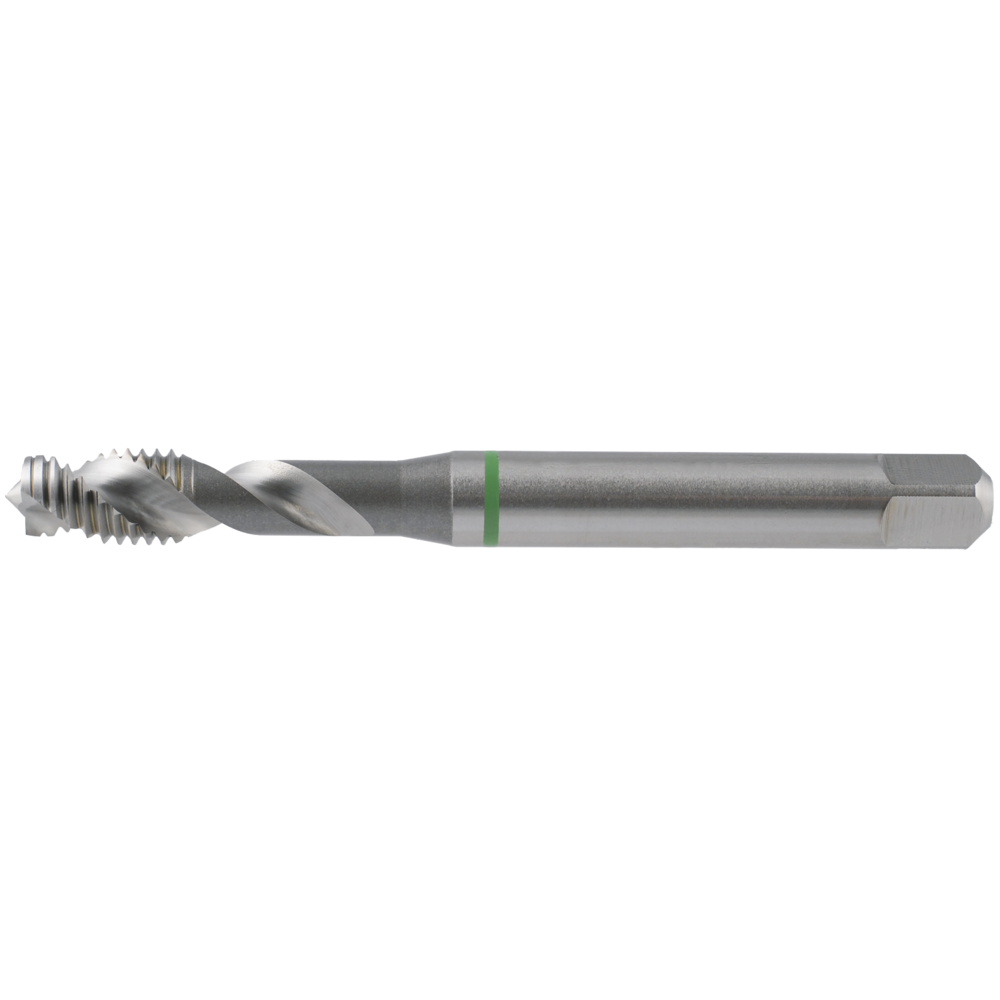

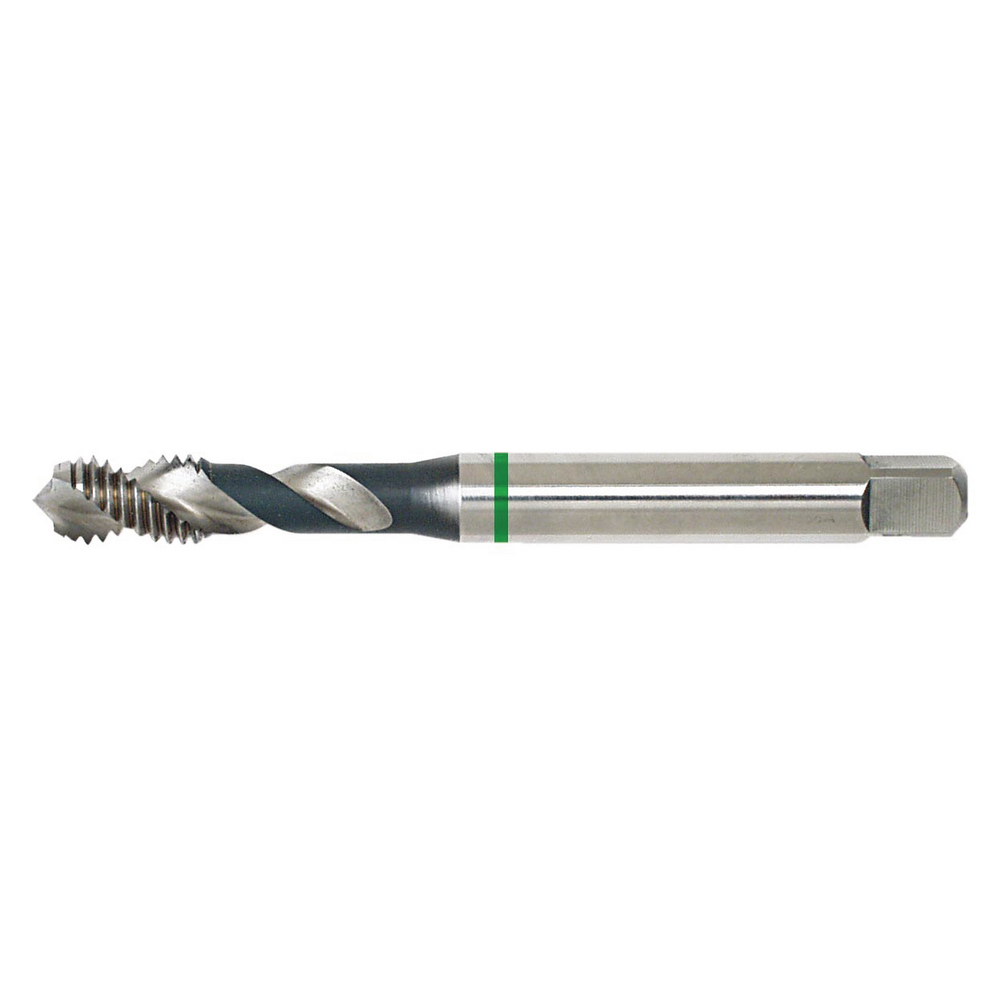

Machine tap HSS-E DIN371C 45°, M2 blind-hole thread with large chip space

Machine tap HSS-E DIN371C 45°, M2 blind-hole thread with large chip space
Machine tap HSS-E DIN371C 45°, M2 blind-hole thread with large chip space Machine tap HSS-E DIN371C 45°, M2 blind-hole thread with large chip space
Price:
25,40 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

For aluminium

Machine tap
  • ISO 6H metric thread
  • Type C, 2 to 3-thread chamfer, 45° spiral-fluted
  • DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E
  • For blind bore threads, with enlarged chip space
  • Possible thread depth 2.5 x D

For aluminium

Machine tap
  • ISO 6H metric thread
  • Type C, 2 to 3-thread chamfer, 45° spiral-fluted
  • DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E
  • For blind bore threads, with enlarged chip space
  • Possible thread depth 2.5 x D

Article no./ATORN no.
1341950020 / 11290295
Packaging unit
1
Catalogue page
KS-0249
Cutting values
SW-0398

Technical characteristics

C 2,1 mm
C 2,1 mm
Coating uncoated
Coating uncoated
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
D M 2 mm
D M 2 mm
D1 2,8 mm
D1 2,8 mm
DIN 371
DIN 371
Form/Chamfer C
Form/Chamfer C
L 45 mm
L 45 mm
L1 8 mm
L1 8 mm
L2 - mm
L2 - mm
Max. thread depth 2,5xD
Max. thread depth 2,5xD
Pitch 0,4 mm
Pitch 0,4 mm
Tapping hole Ø 1,60 mm
Tapping hole Ø 1,60 mm
Thread M
Thread M
Thread angle 60 °
Thread angle 60 °
Threaded hole type Stud hole
Threaded hole type Stud hole
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps ISO 2 (6H)
Twist angle 45°
Twist angle 45°

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass short
brass short

very suitable
suitable
