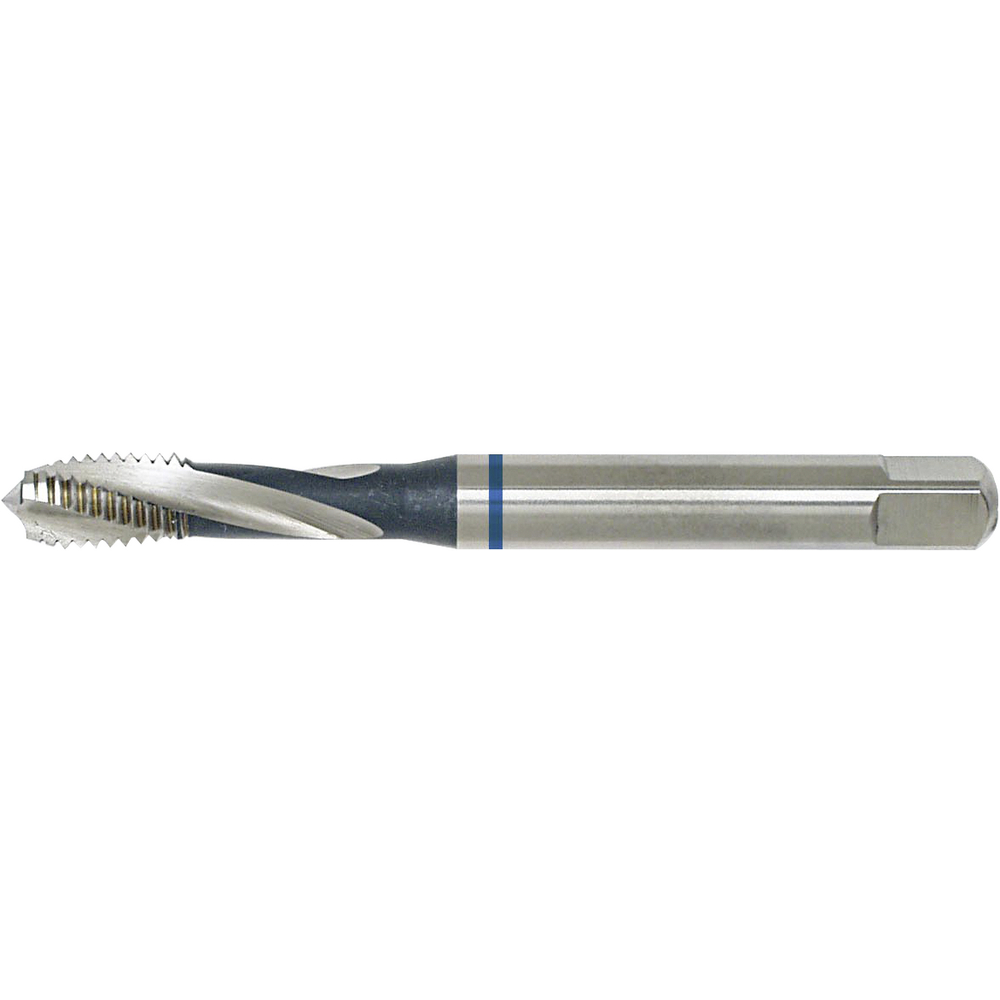

Machine tap HSS-E DIN371C 15° M2 blind-hole thread

Machine tap HSS-E DIN371C 15° M2 blind-hole thread
Machine tap HSS-E DIN371C 15° M2 blind-hole thread Machine tap HSS-E DIN371C 15° M2 blind-hole thread
Price:
30,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Up to 1000 N/mm²

Machine tap, weak-spiralled
  • ISO 6H metric thread
  • Type C, 2 to 3-thread chamfer, for blind-hole threads
  • DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E
  • Possible thread depth 2.5 x D

Up to 1000 N/mm²

Machine tap, weak-spiralled
  • ISO 6H metric thread
  • Type C, 2 to 3-thread chamfer, for blind-hole threads
  • DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E
  • Possible thread depth 2.5 x D

Article no./ATORN no.
1341750020 / 11290235
Packaging unit
1
Catalogue page

Technical characteristics

C 2,1 mm
C 2,1 mm
Coating uncoated
Coating uncoated
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
D M 2 mm
D M 2 mm
D1 2,8 mm
D1 2,8 mm
DIN 371
DIN 371
Form/Chamfer C
Form/Chamfer C
L 45 mm
L 45 mm
L1 8 mm
L1 8 mm
L2 - mm
L2 - mm
Max. thread depth 2,5xD
Max. thread depth 2,5xD
Pitch 0,4 mm
Pitch 0,4 mm
Tapping hole Ø 1,60 mm
Tapping hole Ø 1,60 mm
Thread M
Thread M
Thread angle 60 °
Thread angle 60 °
Threaded hole type Stud hole
Threaded hole type Stud hole
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps ISO 2 (6H)
Twist angle 15° (left)
Twist angle 15° (left)

Usage characteristics

cast iron GGG
cast iron GGG
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
