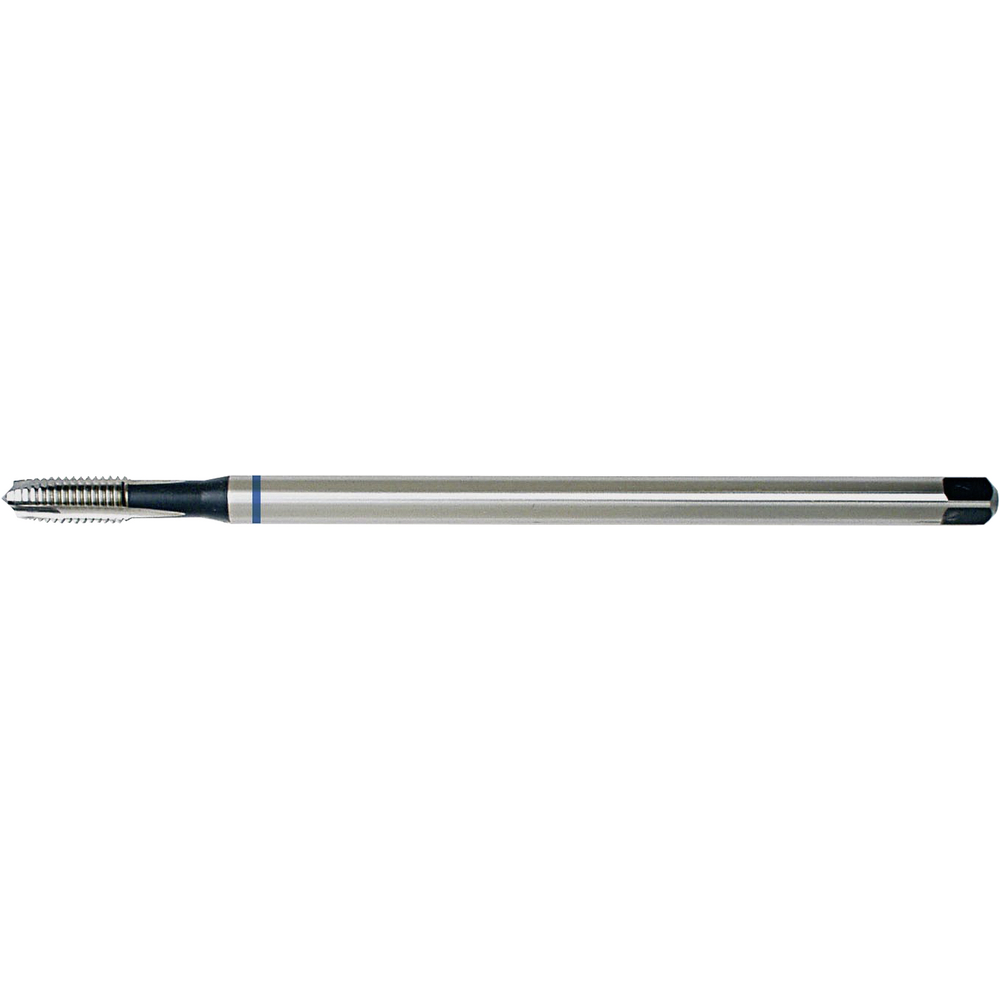

Machine tap HSS-E WN type B M4 through-hole long, L=126mm

Machine tap HSS-E WN type B M4 through-hole long, L=126mm
Machine tap HSS-E WN type B M4 through-hole long, L=126mm Machine tap HSS-E WN type B M4 through-hole long, L=126mm
Price
48,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 18:00 - delivered tomorrow.

Machine tap, long
  • ISO 6H metric thread
  • Straight-fluted with spiral point, type B, 3.5 to 5-thread chamfer
  • Constructional dimensions similar to DIN 371 = up to M 10, similar to DIN 376 = from M12
  • Cutting material: HSS-E
  • For through-hole threads
  • The spiral point ensures strong chip removal to the front
  • Possible thread depth 3 x D

Machine tap, long
  • ISO 6H metric thread
  • Straight-fluted with spiral point, type B, 3.5 to 5-thread chamfer
  • Constructional dimensions similar to DIN 371 = up to M 10, similar to DIN 376 = from M12
  • Cutting material: HSS-E
  • For through-hole threads
  • The spiral point ensures strong chip removal to the front
  • Possible thread depth 3 x D

Article no./ATORN no.
1341250040 / 11290101
Packaging unit
1
Catalogue page

Technical characteristics

C 3,4 mm
C 3,4 mm
Coating uncoated
Coating uncoated
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
D M 4 mm
D M 4 mm
D1 4,5 mm
D1 4,5 mm
DIN Company standard
DIN Company standard
Form/Chamfer B
Form/Chamfer B
L 126 mm
L 126 mm
L1 12 mm
L1 12 mm
L2 21 mm
L2 21 mm
Max. thread depth 3xD
Max. thread depth 3xD
Pitch 0,7 mm
Pitch 0,7 mm
Tapping hole Ø 3,30 mm
Tapping hole Ø 3,30 mm
Thread M
Thread M
Thread angle 60 °
Thread angle 60 °
Threaded hole type Pass-through hole
Threaded hole type Pass-through hole
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps ISO 2 (6H)
Twist angle 0°
Twist angle 0°

Usage characteristics

cast iron GGG
cast iron GGG
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
Cutting values Download
Cutting values Download
