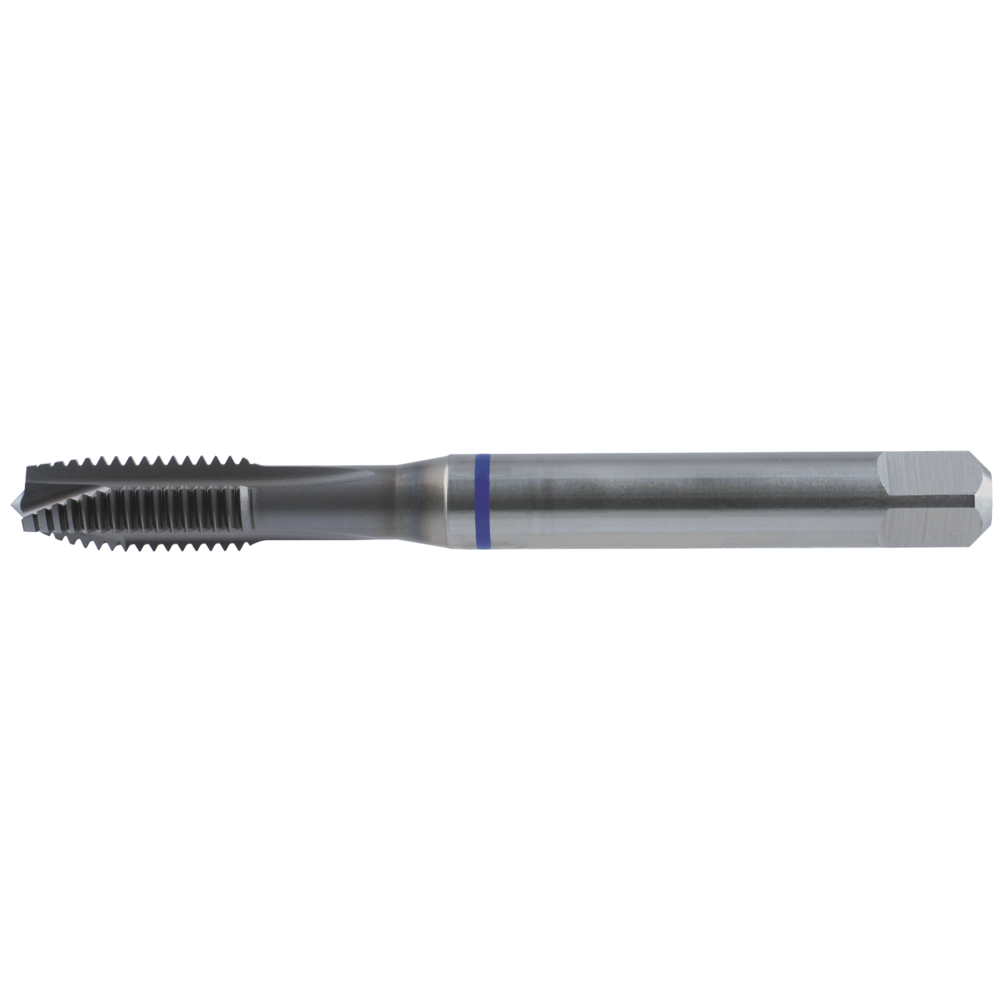

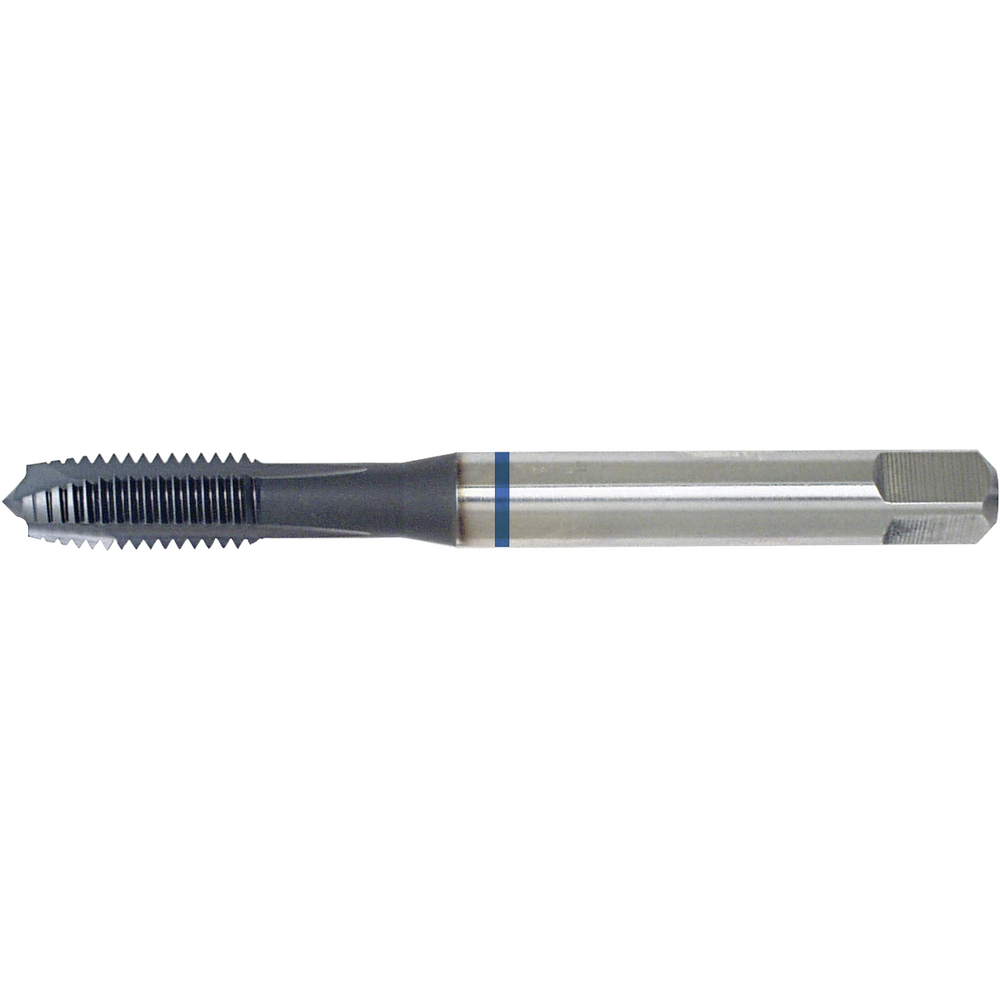

Machine tap HSS-E DIN371B M3 through-hole TiCN

Machine tap HSS-E DIN371B M3 through-hole TiCN
Machine tap HSS-E DIN371B M3 through-hole TiCN Machine tap HSS-E DIN371B M3 through-hole TiCN
Individual price after or registration
prices excl. vat plus shipping costs

Stock status
Only 1 pieces left!
Tool Finder

_ItemDeliveryInfoSaratools missing

Up to 1000 N/mm2

Machine tap
  • ISO 6H metric thread
  • Straight-fluted with spiral point, type B, 3.5 to 5-thread chamfer
  • DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E, HSS-E TiN
  • The spiral point ensures strong chip removal to the front
  • Possible thread depth 3 x D

Article no./ATORN no.
1341150030 / 11290060
Packaging unit
1
Catalogue page

Technical characteristics

C 2.7 mm
Coating TiCN
Cutting data Cutting angle Information - yes
Cutting material HSSE
D M 3 mm
D1 3.5 mm
Design TiCN
DIN 371
Form/Chamfer B
L 56 mm
L1 10 mm
L2 18 mm
Max. thread depth 3xD
Pitch 0.5 mm
Tapping hole Ø 2.50 mm
Thread M
Thread angle 60 °
Threaded hole type Pass-through hole
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps 6H
Twist angle 0°

Usage characteristics

steel < 1000 N/mm²
steel < 700 N/mm²

very suitable
suitable
