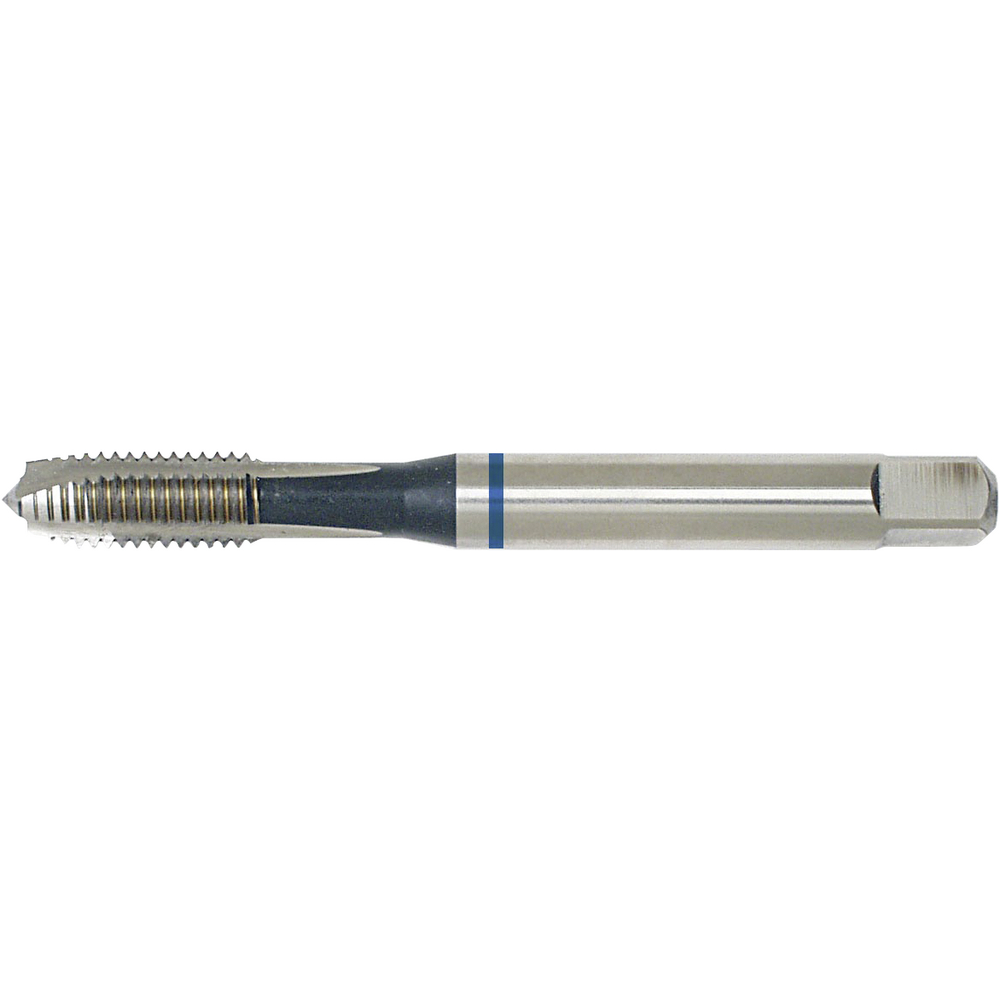

Machine tap HSS-E DIN371B M2 through-hole

Machine tap HSS-E DIN371B M2 through-hole
Machine tap HSS-E DIN371B M2 through-hole Machine tap HSS-E DIN371B M2 through-hole
Price
21,90 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Up to 1000 N/mm2

Machine tap
  • ISO 6H metric thread
  • Straight-fluted with spiral point, type B, 3.5 to 5-thread chamfer
  • DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E, HSS-E TiN
  • The spiral point ensures strong chip removal to the front
  • Possible thread depth 3 x D

Article no./ATORN no.
1341050020 / 11290015
Packaging unit
1
Catalogue page
Cutting values
SW-0401

Technical characteristics

C 2,1 mm
Coating uncoated
Cutting data Cutting angle Information - yes
Cutting material HSSE
D M 2 mm
D1 2,8 mm
DIN 371
Form/Chamfer B
L 45 mm
L1 8 mm
L2 - mm
Max. thread depth 3xD
Pitch 0,4 mm
Tapping hole Ø 1,60 mm
Thread M
Thread angle 60 °
Threaded hole type Pass-through hole
Tolerance of screw taps ISO 2 (6H)
Twist angle 0°

Usage characteristics

cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 700 N/mm²

very suitable
suitable
