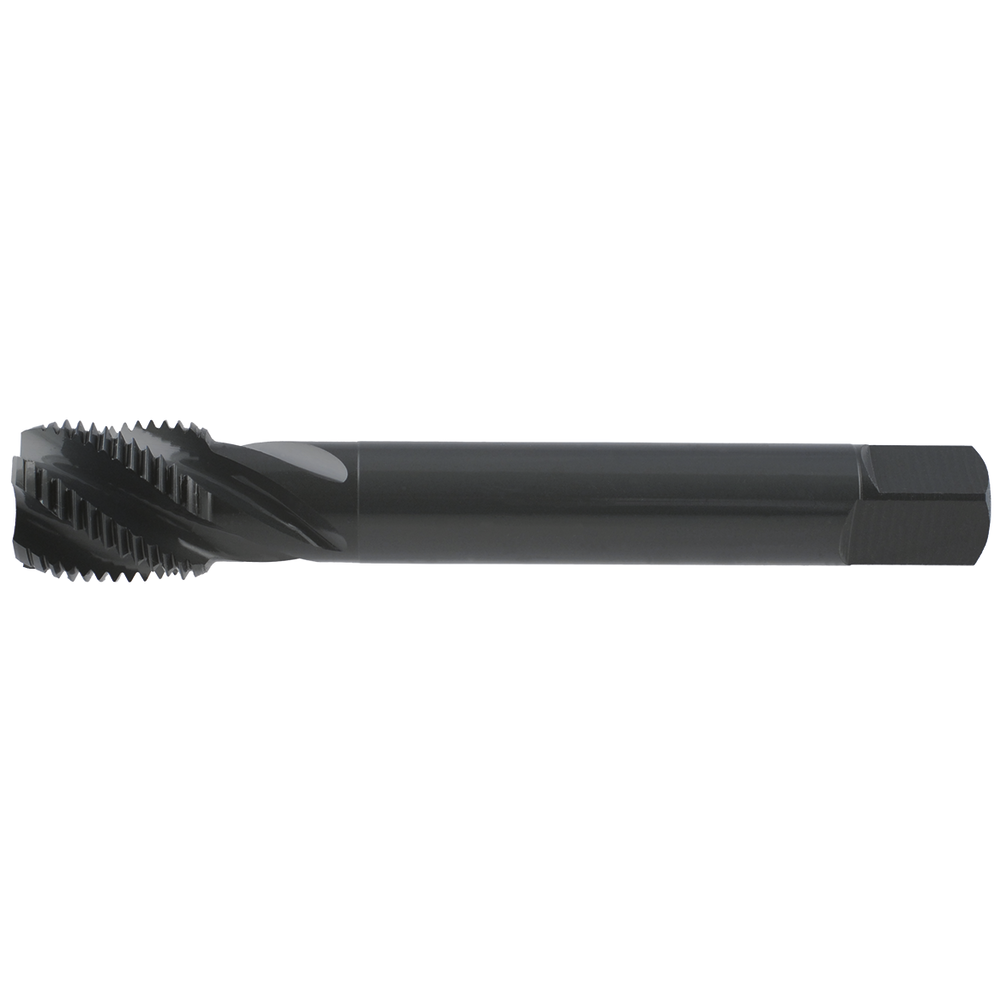

Machine tap HSS-E V3 VA-SFT DIN5156C, G 1/8" blind-hole thread 40° vap.

Machine tap HSS-E V3 VA-SFT DIN5156C, G 1/8" blind-hole thread 40° vap.
Machine tap HSS-E V3 VA-SFT DIN5156C, G 1/8" blind-hole thread 40° vap. Machine tap HSS-E V3 VA-SFT DIN5156C, G 1/8" blind-hole thread 40° vap.
Price:
44,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

For stainless steel

VA-SFT machine tap
  • Whitworth pipe thread, 55°, ISO 228
  • 40°, spiral-fluted
  • Type C, 2.5-thread chamfer
  • For blind-hole threads
  • Cutting material: HSS-E V3, vapour-treated

For stainless steel

VA-SFT machine tap
  • Whitworth pipe thread, 55°, ISO 228
  • 40°, spiral-fluted
  • Type C, 2.5-thread chamfer
  • For blind-hole threads
  • Cutting material: HSS-E V3, vapour-treated

Article no./ATORN no.
1339100001
Vendor Article no.
65881909
Packaging unit
1
Catalogue page

Technical characteristics

C 5,5 mm
C 5,5 mm
Coating uncoated
Coating uncoated
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE V3
Cutting material HSSE V3
D G 1/8
D G 1/8
D1 7 mm
D1 7 mm
DIN DIN 5156
Form/Chamfer C, 2.5-thread chamfer
Form/Chamfer C
L 90 mm
L 90 mm
L1 11 mm
L1 11 mm
Pitch 28 TPI
Pitch 28 TPI
Spiral angle 40° RH helix angle
Spiral angle 40° RH helix angle
Standard constructional dimensions DIN DIN 5156
Surface Vapour-treated
Surface Vaporisiert
Tapping hole Ø 8,8 mm
Tapping hole Ø 8,8 mm
Thread Straight pipe thread
Thread G
Thread Straight pipe thread
Thread angle 55° thread angle °
Thread angle 55 °
Thread angle 55° thread angle °
Thread depth 2.5xD thread
Threaded hole type for blind-hole threads
Threaded hole type Sackloch
Twist angle 40° (rechts)

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
brass short
copper Cu-alloy
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based < 30 HRC

very suitable
suitable
