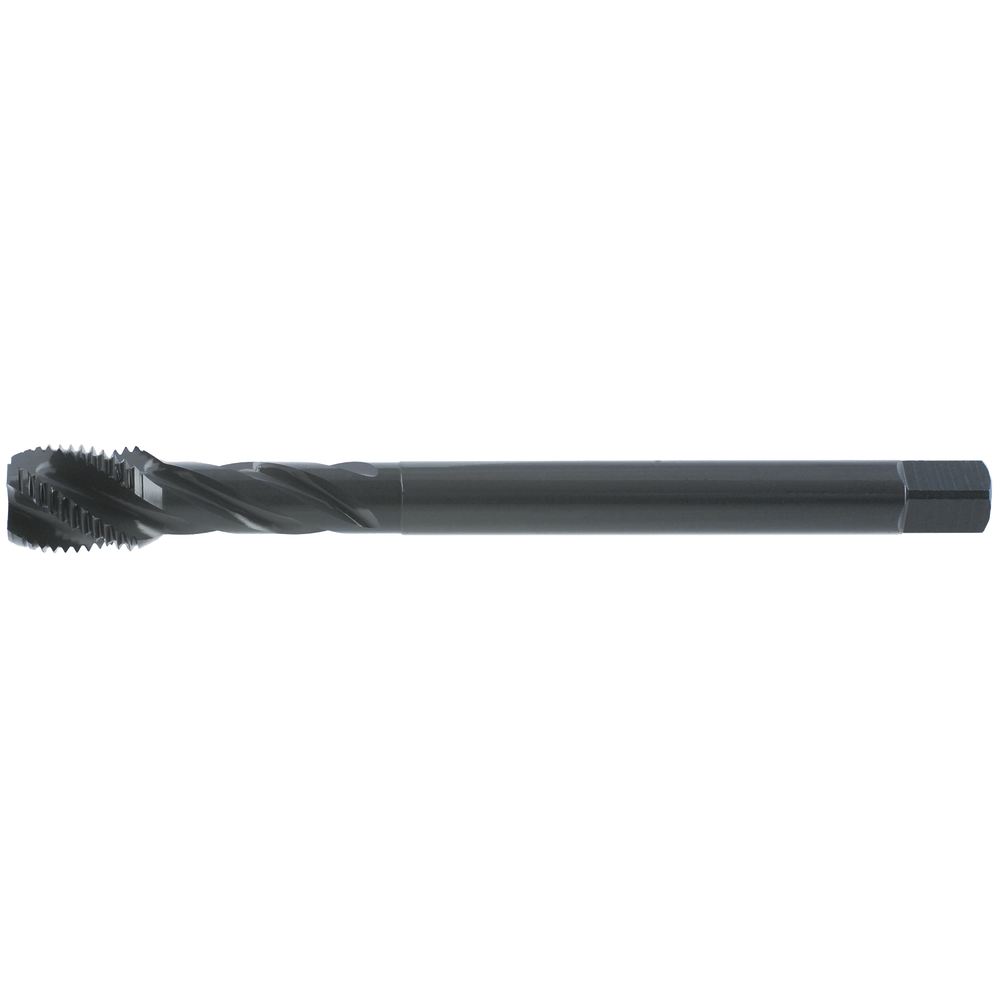

Machine tap HSS-E V3 VA-SFT DIN374C 40°, M3x0,35 blind-hole thread vap.

Machine tap HSS-E V3 VA-SFT DIN374C 40°, M3x0,35 blind-hole thread vap.
Machine tap HSS-E V3 VA-SFT DIN374C 40°, M3x0,35 blind-hole thread vap. Machine tap HSS-E V3 VA-SFT DIN374C 40°, M3x0,35 blind-hole thread vap.
Price:
27,75 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
VA-SFT machine tap
  • ISO 6H fine-pitch metric thread
  • 40° spiral-fluted with spiral point, type C, 2.5-thread chamfer
  • For blind-hole threads
  • Cutting material: HSS-E V3, vapour-treated

VA-SFT machine tap
  • ISO 6H fine-pitch metric thread
  • 40° spiral-fluted with spiral point, type C, 2.5-thread chamfer
  • For blind-hole threads
  • Cutting material: HSS-E V3, vapour-treated

Article no./ATORN no.
1335150303
Vendor Article no.
65513960
Packaging unit
1
Catalogue page

Technical characteristics

C - mm
C - mm
Coating uncoated
Coating uncoated
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE V3
Cutting material HSSE V3
D M 3 mm
D M 3 mm
D1 2,2 mm
D1 2,2 mm
DIN DIN 374
Form/Chamfer C, 2.5-thread chamfer
Form/Chamfer C
L 56 mm
L 56 mm
L1 4 mm
L1 4 mm
Pitch 0,35 mm
Pitch 0,35 mm
Spiral angle 40° RH helix angle
Spiral angle 40° RH helix angle
Standard constructional dimensions DIN DIN 374
Standard tolerance ISO 2 6H
Surface Vapour-treated
Surface Vaporisiert
Tapping hole Ø 2,7 mm
Tapping hole Ø 2,7 mm
Thread ISO fine-pitch metric thread
Thread ISO fine-pitch metric thread
Thread angle 60° thread angle °
Thread angle 60 °
Thread angle 60° thread angle °
Thread depth 2.5xD thread
Threaded hole type for blind-hole threads
Threaded hole type Sackloch
Tolerance of screw taps ISO 2 (6H)
Twist angle 40° (rechts)

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
brass short
copper Cu-alloy
stainless steel austenitic
stainless steel austenitic
stainless steel duplex
stainless steel duplex
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based < 30 HRC

very suitable
suitable
Catalogue page Download
Cutting values Download
Catalogue page Download
Cutting values Download
STEP Download
DXF Download
