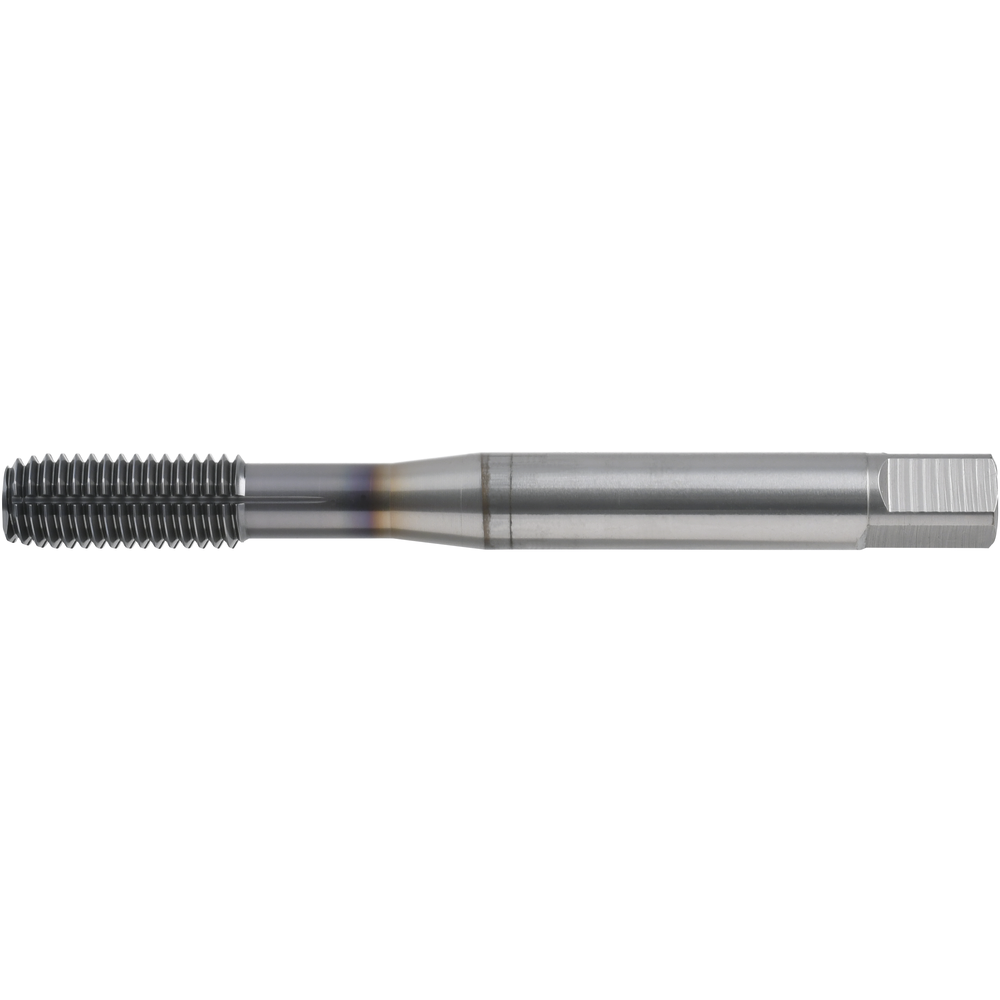

Maschinen-Gewindeformer HSS-E V3 V-NRT-B DIN371C, M1,4x0,30 6HX Grundloch TiCN

Maschinen-Gewindeformer HSS-E V3 V-NRT-B DIN371C, M1,4x0,30 6HX Grundloch TiCN
Maschinen-Gewindeformer HSS-E V3 V-NRT-B DIN371C, M1,4x0,30 6HX Grundloch TiCN Maschinen-Gewindeformer HSS-E V3 V-NRT-B DIN371C, M1,4x0,30 6HX Grundloch TiCN
Price:
52,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
V-NRT-B machine forming tap
  • Metric ISO 6HX thread
  • Type C, 2-thread chamfer
  • For blind-hole threads
  • Cutting material: HSS-E TiCN
  • Also available in Tolerance 6GX version

V-NRT-B machine forming tap
  • Metric ISO 6HX thread
  • Type C, 2-thread chamfer
  • For blind-hole threads
  • Cutting material: HSS-E TiCN
  • Also available in Tolerance 6GX version

Article no./ATORN no.
1333200014
Vendor Article no.
66711568
Packaging unit
1
Catalogue page

Technical characteristics

Coating TiCN
Coating TiCN
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
DIN DIN 371
Form/Chamfer C, 2-thread chamfer
Form/Chamfer C
Spiral angle Straight-fluted
Spiral angle Straight-fluted
Standard constructional dimensions DIN DIN 371
Standard tolerance ISO 2 6HX
Thread Metric thread
Thread Metric thread
Thread angle 60 °
Thread angle 60 °
Threaded hole type For blind-hole and through-hole threads
Threaded hole type Durchgangs-/Sackloch
Tolerance of screw taps ISO 2X (6HX)
Twist angle 0°

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GGG
cast iron GGG
copper Cu-alloy
stainless steel austenitic
stainless steel austenitic
stainless steel duplex
stainless steel duplex
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based < 30 HRC

very suitable
suitable
