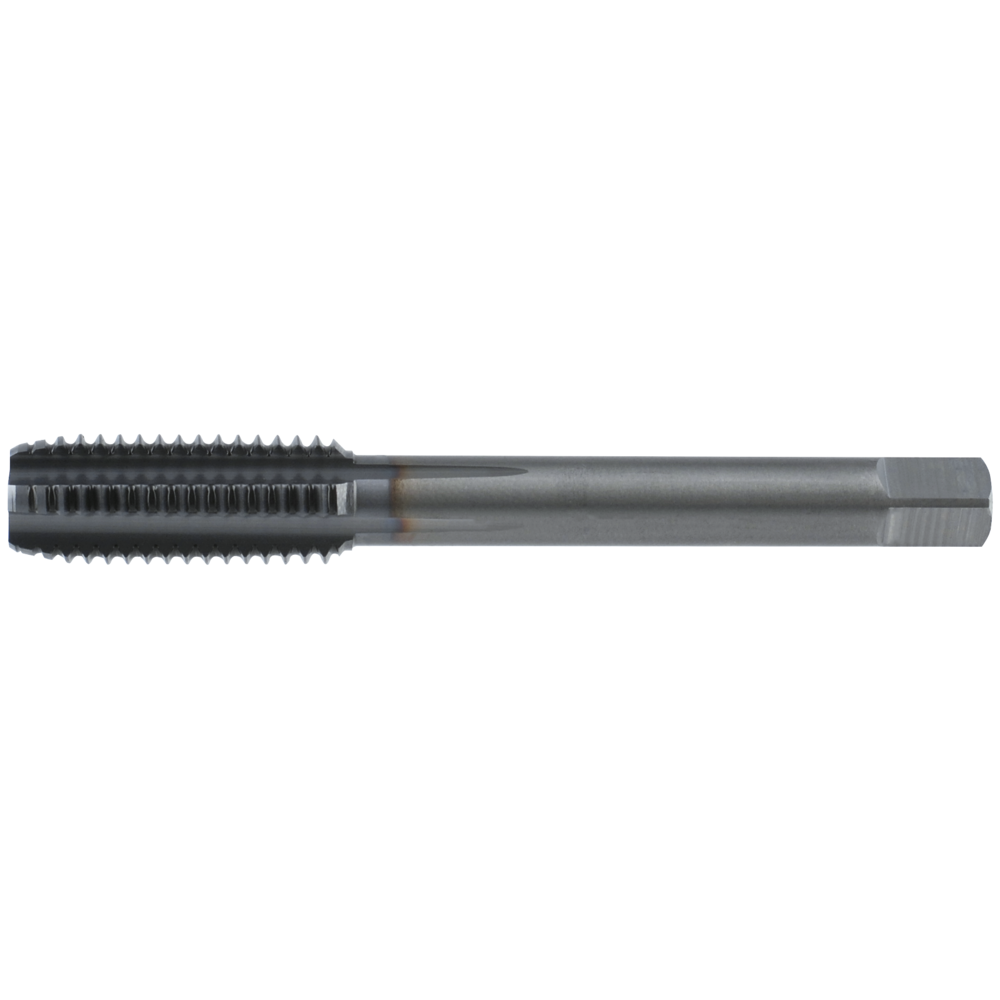

Solid carbide machine tap VX-OT WN type C, M3 blind/through-hole TiCN

Solid carbide machine tap VX-OT WN type C, M3 blind/through-hole TiCN
Solid carbide machine tap VX-OT WN type C, M3 blind/through-hole TiCN Solid carbide machine tap VX-OT WN type C, M3 blind/through-hole TiCN
Price:
119,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Hard machining = 60 HRC

VX-OT machine tap
  • ISO 6HX metric thread
  • Straight-fluted with spiral point
  • Type C, 2.5-thread chamfer
  • For blind-hole and through-hole threads
  • Cutting material: superfine grain solid carbide, TiCN-coated (V)

Hard machining ≥ 60 HRC

VX-OT machine tap
  • ISO 6HX metric thread
  • Straight-fluted with spiral point
  • Type C, 2.5-thread chamfer
  • For blind-hole and through-hole threads
  • Cutting material: superfine grain solid carbide, TiCN-coated (V)

Article no./ATORN no.
1332500030
Vendor Article no.
93413868
Packaging unit
1
Catalogue page
KS-0267
Cutting values
SW-0398

Technical characteristics

C 2,7 mm
C 2,7 mm
Coating TiCN
Coating TiCN
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
Cutting material Solid carbide
D M 3 mm
D M 3 mm
D1 3,5 mm
D1 3,5 mm
DIN ohne DIN
Form/Chamfer C, 2.5-thread chamfer
Form/Chamfer C
L 46 mm
L 46 mm
L1 11 mm
L1 11 mm
L2 19 mm
L2 19 mm
Pitch 0,5 mm
Pitch 0,5 mm
Spiral angle Straight-fluted
Standard constructional dimensions DIN Non-DIN
Standard tolerance ISO 2 6HX
Tapping hole Ø 2,5 mm
Tapping hole Ø 2,5 mm
Thread ISO metric thread
Thread ISO metric thread
Thread angle 60° thread angle °
Thread angle 60 °
Thread angle 60° thread angle °
Thread depth 1.5xD thread
Threaded hole type For blind-hole and through-hole threads
Threaded hole type Durchgangs-/Sackloch
Tolerance of screw taps ISO 2X (6HX)
Twist angle 0°

Usage characteristics

hardened steel < 60 HRc
hardened steel < 60 HRc
hardened steel ≤ 65 HRC
hardened steel ≥ 60 HRc

very suitable
suitable
