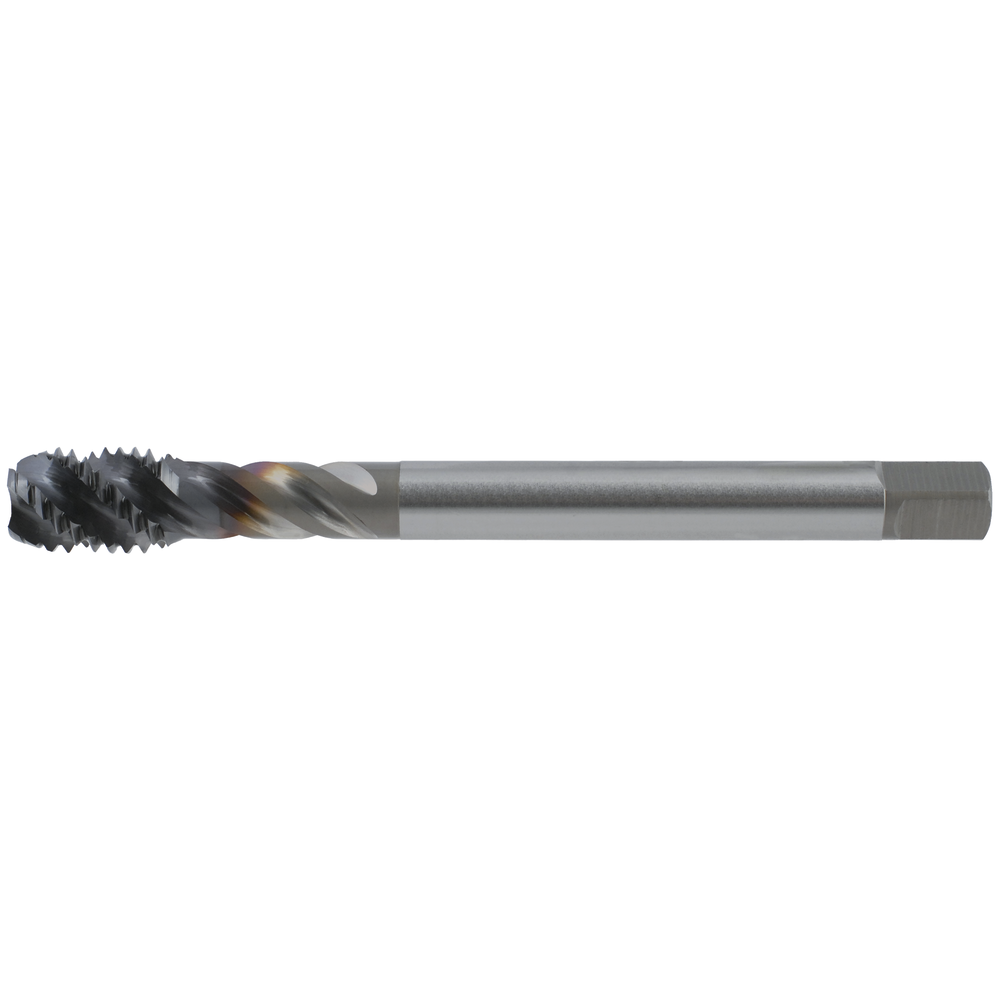

Machine tap HSS-E PM Z-SFT DIN376C, M12 blind-hole thread 50° TiCN

Machine tap HSS-E PM Z-SFT DIN376C, M12 blind-hole thread 50° TiCN
Machine tap HSS-E PM Z-SFT DIN376C, M12 blind-hole thread 50° TiCN Machine tap HSS-E PM Z-SFT DIN376C, M12 blind-hole thread 50° TiCN
Price:
63,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Synchronised machine tap Z-SFT
  • ISO 6H metric thread
  • 50°, spiral-fluted
  • Type C, 2.5-thread chamfer
  • For blind-hole threads
  • Coolant bore version available on request
  • Cutting material: PM powder (Co5 + V5), TiCN-coated (V)

DIN 376
Synchronised machine tap Z-SFT
  • ISO 6H metric thread
  • 50°, spiral-fluted
  • Type C, 2.5-thread chamfer
  • For blind-hole threads
  • Coolant bore version available on request
  • Cutting material: PM powder (Co5 + V5), TiCN-coated (V)

DIN 376
Article no./ATORN no.
1331600120
Vendor Article no.
80617968
Packaging unit
1
Catalogue page
KS-0266
Cutting values
SW-0398

Technical characteristics

C 7 mm
C 7 mm
Coating TiCN
Coating TiCN
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material PM
Cutting material PM
D M 12 mm
D M 12 mm
D1 9 mm
D1 9 mm
DIN DIN 376
Form/Chamfer C, 2.5-thread chamfer
Form/Chamfer C
L 110 mm
L 110 mm
L1 18 mm
L1 18 mm
L2 - mm
Pitch 1,75 mm
Pitch 1,75 mm
Spiral angle 50° RH helix angle
Spiral angle 50° RH helix angle
Standard constructional dimensions DIN DIN 376
Standard tolerance ISO 2 6H
Tapping hole Ø 10,25 mm
Tapping hole Ø 10,25 mm
Thread ISO metric thread
Thread ISO metric thread
Thread angle 60° thread angle °
Thread angle 60 °
Thread angle 60° thread angle °
Thread depth 2.5xD thread
Threaded hole type for blind-hole threads
Threaded hole type Sackloch
Tolerance of screw taps ISO 2 (6H)
Twist angle 50° (rechts)
Type Synchro
Type Synchro

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass short
copper Cu-alloy
stainless steel austenitic
stainless steel austenitic
stainless steel duplex
stainless steel duplex
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²
titanium alloys
titanium alloys

very suitable
suitable
