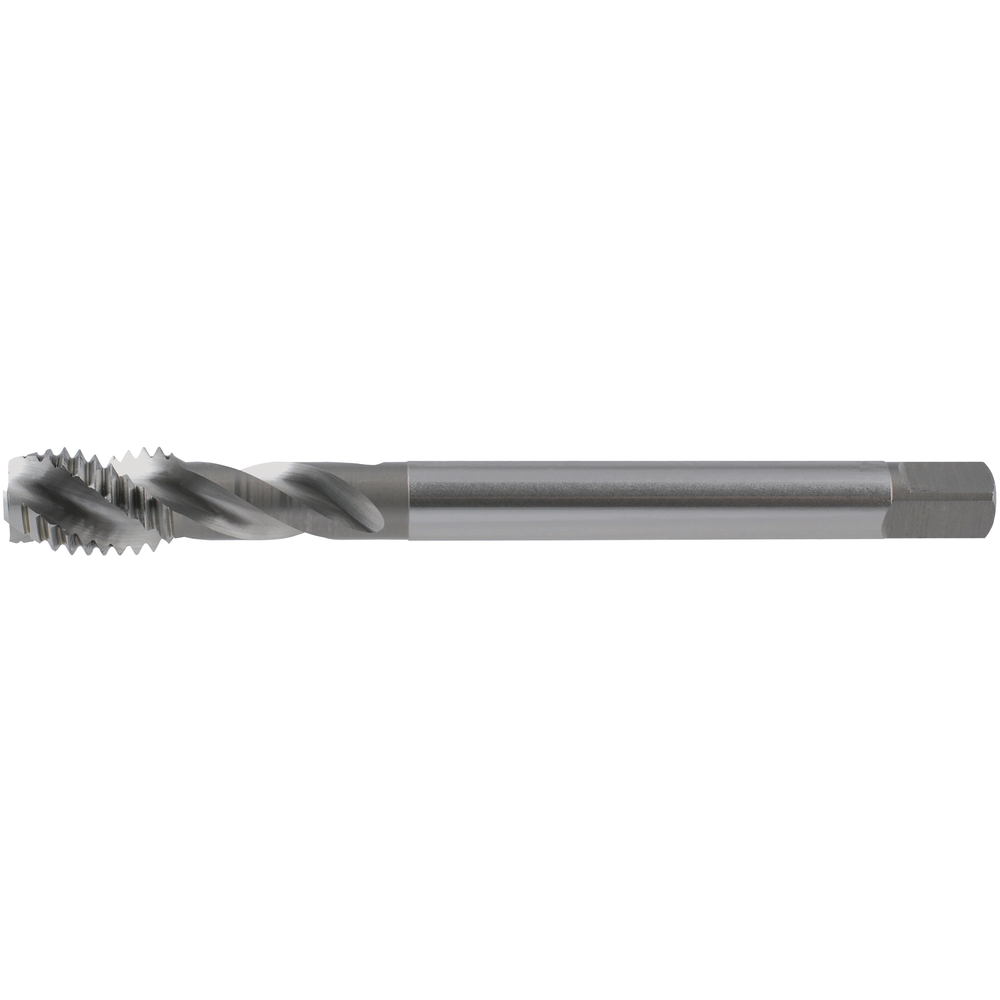

Machine tap HSS-E V3 SFT DIN376C, M3 blind-hole thread 40°

Machine tap HSS-E V3 SFT DIN376C, M3 blind-hole thread 40°
Machine tap HSS-E V3 SFT DIN376C, M3 blind-hole thread 40° Machine tap HSS-E V3 SFT DIN376C, M3 blind-hole thread 40°
Special offer:
11,44 €
(15,25 € catalogue price / 25% saved)
prices excl. vat plus shipping costs

Stock status
Only 6 pieces left!
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

SFT machine tap
  • ISO 6H metric thread
  • 40°, spiral-fluted
  • Type C, 2.5-thread chamfer
  • For blind-hole threads
  • Cutting material: HSS-E V3
  • Also available with TIN coating on request

DIN 376
SFT machine tap
  • ISO 6H metric thread
  • 40°, spiral-fluted
  • Type C, 2.5-thread chamfer
  • For blind-hole threads
  • Cutting material: HSS-E V3
  • Also available with TIN coating on request

DIN 376
Article no./ATORN no.
1331050030
Vendor Article no.
61413860
Packaging unit
1
Catalogue page

Technical characteristics

C - mm
C - mm
Coating uncoated
Coating uncoated
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE V3
Cutting material HSSE V3
D M 3 mm
D M 3 mm
D1 2,2 mm
D1 2,2 mm
DIN DIN 376
Form/Chamfer C, 2.5-thread chamfer
Form/Chamfer C
L 56 mm
L 56 mm
L1 5 mm
L1 5 mm
L2 - mm
Max. thread depth Gewinde 2,5xD
Pitch 0,5 mm
Pitch 0,5 mm
Spiral angle 40° RH helix angle
Spiral angle 40° RH helix angle
Standard constructional dimensions DIN DIN 376
Standard tolerance ISO 2 6H
Tapping hole Ø 2,50 mm
Tapping hole Ø 2,50 mm
Thread ISO metric thread
Thread ISO metric thread
Thread angle 60° thread angle °
Thread angle 60 °
Thread angle 60° thread angle °
Thread depth 2.5xD thread
Threaded hole type for blind-hole threads
Threaded hole type Sackloch
Tolerance of screw taps ISO 2 (6H)
Twist angle 40° (rechts)

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass short
copper Cu-alloy
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
