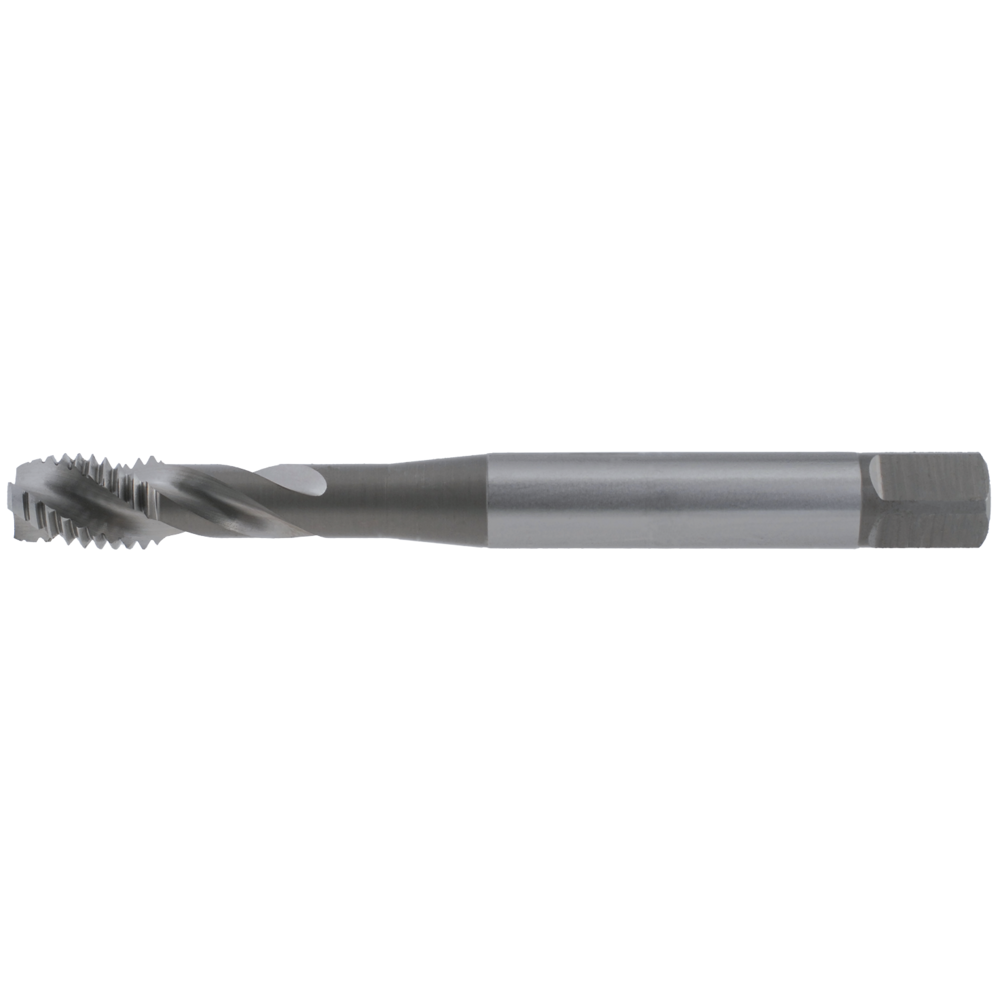

Machine tap HSS-E V3 SFT DIN371C 40°, M2 blind-hole thread

Machine tap HSS-E V3 SFT DIN371C 40°, M2 blind-hole thread
Machine tap HSS-E V3 SFT DIN371C 40°, M2 blind-hole thread Machine tap HSS-E V3 SFT DIN371C 40°, M2 blind-hole thread
Price:
19,25 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
SFT machine tap
  • ISO 6H metric thread
  • 40°, spiral-fluted
  • Type C, 2.5-thread chamfer
  • For blind-hole threads
  • Cutting material: HSS-E V3
  • Also available with TIN coating on request

DIN 371
SFT machine tap
  • ISO 6H metric thread
  • 40°, spiral-fluted
  • Type C, 2.5-thread chamfer
  • For blind-hole threads
  • Cutting material: HSS-E V3
  • Also available with TIN coating on request

DIN 371
Article no./ATORN no.
1331010020
Vendor Article no.
61312560
Packaging unit
1
Catalogue page

Technical characteristics

C 2,1 mm
C 2,1 mm
Coating uncoated
Coating uncoated
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE V3
Cutting material HSSE V3
D M 2 mm
D M 2 mm
D1 2,8 mm
D1 2,8 mm
DIN DIN 371
Form/Chamfer C, 2.5-thread chamfer
Form/Chamfer C
L 45 mm
L 45 mm
L1 8 mm
L1 8 mm
L2 - mm
L2 - mm
Pitch 0,4 mm
Pitch 0,4 mm
Spiral angle 40° RH helix angle
Spiral angle 40° RH helix angle
Standard constructional dimensions DIN DIN 371
Standard tolerance ISO 2 6H
Tapping hole Ø 1,60 mm
Tapping hole Ø 1,60 mm
Thread ISO metric thread
Thread ISO metric thread
Thread angle 60° thread angle °
Thread angle 60 °
Thread angle 60° thread angle °
Thread depth 2.5xD thread
Threaded hole type for blind-hole threads
Threaded hole type Sackloch
Tolerance of screw taps ISO 2 (6H)
Twist angle 40° (rechts)

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass short
copper Cu-alloy
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
Catalogue page Download
Cutting values Download
Catalogue page Download
Cutting values Download
STEP Download
DXF Download
