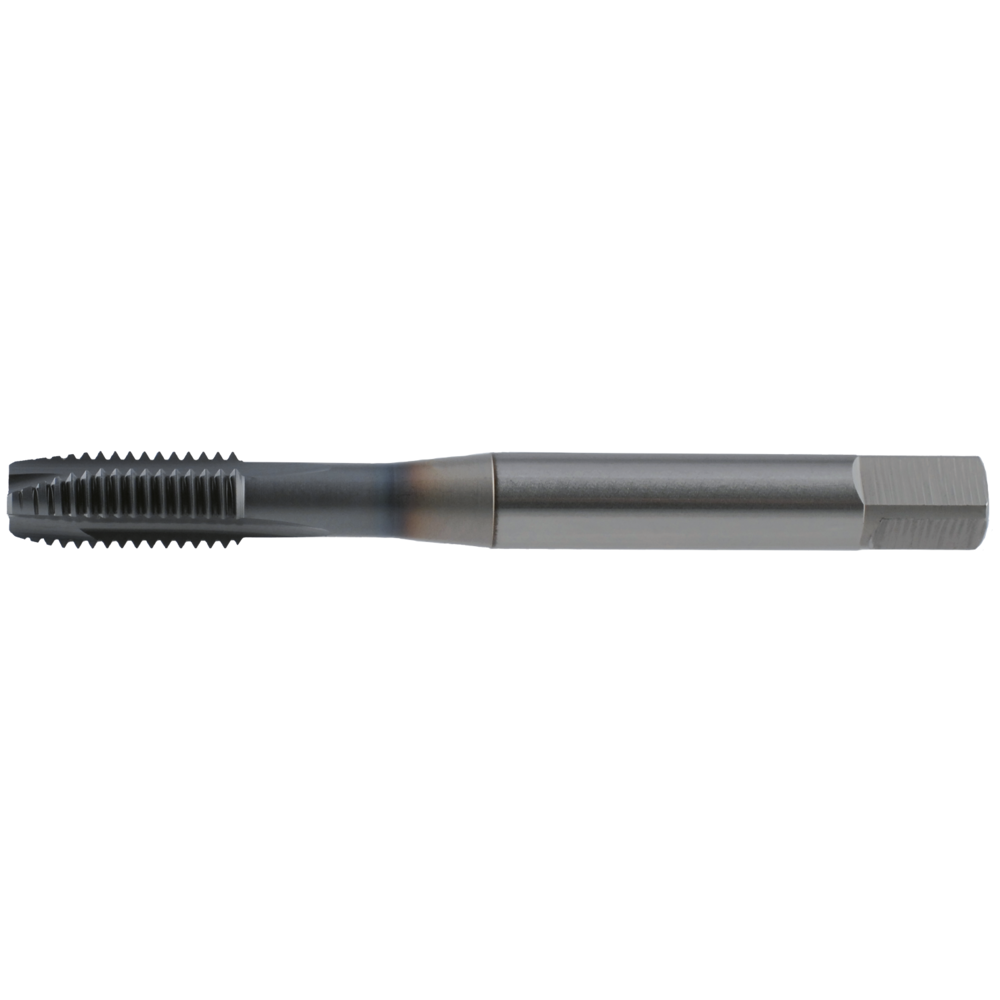

Machine tap HSS-E PM Z-POT DIN371B, M2 through-hole TiCN

Machine tap HSS-E PM Z-POT DIN371B, M2 through-hole TiCN
Machine tap HSS-E PM Z-POT DIN371B, M2 through-hole TiCN Machine tap HSS-E PM Z-POT DIN371B, M2 through-hole TiCN
Price
42,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Synchronised machine tap Z-POT
  • ISO 6HX metric thread
  • Straight-fluted with spiral point
  • Type B, 4-thread chamfer
  • For through-hole threads
  • Coolant bore version available on request
  • Cutting material: PM powder (Co5 + V5), TiCN-coated (V)

DIN 371
Article no./ATORN no.
1330450020
Vendor Article no.
83812568
Packaging unit
1
Alternative items
View alternative items
Catalogue page
KS-0262
Cutting values
KS-0262

Technical characteristics

C 2,1 mm
Coating TiCN
Cutting data Cutting angle Information - yes
Cutting material PM
D M 2 mm
D1 2,8 mm
DIN DIN 371
Form/Chamfer B, 4-thread chamfer
Form/Chamfer B
L 45 mm
L1 8 mm
L2 - mm
Pitch 0,4 mm
Spiral angle Evenly grooved shell section
Standard constructional dimensions DIN DIN 371
Standard tolerance ISO 2 6HX
Tapping hole Ø 1,6 mm
Thread ISO metric thread
Thread angle 60 °
Thread angle 60° thread angle °
Thread depth 2.5xD thread
Threaded hole type for through-hole threads
Threaded hole type Pass-through hole
Tolerance of screw taps ISO 2X (6HX)
Twist angle 0°
Type Synchro

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
copper Cu-alloy
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
titanium alloys

very suitable
suitable
Catalogue page Download
Cutting values Download
STEP Download
DXF Download
Catalogue page Download
Cutting values Download
