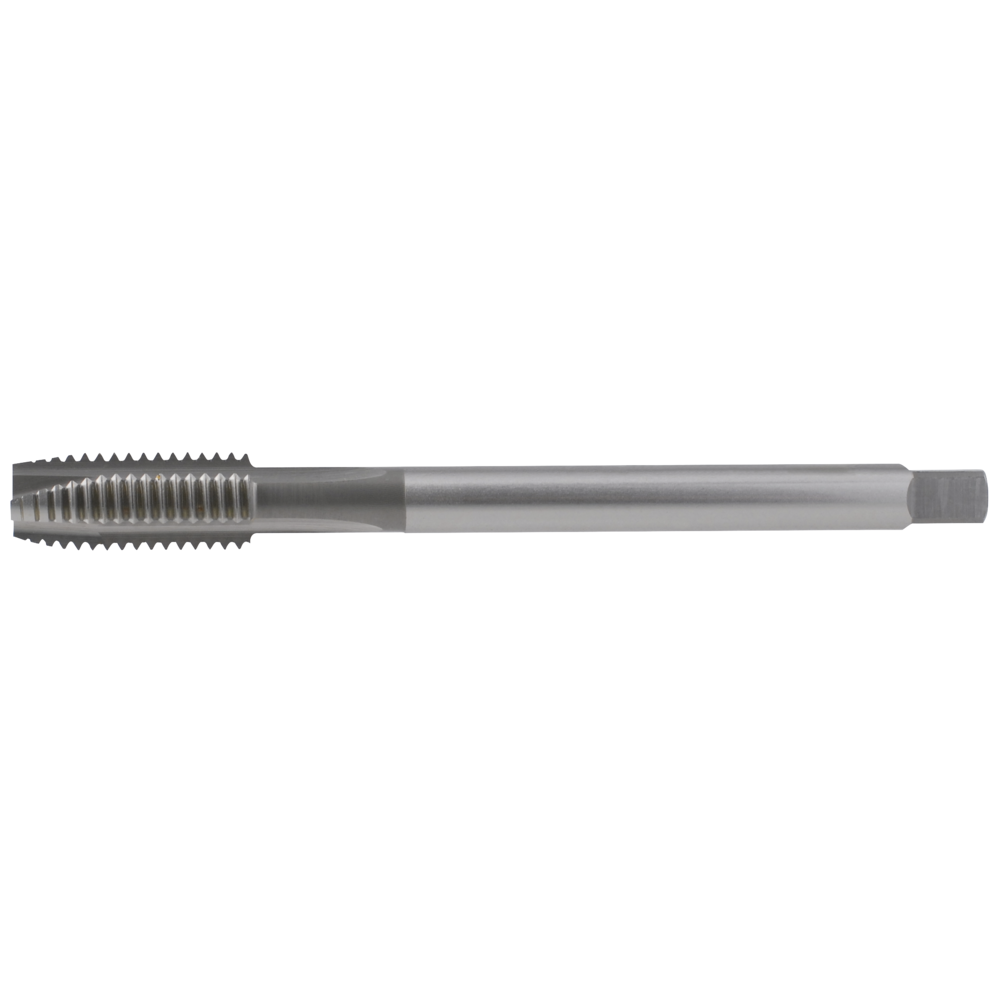

Machine tap HSS-E V3 POT DIN376C, M3 through-hole

Machine tap HSS-E V3 POT DIN376C, M3 through-hole
Machine tap HSS-E V3 POT DIN376C, M3 through-hole Machine tap HSS-E V3 POT DIN376C, M3 through-hole
Price:
14,25 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

POT machine tap
  • ISO 6H metric thread
  • Straight-fluted with spiral point
  • Type B, 3.5 to 5-thread chamfer
  • For through-hole threads
  • Cutting material: HSS-E V3
  • Also available with TiN coating on request

DIN 376
POT machine tap
  • ISO 6H metric thread
  • Straight-fluted with spiral point
  • Type B, 3.5 to 5-thread chamfer
  • For through-hole threads
  • Cutting material: HSS-E V3
  • Also available with TiN coating on request

DIN 376
Article no./ATORN no.
1330050030
Vendor Article no.
60813860
Packaging unit
1
Catalogue page

Technical characteristics

C - mm
C - mm
Coating uncoated
Coating uncoated
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE V3
Cutting material HSSE V3
D M 3 mm
D M 3 mm
D1 2,2 mm
D1 2,2 mm
DIN DIN 376
Form/Chamfer B, 3.5 to 5-thread chamfer
Form/Chamfer B
L 56 mm
L 56 mm
L1 11 mm
L1 11 mm
L2 - mm
Pitch 0,5 mm
Pitch 0,5 mm
Spiral angle Evenly grooved shell section
Spiral angle Evenly grooved shell section
Standard constructional dimensions DIN DIN 376
Standard tolerance ISO 2 6H
Tapping hole Ø 2,50 mm
Tapping hole Ø 2,50 mm
Thread M
Thread M
Thread angle 60° thread angle °
Thread angle 60 °
Thread angle 60° thread angle °
Thread depth 2.5xD thread
Threaded hole type for through-hole threads
Threaded hole type Durchgangsloch
Tolerance of screw taps ISO 2 (6H)
Twist angle 0°

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass short
copper Cu-alloy
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
