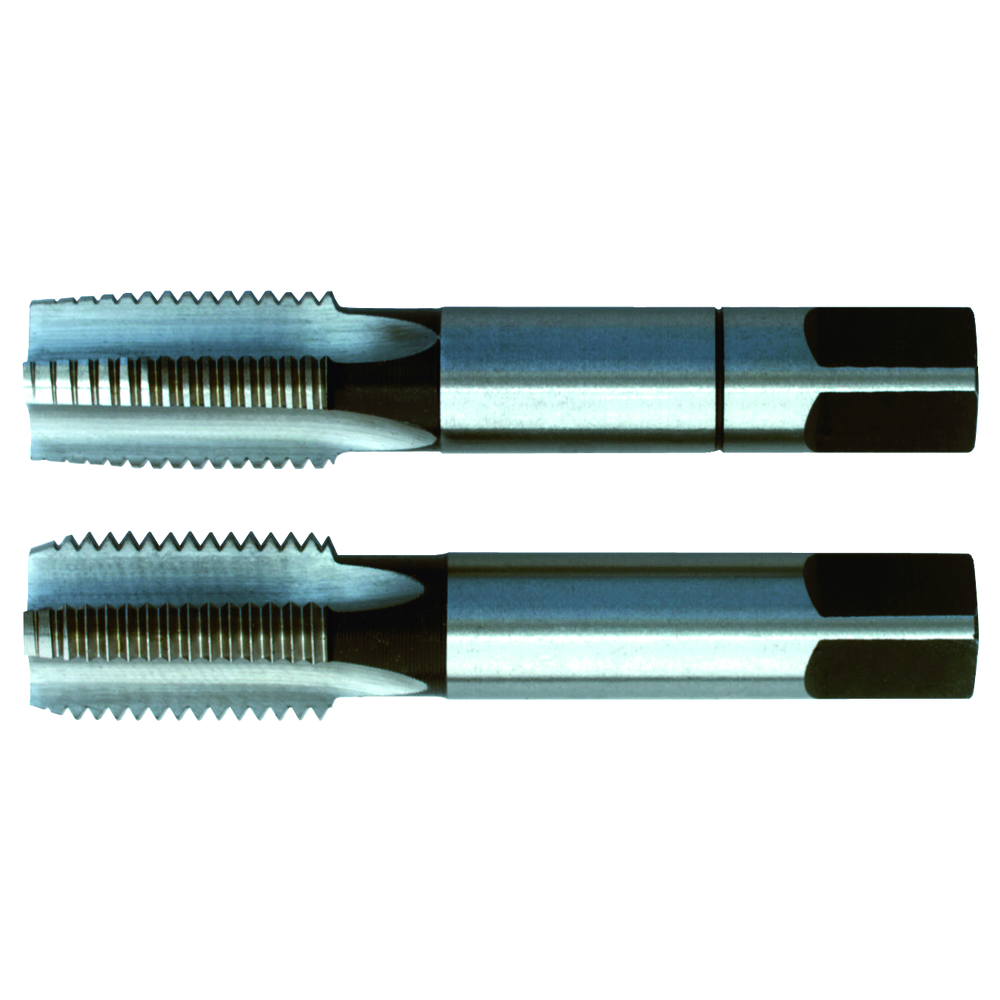

Hand tap HSS DIN2181 set M3x0,35 blind/through-hole

Hand tap HSS DIN2181 set M3x0,35 blind/through-hole
Hand tap HSS DIN2181 set M3x0,35 blind/through-hole Hand tap HSS DIN2181 set M3x0,35 blind/through-hole
Price:
24,10 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Hand taps
  • ISO 6H fine-pitch metric thread, DIN 13
  • 2 pcs set consisting of taper tap and bottom tap
  • Cutting material: HSS
  • For through-hole and blind bore threads
  • Individual taps available on request

Hand taps
  • ISO 6H fine-pitch metric thread, DIN 13
  • 2 pcs set consisting of taper tap and bottom tap
  • Cutting material: HSS
  • For through-hole and blind bore threads
  • Individual taps available on request

Article no./ATORN no.
1301050005
Packaging unit
1
Catalogue page
KS-0290

Technical characteristics

C 2,7 mm
C 2,7 mm
Coating uncoated
Coating uncoated
Cutting data Cutting angle Information - no
Cutting data Cutting angle Information - no
Cutting material HSS
Cutting material HSS
D M 3 mm
D M 3 mm
D1 3,5 mm
D1 3,5 mm
DIN 2181
DIN 2181
L 40 mm
L 40 mm
L1 9 mm
L1 9 mm
Pitch 0,35 mm
Pitch 0,35 mm
Thread MF
Thread MF
Thread angle 60 °
Thread angle 60 °
Threaded hole type Clearance/stud hole
Threaded hole type Clearance/stud hole
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps ISO 2 (6H)
Twist angle 0°
Twist angle 0°

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass short
brass short
cast iron GG/GTS
cast iron GG/GTS
cast iron GGG
cast iron GGG
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
