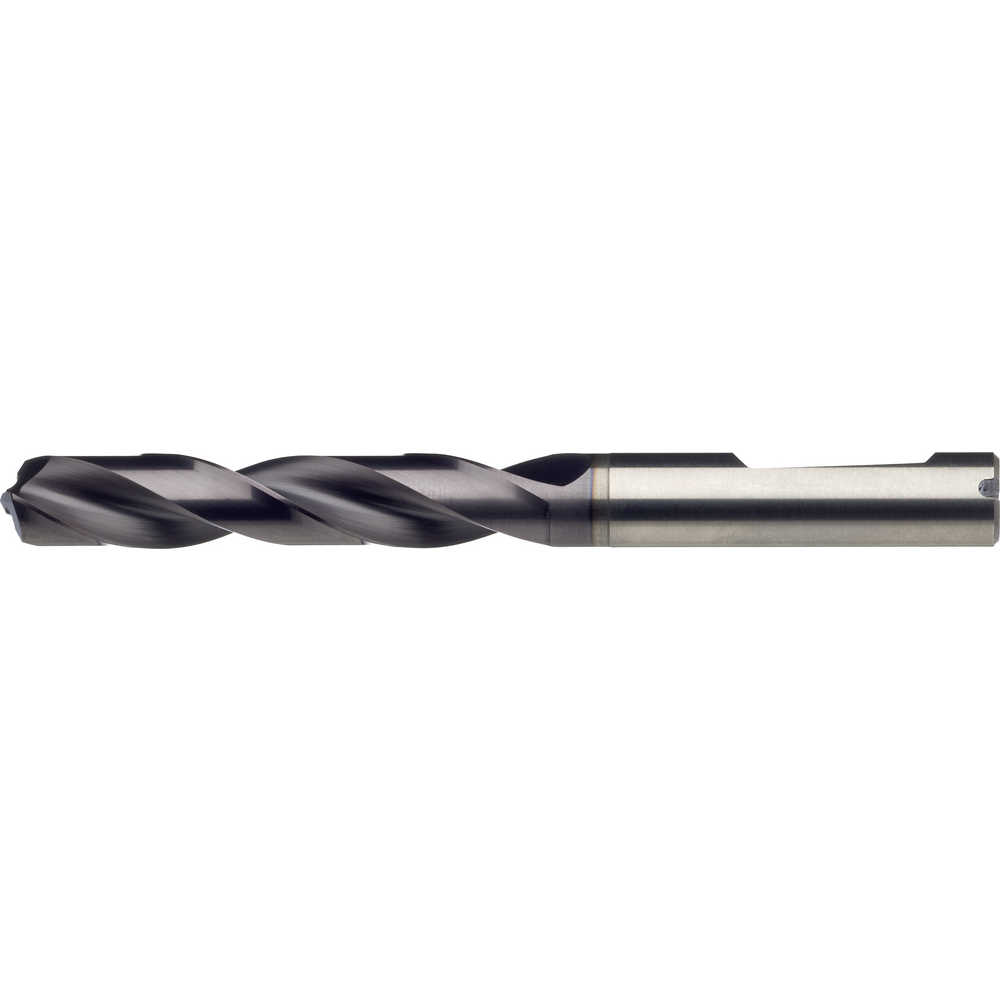

Solid carbide high-performance drill 5xD 5,6mm IC D1=HE TiAlN

Solid carbide high-performance drill 5xD 5,6mm IC D1=HE TiAlN
Solid carbide high-performance drill 5xD 5,6mm IC D1=HE TiAlN Solid carbide high-performance drill 5xD 5,6mm IC D1=HE TiAlN Solid carbide high-performance drill 5xD 5,6mm IC D1=HE TiAlN

We charge a material cost surcharge of 6,90% on this product.

Price
143,50 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Solid carbide high-performance drill bit
  • With optimised shank diameter tolerance for use as a holding fixture in power chucks and hydraulic expansion chucks
  • With coolant bore
  • Solid carbide cutting material: ultra-fine grain TiAlNplus and TiN
  • 2-facet grinding
  • True-running accuracy of the tool when clamped: max. 0.02 mm

Article no./ATORN no.
1115110056 / 10473682
Packaging unit
1
Catalogue page

Technical characteristics

Coating TiAlN
Coolant design Axial coolant supply
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D m7 5,60 mm
D1 h6 6 mm
Design TiAlN, HE
Drilling depth 5xD
Feed f steel < 1000 N/mm² 0,20 mm/rev
L 82 mm
L1 44 mm
L3 35 mm
Point angle Point angle 140°
Section shape Split point
Shank Straight with driving plane, DIN 6535 HE
Spiral angle 30° RH helix angle
Standard constructional dimensions DIN DIN 6537
Type Type U

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
copper Cu-alloy
hardened steel < 55 HRc
hardened steel < 60 HRc
hardened steel ≥ 60 HRc
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
