Hochleistungsbohrer VHM 5xD 2,80mm IK D1=HA TiAlN

Hochleistungsbohrer VHM 5xD 2,80mm IK D1=HA TiAlN
Hochleistungsbohrer VHM 5xD 2,80mm IK D1=HA TiAlN Hochleistungsbohrer VHM 5xD 2,80mm IK D1=HA TiAlN Hochleistungsbohrer VHM 5xD 2,80mm IK D1=HA TiAlN
Price:
48,60 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

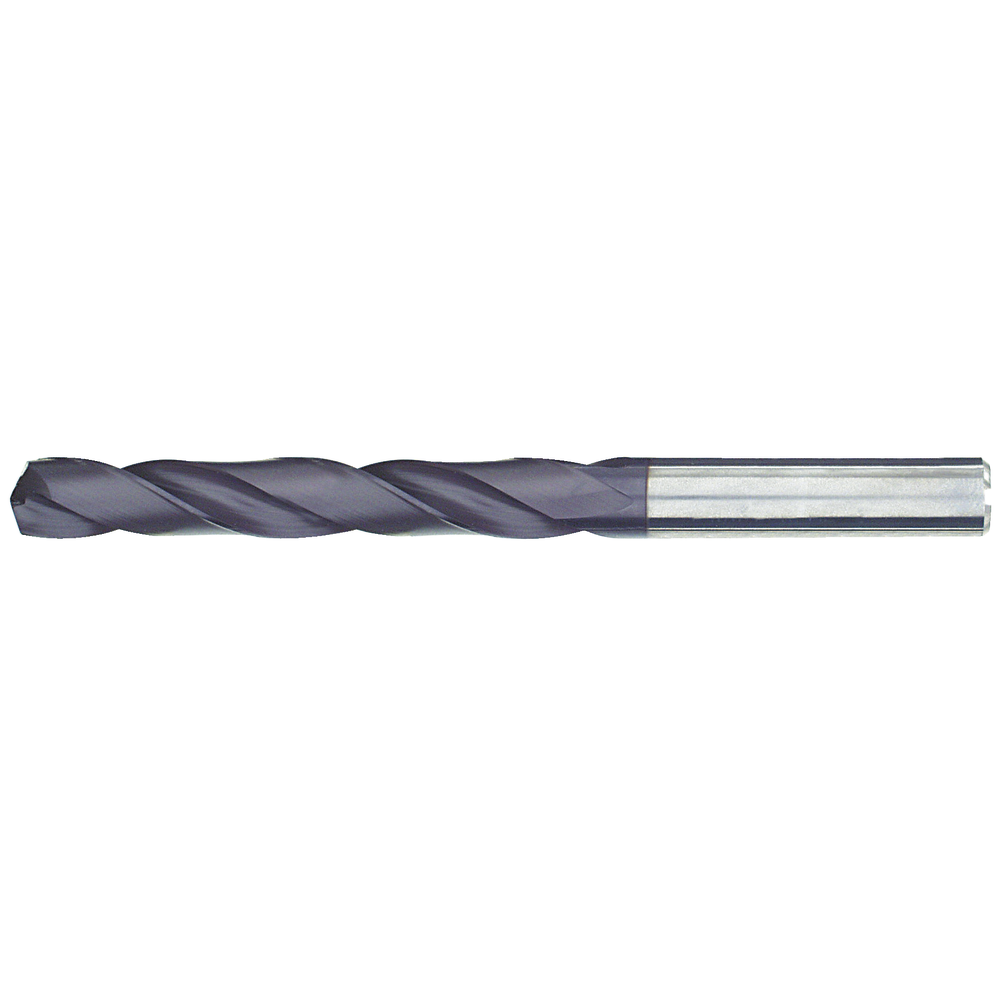

Solid carbide high-performance drill bit
  • With optimised shank diameter tolerance for use as a holding fixture in power chucks and hydraulic expansion chucks
  • With coolant bore
  • Solid carbide cutting material: ultra-fine grain TiAlNplus and TiN
  • 2-facet grinding
  • True-running accuracy of the tool when clamped: max. 0.02 mm

Article no./ATORN no.
1015++1144
Packaging unit
1
Catalogue page
SKB

Technical characteristics

Coating TiAlNplus
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
Point angle Point angle 140°
Section shape Split point
Shank Straight, DIN 6535 HA
Standard constructional dimensions DIN DIN 6537

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
hardened steel < 60 HRc
hardened steel ≤ 55 HRC
hardened steel ≤ 65 HRC
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
