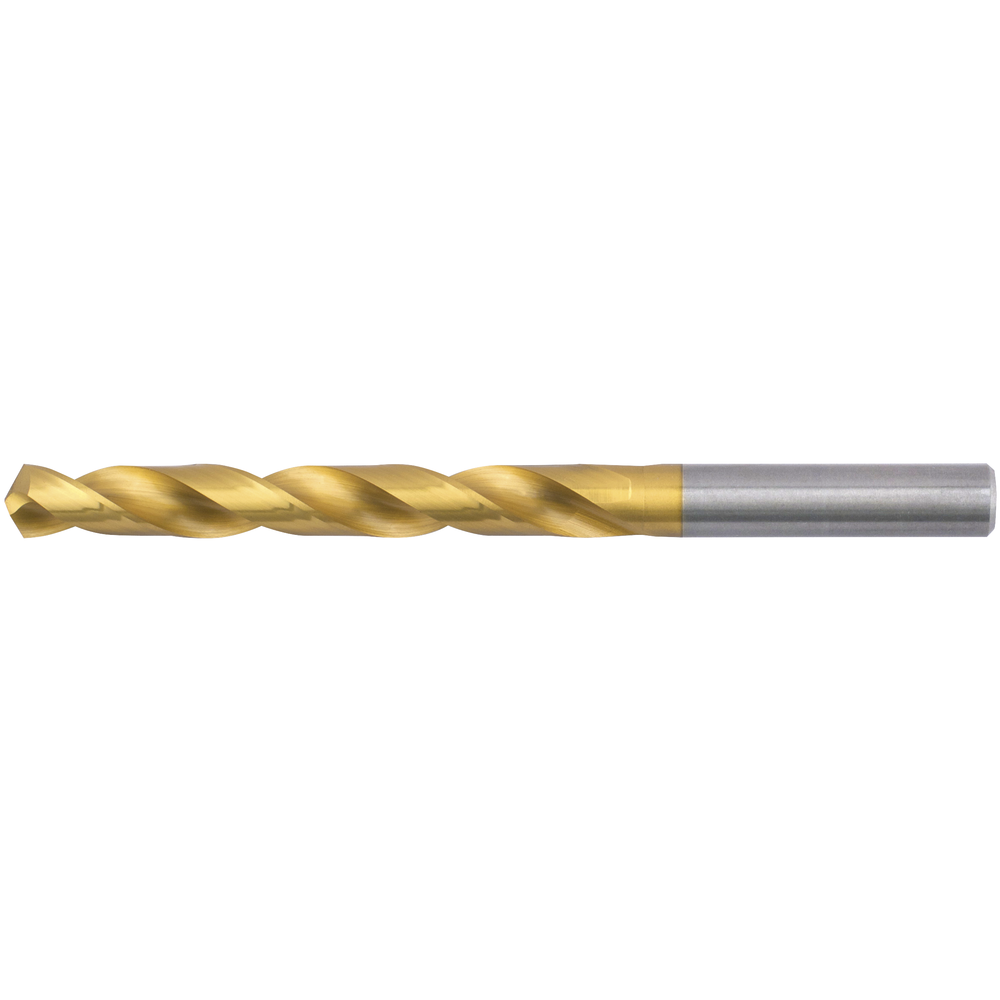

Solid carbide twist drill 5xD DIN338N 1mm TiN

Solid carbide twist drill 5xD DIN338N 1mm TiN
Solid carbide twist drill 5xD DIN338N 1mm TiN Solid carbide twist drill 5xD DIN338N 1mm TiN

We charge a material cost surcharge of 6,90% on this product.

Price
12,95 €
prices excl. vat plus shipping costs

Stock status
2 immediately available
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

Solid carbide twist drill, TiN-coated
  • Similar to DIN 338
  • Facet-ground, point thinning from ∅ 2.0 mm
  • Cutting material VHM, TiN coating

Article no./ATORN no.
1110110100 / 10473006
Packaging unit
10
Catalogue page

Technical characteristics

Angle of the tip - S 118 °
Coating TiN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 1 mm
DIN 338
Feed f steel < 1000 N/mm² 0,02 mm/rev
L 34 mm
L1 12 mm
Max. drilling depth (D) 5xD
S 118 °
Section shape Split point
Tolerance of cutting edge diameter h7
Tolerance of shank diameter h6
Tool holding device HA parallel shank
Twist angle 32° (right)
Type N

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GG/GTS
cast iron GGG
hardened steel ≤ 55 HRC
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
titanium alloys

very suitable
suitable
Cutting values Download
STEP Download
DXF Download
Cutting values Download
