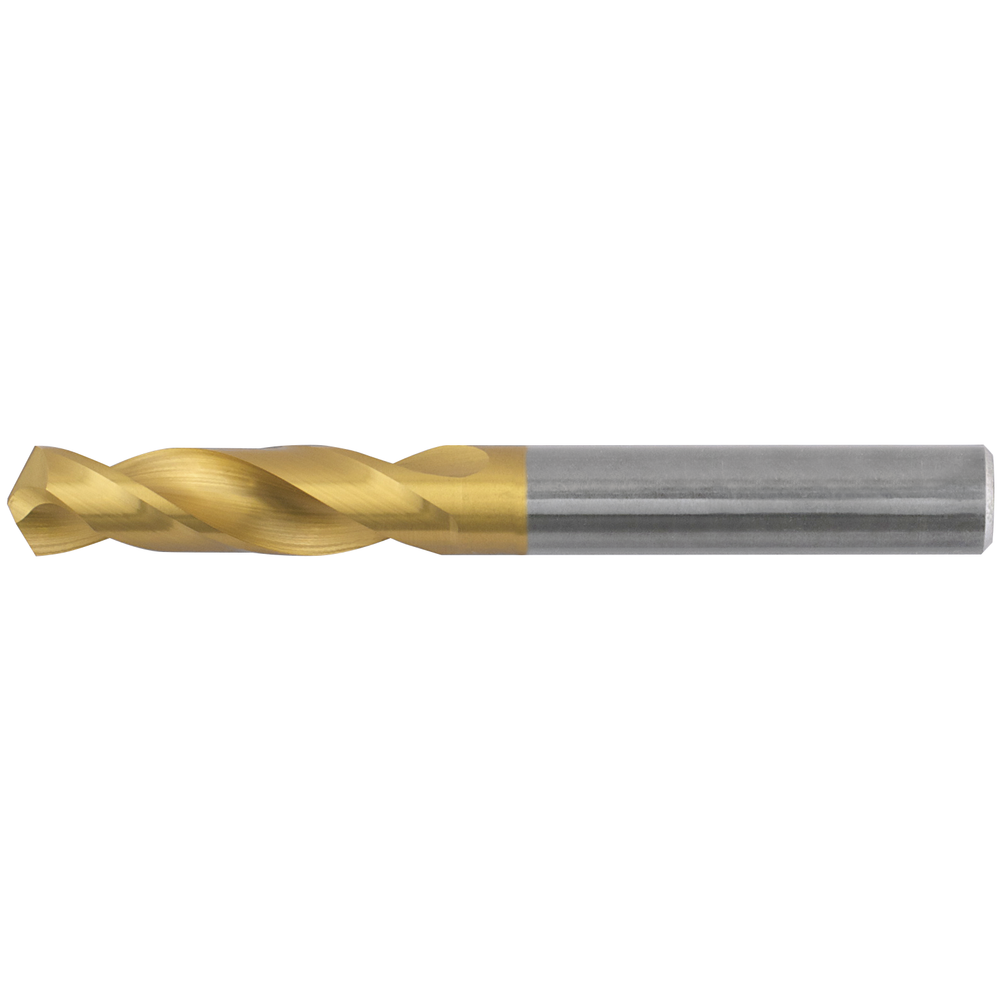

Solid carbide twist drill 3xD DIN6539N 0,5mm TiN

Solid carbide twist drill 3xD DIN6539N 0,5mm TiN
Solid carbide twist drill 3xD DIN6539N 0,5mm TiN Solid carbide twist drill 3xD DIN6539N 0,5mm TiN

We charge a material cost surcharge of 6,90% on this product.

Price
13,05 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

_ItemDeliveryInfoSaratools missing

Solid carbide twist drill, TiN-coated
  • Strong twist drill for automatic units/revolving lathes
  • Facet-ground
  • Cutting material: solid carbide, TiN coating

Article no./ATORN no.
1110080005 / 10482701
Packaging unit
1
Catalogue page

Technical characteristics

Angle of the tip - S 118 °
Coating TiN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 0,50 mm
DIN 6539
Feed f steel < 1000 N/mm² 0,02 mm/rev
L 20 mm
L1 3 mm
Max. drilling depth (D) 3xD
S 118 °
Section shape Split point
Tolerance of cutting edge diameter h7
Tolerance of shank diameter h6
Tool holding device HA parallel shank
Twist angle 32° (right)
Type N
Z 2 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
hardened steel ≤ 55 HRC
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
titanium alloys

very suitable
suitable
