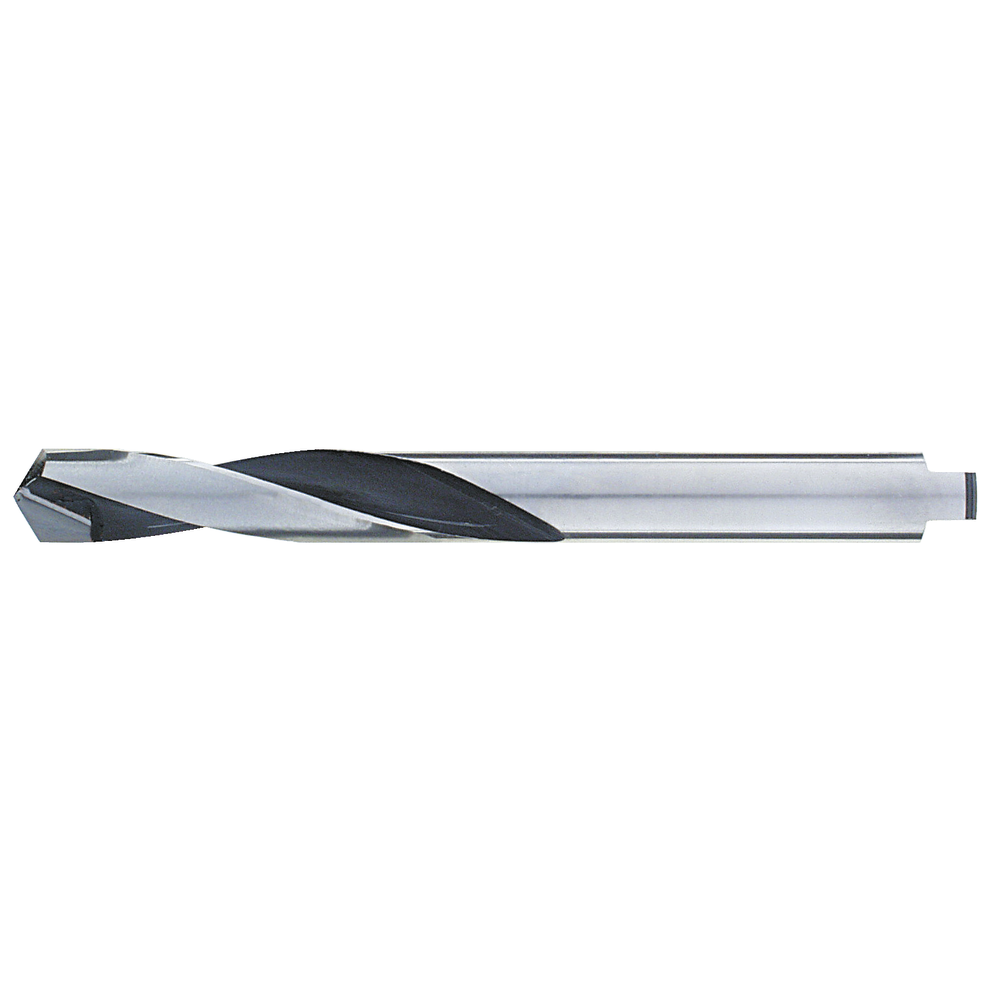

Carbide-tipped twist drill DIN8037 2mm

Carbide-tipped twist drill DIN8037 2mm
Carbide-tipped twist drill DIN8037 2mm Carbide-tipped twist drill DIN8037 2mm

We charge a material cost surcharge of 6,90% on this product.

Price
17,30 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Carbide-tipped twist drill bit
  • With driving pin in accordance with DIN 1809 for use in collets
  • HSS shank
  • Cutting element: carbide K10
  • Solid carbide cutting edges with four-facet grinding
  • Self-centring
  • Intermediate dimensions available on request

Article no./ATORN no.
1105010020
Packaging unit
5
Catalogue page
KS-0101
Cutting values
KS-0101

Technical characteristics

Angle of the tip - S 118 °
Coating uncoated
Cutting data Cutting angle Information - no
Cutting material HM
D 2,0 mm
DIN 8037
Feed f steel < 1000 N/mm² 0,02 mm/rev
L 45 mm
L1 18 mm
L3 12 mm
Max. drilling depth (D) 3xD
S 118 °
Section shape Split point
Tolerance of cutting edge diameter h8
Tool holding device Parallel shank with chuck arbour DIN 1809
Twist angle 15°
Z 2 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
graphite
hardened steel ≤ 55 HRC
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
titanium alloys

very suitable
suitable
