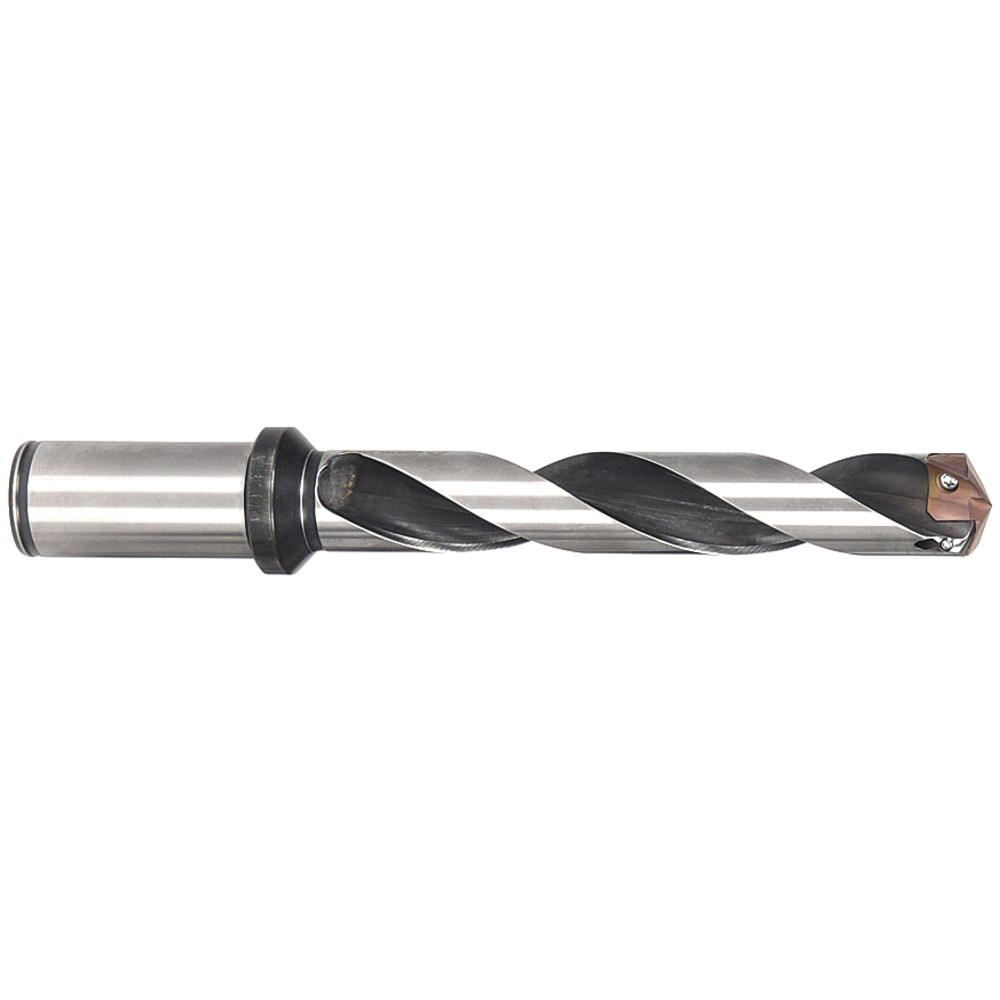

GEN3SYS® holder 5xD straight 20mm straight-fluted clamping surface (12-12,99mm)

GEN3SYS® holder 5xD straight 20mm straight-fluted clamping surface (12-12,99mm)
GEN3SYS® holder 5xD straight 20mm straight-fluted clamping surface (12-12,99mm) GEN3SYS® holder 5xD straight 20mm straight-fluted clamping surface (12-12,99mm) GEN3SYS® holder 5xD straight 20mm straight-fluted clamping surface (12-12,99mm) GEN3SYS® holder 5xD straight 20mm straight-fluted clamping surface (12-12,99mm)
Price:
323,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
GEN3SYS®XT high-performance drilling system
  • Robust holder with internal coolant supply
  • 5xD and 7xD holders (3xD available on request)
  • Excellent chip control
  • Up to 20 % higher speeds
  • High-precision drill bit centring in the holder for absolute repeatability
  • newly patented TiAlN-coating AM300™ for up to 25 % longer service life
  • High drilling accuracy, surface finish quality and concentricity
  • Helix-ground guide rail for maximum stability
  • Universally applicable for most materials
  • Innovative “XT” cutting edge geometry

5xD holder with straight shank
Article no./ATORN no.
1059510101
Vendor Article no.
60512S-20FM
Packaging unit
1
Catalogue page

Technical characteristics

Clamping surface yes
Coolant supply Intern axial
Cutting data Cutting angle Information - yes
D 12,00 - 12,99 mm
D 94,8 mm
D1 20 mm
Design geradegenutet
L 134,5 mm
L2 92,6 mm
L3 64,9 mm
L4 41,9 mm
Max. drilling depth (D) 5xD
Thread type x nominal diameter x pitch 1/8
Tool holding device Straight with driving plane, DIN 1835 B
