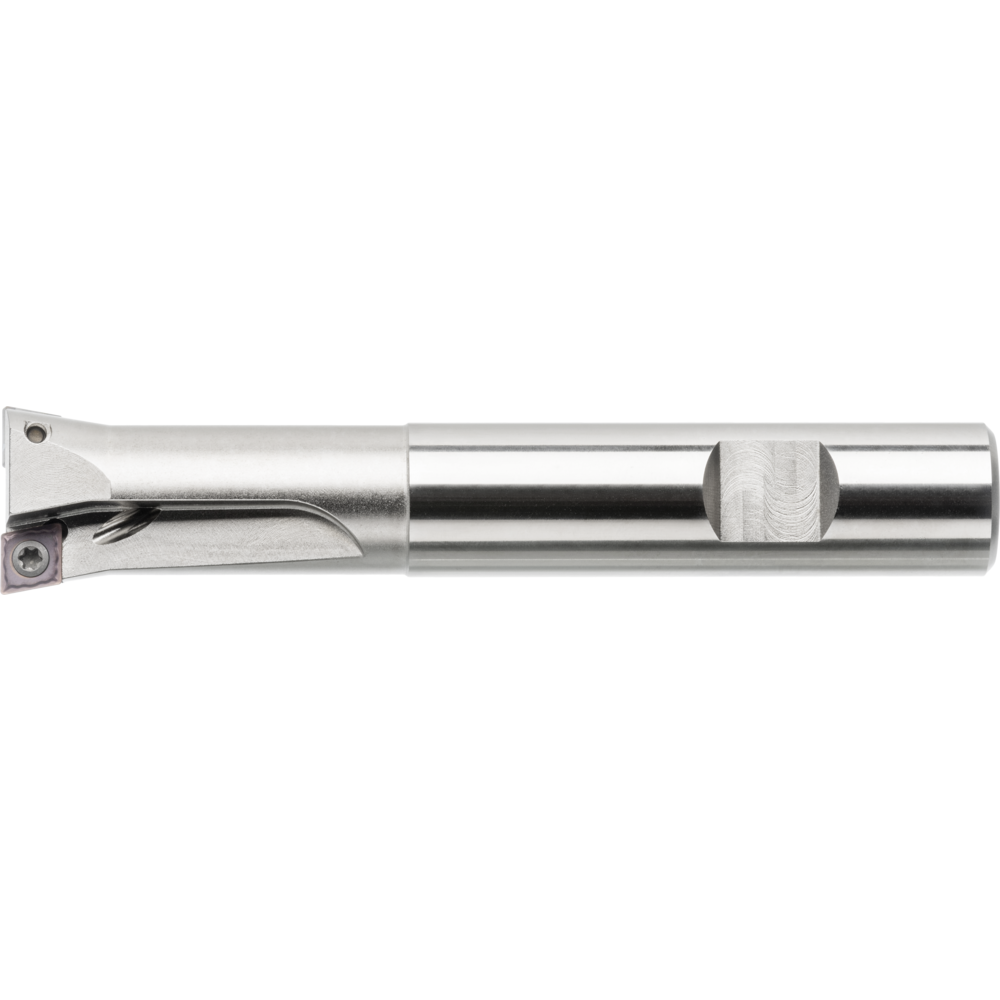

Indexable insert boring and countersinking bar 16mm 2xCC..0602.. Weldon 12mm, IC

Indexable insert boring and countersinking bar 16mm 2xCC..0602.. Weldon 12mm, IC
Indexable insert boring and countersinking bar 16mm 2xCC..0602.. Weldon 12mm, IC Indexable insert boring and countersinking bar 16mm 2xCC..0602.. Weldon 12mm, IC
Price:
215,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Core and countersink drill
  • With internal cooling
  • For countersinking and drilling
  • Counterbores for producing countersinks for cylinder head screws, countersinks, sealing surfaces
  • Fixed dimension spiral countersink for drilling pre-machined or cast bores
  • The diameter to be drilled must not be smaller than dimension A!
  • Bore tolerances: For countersinks according to DIN 74 (H13)
  • For ISO indexable inserts, please refer to the “Turning” section

Core and countersink drill bits with two indexable insert housings
Core and countersink drill
  • With internal cooling
  • For countersinking and drilling
  • Counterbores for producing countersinks for cylinder head screws, countersinks, sealing surfaces
  • Fixed dimension spiral countersink for drilling pre-machined or cast bores
  • The diameter to be drilled must not be smaller than dimension A!
  • Bore tolerances: For countersinks according to DIN 74 (H13)
  • For ISO indexable inserts, please refer to the “Turning” section

Core and countersink drill bits with two indexable insert housings
Article no./ATORN no.
1640050016 / 11114816
Packaging unit
1
Catalogue page
KS-0233

Technical characteristics

A-Maß 0,09 mm
Anzahl Schneiden 2 pc.
Coolant supply Internal
Coolant supply Internal
D 16 mm
D 16 mm
D1 12 mm
D1 12 mm
Eignung Edelstahl gesamt 0
Eignung nicht Eisen gesamt 0
Eignung Titan/Nickel/Super gesamt 0
fitness hartl total 0
Geeignet für Durchmesser max. 42,0 mm
Geeignet für Durchmesser min. 16,0 mm
Geeignet für Durchmesser min./max. 16,0-42,0 mm
L 92 mm
L 92 mm
L1 30 mm
L1 30 mm
Pre-drill min. Ø 5 mm
Pre-drill min. Ø 5 mm
Senkwinkel 90 °
Spitzenwinkel 93 °
suitable indexable inserts CC..06
suitable indexable inserts CC..06
Tool holding device HB parallel shank
Tool holding device HB parallel shank
