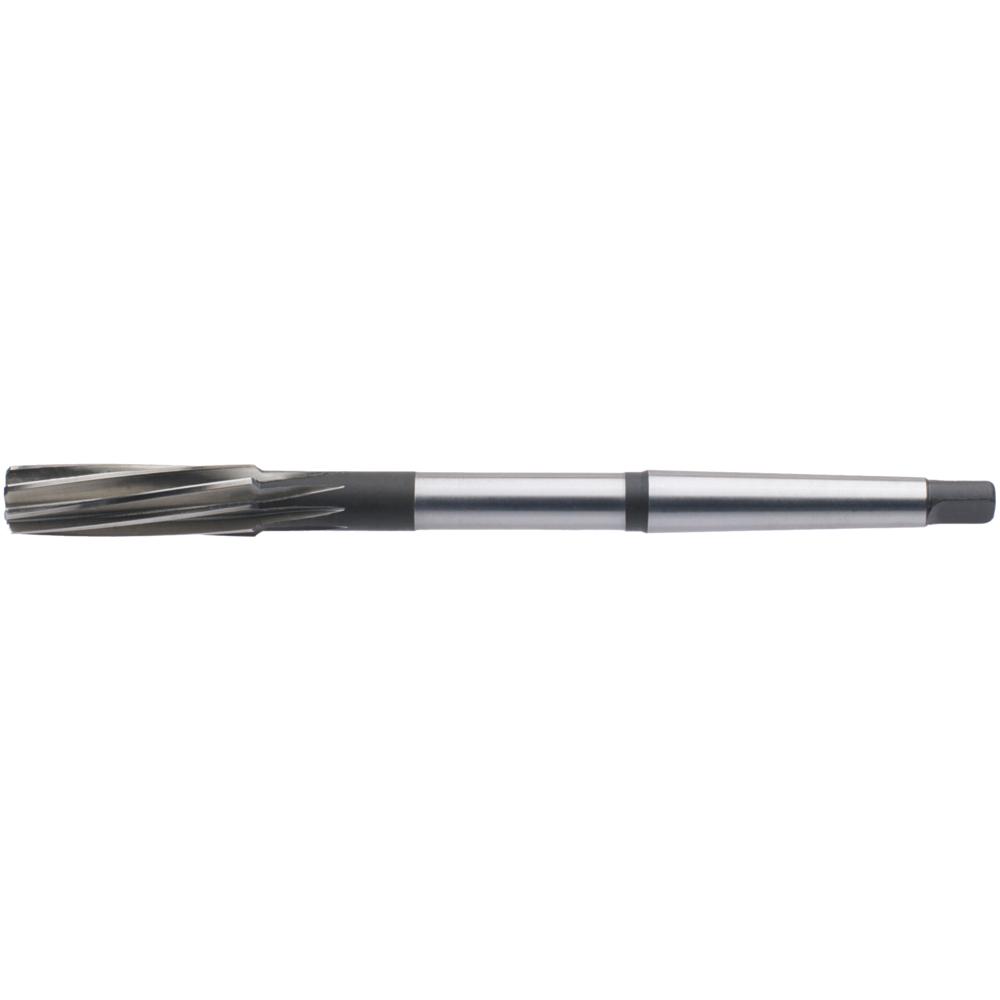

Machine reamer HSS-E DIN208B 34mm H7 MK4

Machine reamer HSS-E DIN208B 34mm H7 MK4
Machine reamer HSS-E DIN208B 34mm H7 MK4 Machine reamer HSS-E DIN208B 34mm H7 MK4
Price
266,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

Machine reamer with MT shank
  • Type B for H7 fit
  • Right-hand cutting
  • Morse taper
  • Spiral-fluted, short 45° chamfer
  • Even ridge count with irregular pitch for chatter-free bore reaming
  • Cutting material: HSS-E
  • For reaming through-holes, chip removal in the cutting direction, suitable for blind bores due to short chamfer

Standard version, DIN 208
  • 9° left-hand twist

Article no./ATORN no.
1610050340 / 10040820
Packaging unit
1
Catalogue page
KS-0334
Cutting values
SW-0410

Technical characteristics

Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material HSSE
D 34,0 mm
DIN 208
Feed f steel < 1000 N/mm² 0,30 mm/rev
L 321 mm
L1 78 mm
Shank MT 4
Surface Uncoated
Tolerance of fit H7
Tool holding device Morse taper shank
Twist angle 9° (left)
Z 12 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GG/GTS
cast iron GGG
plastic
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
