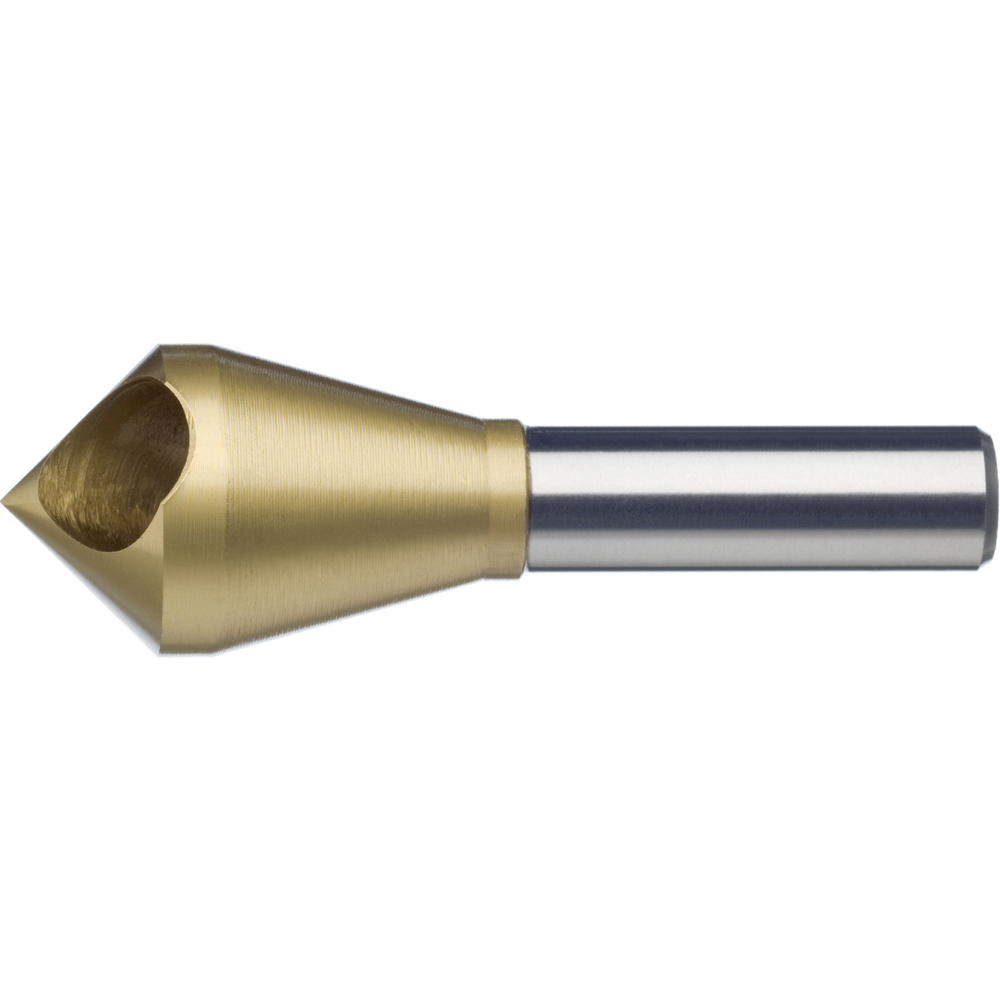

Deburring countersink HSS-E WN 90° 2-5mm with cross-hole, L=45mm TiN

Deburring countersink HSS-E WN 90° 2-5mm with cross-hole, L=45mm TiN
Deburring countersink HSS-E WN 90° 2-5mm with cross-hole, L=45mm TiN Deburring countersink HSS-E WN 90° 2-5mm with cross-hole, L=45mm TiN
Price:
20,80 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Taper and deburring countersinks
  • With cross-hole and straight shank
  • Chip removal due to slanted bore in the shank direction, light spiral point
  • Cutting material: HSS-E; HSS-E, TiN-coated

Individual
Taper and deburring countersinks
  • With cross-hole and straight shank
  • Chip removal due to slanted bore in the shank direction, light spiral point
  • Cutting material: HSS-E; HSS-E, TiN-coated

Individual
Article no./ATORN no.
1501460025 / 10642100
Packaging unit
1
Catalogue page
KS-0317
Cutting values
SW-0403

Technical characteristics

Angle of the tip - S 90 °
Angle of the tip - S 90 °
Coating TiN
Coating TiN
Coolant supply External
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
D 10 mm
D 10 mm
D1 6 mm
D1 6 mm
Design TiN
Design TiN
DIN Company standard
DIN Company standard
Eignung Edelstahl gesamt 2
Eignung nicht Eisen gesamt 1
Eignung Titan/Nickel/Super gesamt 3
f Stahl 700 0,12 mm/rev
Feed f steel < 1000 N/mm² 0,04 mm/rev
Feed f steel < 1000 N/mm² 0,04 mm/rev
fitness hartl total 3
for Ø 2 - 5 mm
for Ø 2 - 5 mm
L 45 mm
L 45 mm
Number of cutting edges 1 pc.
Schneidendurchmesser max. 5 mm
Schneidendurchmesser min. 2 mm
Schneidendurchmesser min./max. 2-5 mm
Surface TiN
Tolerance of shank diameter h9
Tolerance of shank diameter h9
Tool holding device HA parallel shank
Tool holding device HA parallel shank
Type Kegelsenker 90°
Type Countersink 90°

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass long
brass long
brass short
brass short
bronze long
bronze long
bronze short
bronze short
cast iron GG/GTS
cast iron GG/GTS
cast iron GGG
cast iron GGG
plastic
plastic
stainless steel austenitic
stainless steel austenitic
stainless steel duplex
stainless steel duplex
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²
Suitable for shaft diameter 2 - 5 mm
Suitable for shaft diameter 2 - 5 mm
titanium alloys
titanium alloys

very suitable
suitable
