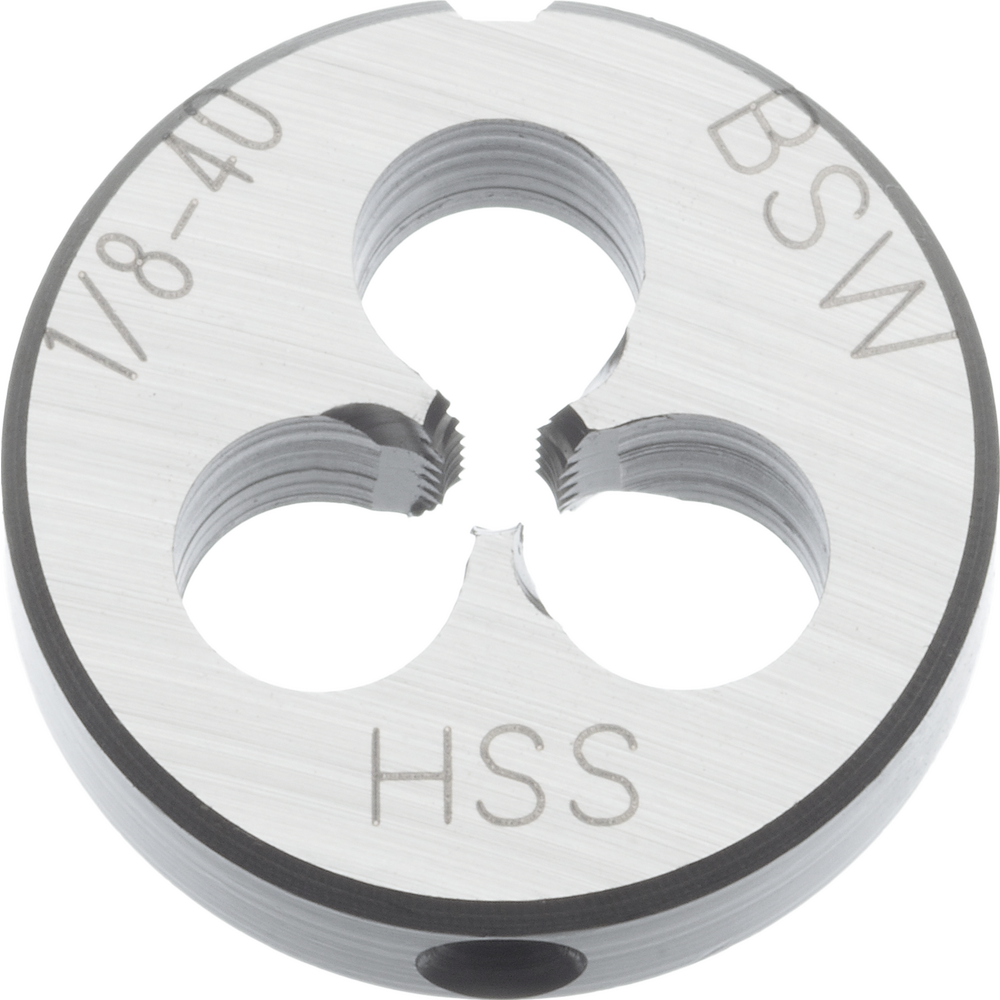

Threading die HSS EN22568 BSW 1/8"-40 thread/inch

Threading die HSS EN22568 BSW 1/8"-40 thread/inch
Threading die HSS EN22568 BSW 1/8"-40 thread/inch Threading die HSS EN22568 BSW 1/8"-40 thread/inch
Price:
61,60 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Threading dies
  • for BS 84 Whitworth threads or DIN/EN/ISO 228 part 1 Whitworth pipe threads
  • Closed, pre-slotted shape
  • From 1/8’’ with two-sided spiral point for clean and easy chip removal in the cutting direction
  • Cutting material: HSS

BS 84 Whitworth thread, medium tolerance zone
Threading dies
  • for BS 84 Whitworth threads or DIN/EN/ISO 228 part 1 Whitworth pipe threads
  • Closed, pre-slotted shape
  • From 1/8’’ with two-sided spiral point for clean and easy chip removal in the cutting direction
  • Cutting material: HSS

BS 84 Whitworth thread, medium tolerance zone
Article no./ATORN no.
1360350003 / 11190189
Packaging unit
1
Catalogue page
KS-0301
Cutting values
SW-0399

Technical characteristics

Coolant supply External
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSS
Cutting material HSS
D BSW 1/8’’
D BSW 1/8’’
DIN 22568
DIN 22568
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 2
Eignung Titan/Nickel/Super gesamt 3
EN-Norm 22568
fitness hartl total 3
Height 5 mm
Height 5 mm
N 3
N 3
Nominal diameter in inches 1/8 in
Outer diameter 20 mm
Outer diameter 20 mm
Pitch 40
Pitch 40
Thread BSW
Thread BSW
Thread angle 55 °
Thread angle 55 °
Thread type x nominal diameter in inches BSW 1/8 in
Tolerance of dies ISO 2 6H
Tolerance of dies ISO 2 6H

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
bronze short
bronze short
D 1/8 in
D BSW 1/8 in
D 1/8 in
D BSW 1/8 in
plastic
plastic
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
