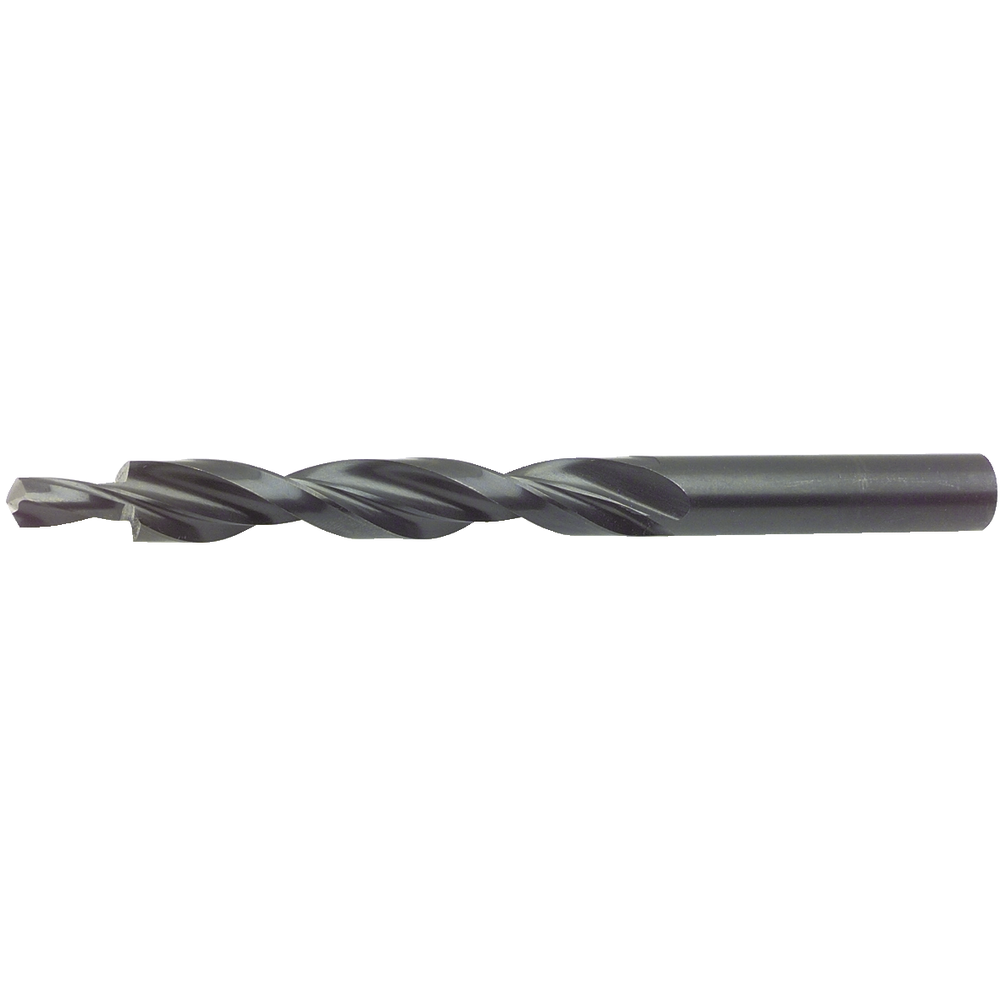

Step drill HSS DIN8376 180° for M3, 6x3,4mm through-hole, medium

Step drill HSS DIN8376 180° for M3, 6x3,4mm through-hole, medium
Step drill HSS DIN8376 180° for M3, 6x3,4mm through-hole, medium Step drill HSS DIN8376 180° for M3, 6x3,4mm through-hole, medium Step drill HSS DIN8376 180° for M3, 6x3,4mm through-hole, medium Step drill HSS DIN8376 180° for M3, 6x3,4mm through-hole, medium
Price:
36,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Step drills
  • Cone-shaped shell
  • Vapour-treated
  • Point thinning in accordance with DIN 1412 type A
  • Ø tolerance h8, other design features in accordance with DIN 1414
  • Note: The cutting speed is determined by the large diameter, while the feed rate is determined by the small diameter for core drilling

180° countersink
  • For through-holes in accordance with DIN EN 20273
  • For 180° countersunk screw heads in accordance with DIN 974-1
  • For screws in accordance with DIN 6912, 7513, 7984

Article no./ATORN no.
1021030030 / 10474745
Packaging unit
1
Catalogue page
KS-0108
Cutting values
SW-0357

Technical characteristics

Angle of the tip - S 118 °
Coating uncoated
Cutting data Cutting angle Information - yes
Cutting material HSS
D 6,0 mm
D2 3,4 mm
DIN 8376
Feed f steel < 700 N/mm² 0,03 mm/rev
for thread M 3
L 93 mm
L1 57 mm
L5 9 mm
Section shape Cone-shaped shell type A
Surface Vaporised
Tool holding device HA parallel shank
Twist angle 29°

Usage characteristics

cast iron GG/GTS
cast iron GGG
steel < 1000 N/mm²
steel < 700 N/mm²

very suitable
suitable
Catalogue page Download
Cutting values Download
