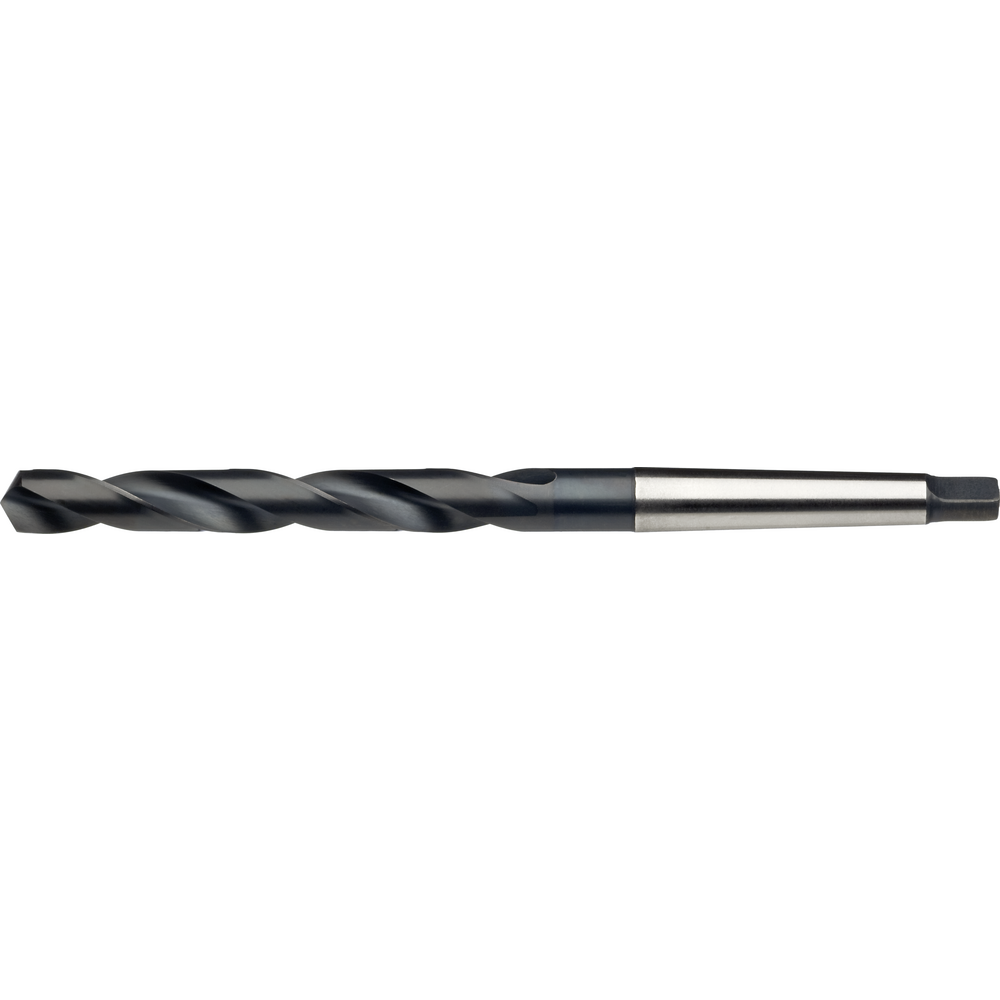

Twist drill HSS 5xD DIN345N 118° 5mm vapour-treated, ground

Twist drill HSS 5xD DIN345N 118° 5mm vapour-treated, ground
Twist drill HSS 5xD DIN345N 118° 5mm vapour-treated, ground Twist drill HSS 5xD DIN345N 118° 5mm vapour-treated, ground

We charge a material cost surcharge of 6,90% on this product.

Price
27,70 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

_ItemDeliveryInfoSaratools missing

Twist drill with MT shank
  • Point thinning from Ø 14.25 mm
  • MT shank
  • Vapour-treated, resulting in lower welding tendency and better chip removal

Article no./ATORN no.
1015050050 / 10472437
Packaging unit
1
Catalogue page
KS-0093
Cutting values
SW-0361

Technical characteristics

A-Maß 1,5 mm
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material HSS
D 5,00 mm
DIN 345
Eignung nicht Eisen gesamt
Feed f steel < 700 N/mm² 0,11 mm/rev
Kraglänge 71 mm
L 133 mm
L1 52 mm
Max. drilling depth (D) 5xD
S 118 °
Schaftlänge 62 mm
Schneidendurchmesser max. 65,0 mm
Schneidendurchmesser min. 5,0 mm
Schneidendurchmesser min./max. 5,0-65,0 mm
Schnittgeschwindigkeit (Bronze kurz) Eignung
Schnittgeschwindigkeit (Bronze kurz) Vc 40,00 m/min
Schnittgeschwindigkeit (Bronze lang) Eignung
Schnittgeschwindigkeit (Bronze lang) Vc 30,00 m/min
Schnittgeschwindigkeit (Kunststoff ) Eignung
Schnittgeschwindigkeit (Kunststoff ) Vc 20,00 m/min
Schnittgeschwindigkeit (Messing lang) Eignung
Schnittgeschwindigkeit (Messing lang) Vc 35,00 m/min
Section shape Cone-shaped shell type A
Shank MT 1
Surface Vaporised
Tolerance of cutting edge diameter h8
Tool holding device Morse taper shank
Twist angle 30°
Type N
Z 2 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
graphite
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 700 N/mm²

very suitable
suitable
