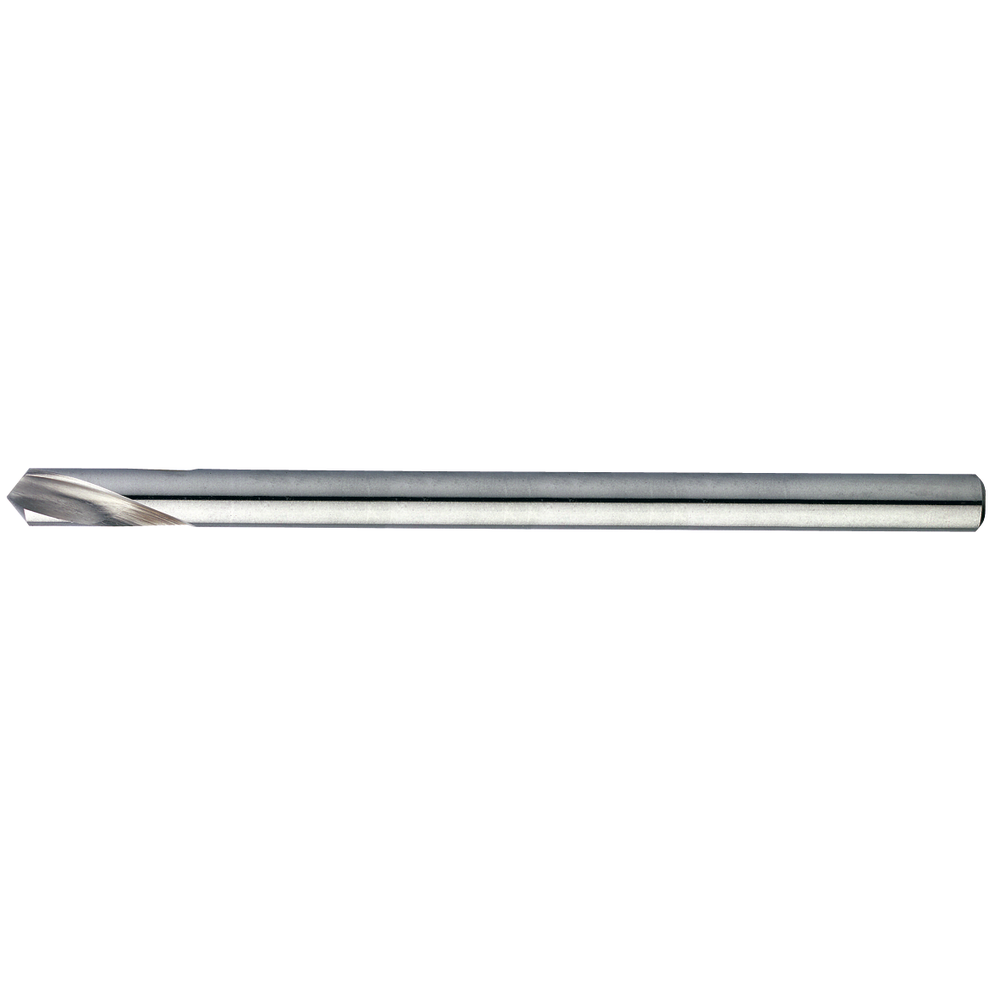

NC spotting drill HSS-Co5 120° Ø4mm (steel/stainless steel/non-ferrous) L=100mm

NC spotting drill HSS-Co5 120° Ø4mm (steel/stainless steel/non-ferrous) L=100mm
NC spotting drill HSS-Co5 120° Ø4mm (steel/stainless steel/non-ferrous) L=100mm NC spotting drill HSS-Co5 120° Ø4mm (steel/stainless steel/non-ferrous) L=100mm
Price:
52,20 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
NC spotting drill, long
  • Long version for machining with access problems
  • S° = point angle 90° or 120°
  • Precision-ground point with slender chisel edge
  • High stability due to short chip flutes
  • For fast drilling on NC/CNC machines and machining centres with precise positioning

Article no./ATORN no.
1001220400 / 10440530
Packaging unit
1
Catalogue page
KS-0063
Cutting values
SW-0353

Technical characteristics

Angle of the tip - S 120 °
Cutting material HSSE
D 4,00 mm
D1 4 mm
Design 120°
Feed f steel < 1000 N/mm² 0,05 mm/rev
L 100 mm
L1 12 mm
Tolerance of cutting edge diameter h6
Tool holding device HA parallel shank

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
graphite
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
titanium alloys

very suitable
suitable
