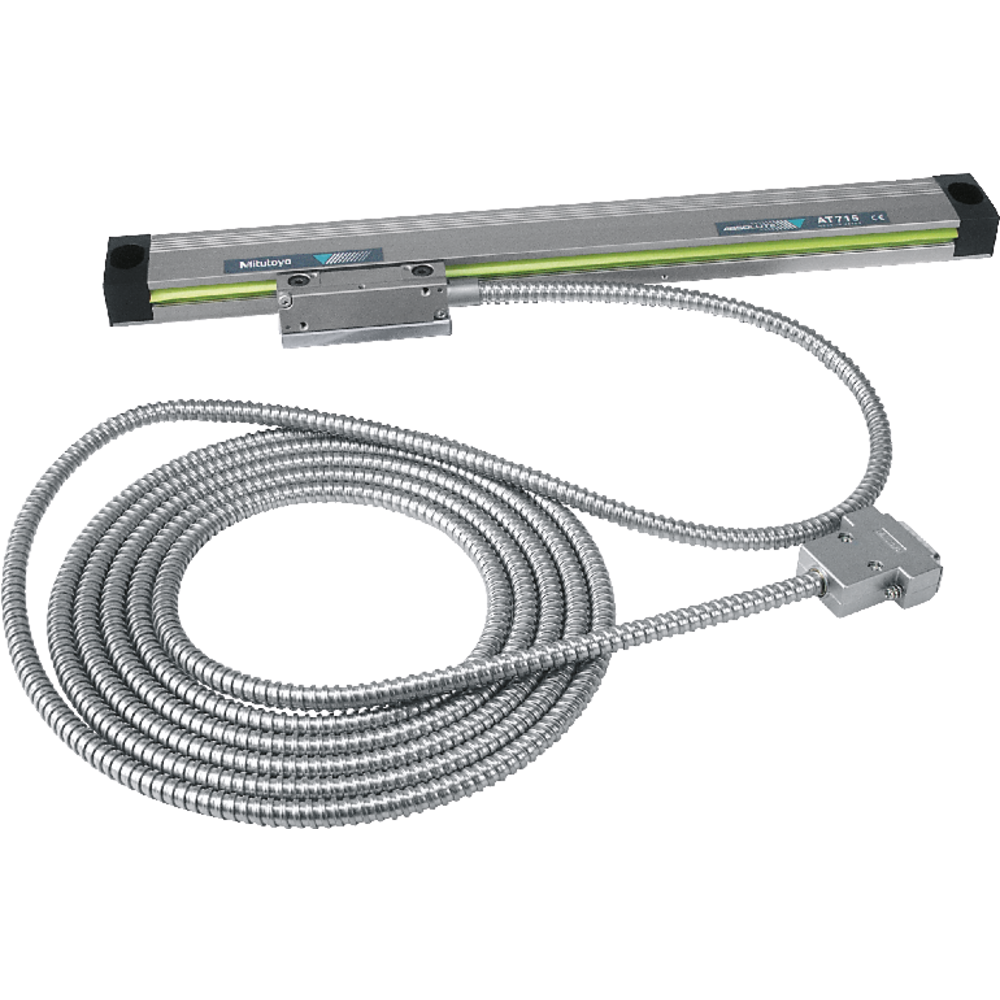

Digital length measurement system LINEAR SCALE AT 715
  • ABSOLUTE scale
  • Linear scale ready for direct mounting with aluminium profile casing
  • Includes fasteners
  • Profile cross-section 22 x 35 mm (without encoder unit)
  • Connection only to KA-COUNTER (574021....)
  • Error margin:
    100-500 mm = 5 µm
    600-1800 mm = 7 µm
    2000-3000 mm = 10 µm
  • Supplied with operating manual, shipped in disposable packaging
  • Attention: When selecting suitable scales, please always take into account the effective manually adjusted travel for your machine. Please also bear in mind that a mini-profile AT 112F is available for use in confined installation surroundings.

Article no./ATORN no.
5730300100
Vendor Article no.
539-801N
Packaging unit
1
Catalogue page

Technical characteristics

Cable length 3,5 m
Included in delivery Manufacturer’s test certificate
max. encoder route 120 mm
Max. length measuring range 120 mm
Measurement range 100 mm
Nominal dimension 100 mm
Packaging / Shipment Manufacturer’s test certificate
Protection type IP 67
Total length 278 mm
