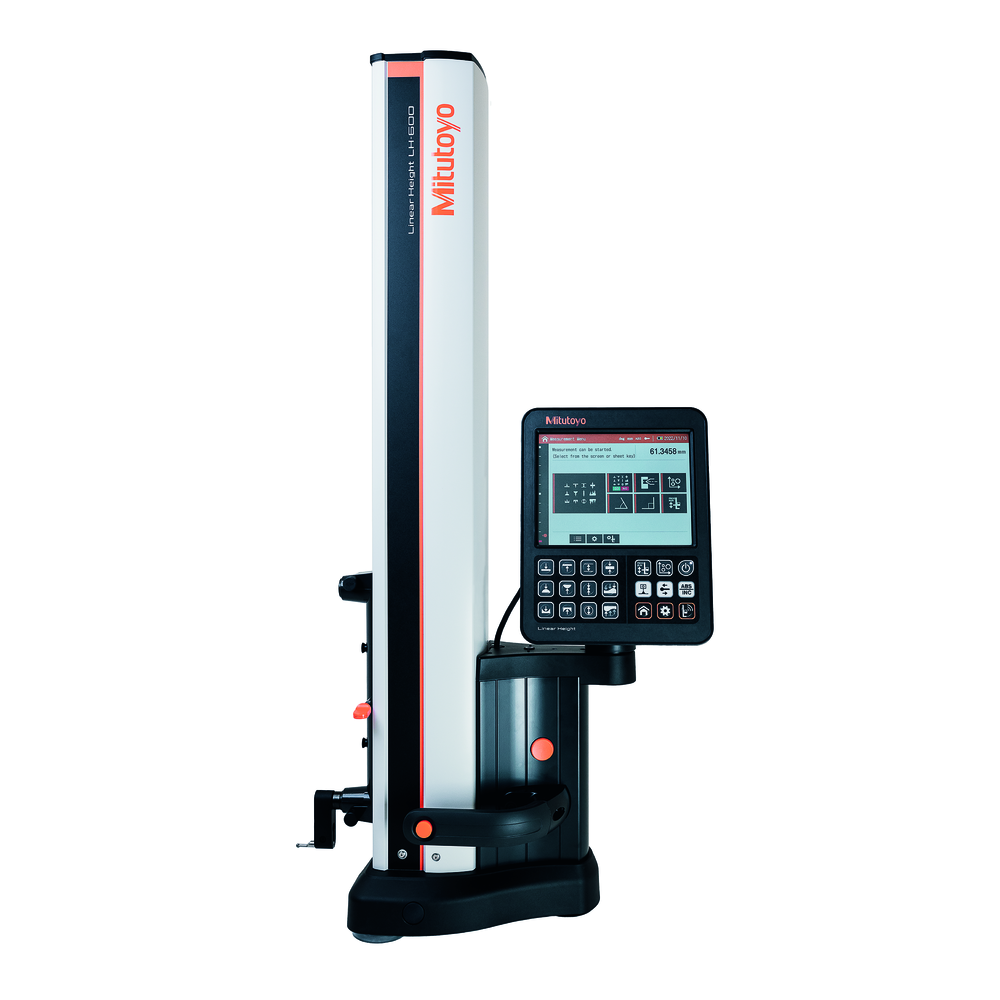

Linear height meter Linear Height LH 600F

• Measurement of height, steps, groove widths, inner and outer diameters, their distances and two-dimensional measurements such as pitch-circle calculation
• Measurement of perpendicularity with an optional dial gauge
• Robust and high-precision height meter for workshops and measuring rooms
• Measuring accuracy (1.1 + 0.6 L/600) μm
  Repeatability - surface 0.4 µm/ bore 0.9 μm
• Metric / inch units selectable
• Resolution selectable from 0.0001 mm to 0.1 mm
• Pneumatic movement mechanism (floating/semi-floating)
• Direct interaction through the easy-to-read 8.4" LCD touchscreen
• One-button operation
• Independent settings for traverse and measuring speed for fast positioning (up to 40 mm/s) and intuitive probing
• Direct GO/NG feedback for each measurement
• Stand-alone operation thanks to rechargeable batteries (operating time 4 hours, second battery pack can be retrofitted) and independent compressed air supply (integrated compressor)
• 21 languages selectable
• Measurement functions:
  1D and 2D measurements
  Height measurement (upper/lower surface)
  Diameter (bore/shaft)
  Angle measurement
  2D: element calculation, distance calculation, pitch-circle calculation
  2D coordinate system setting
  Support for the polar coordinate system
  Perpendicularity, straightness, tilt and flatness detection
• Probe use:
  Setting option for probe type
  Measurement and storage of the probe ball diameter
  Changing the probe position
• Statistical processing:
  Basic statistical processing
  Histogram creation
• Technical data:
  Measurement range (stroke) 0-978 mm (600 mm) / 0-38" (24")
  Length measurement deviation (1.1 + 0.6 L/600) μm L = measuring length in mm
  Repeatability (2 s) surface 0.4 μm; bore: 0.9 μm,
  Perpendicularity 5 μm
  Straightness 4 μm
  Measuring force 1 N
• Digimatic input interface for optional dial gauge / RS-232C-, USB, Digimatic S1 interface
• Evaluations with an optional receipt printer or data transfer to the PC using a wireless connection, cable or USB stick
• Power supply AC mains adapter/rechargeable battery (Ni-MH) operating time approx. 4 hours
  Weight 26 kg
• Supplied in transport packaging including 1x Ø 5 mm ball probe, setting gauge, battery pack, power supply and operating instructions
