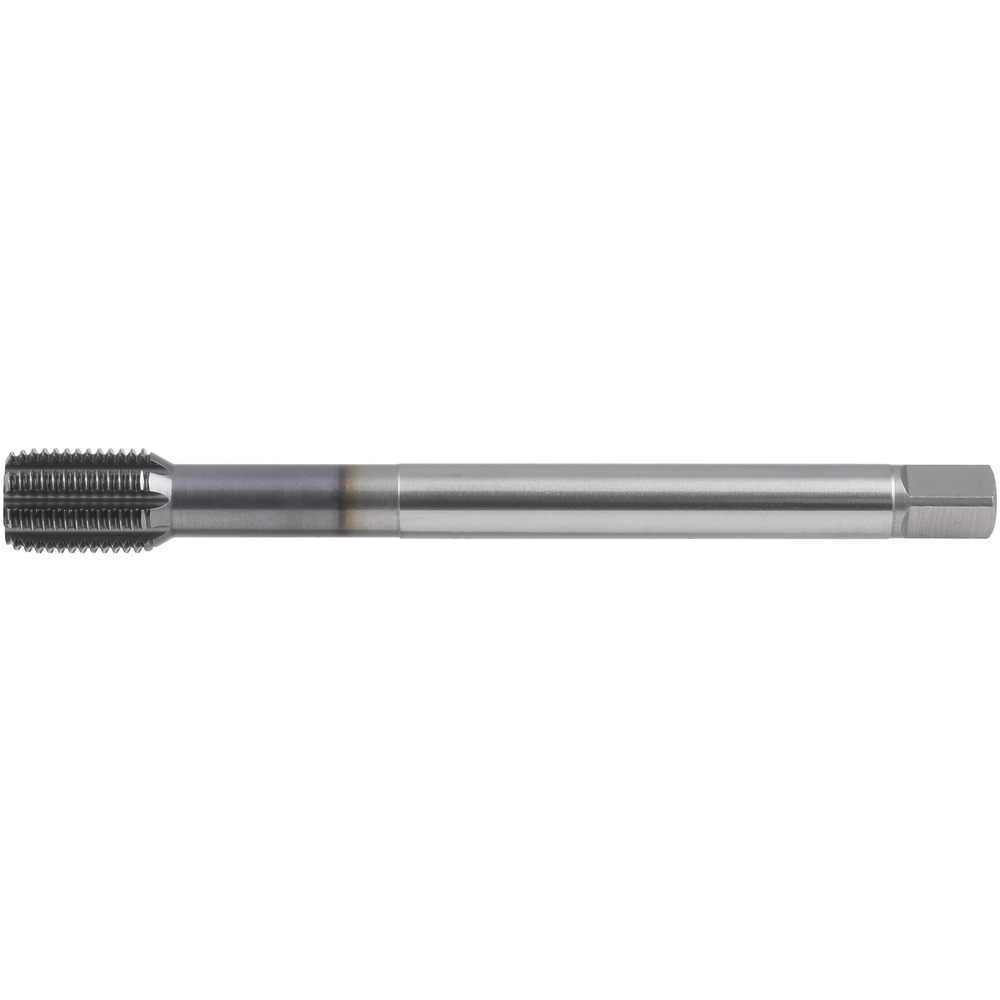

S-XPF forming tap HSS-E DIN2174C MF4x0.5 6HX

S-XPF forming tap HSS-E DIN2174C MF4x0.5 6HX
S-XPF forming tap HSS-E DIN2174C MF4x0.5 6HX S-XPF forming tap HSS-E DIN2174C MF4x0.5 6HX
Price:
57,50 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
S-XPF and S-OIL-XPF machine forming taps
  • Metric ISO 6HX fine thread
  • Form C, 2.5-thread chamfer
  • With oil grooves
  • Cutting material: HSS-E, TiCN
  • For blind-hole and through-hole threads
  • 133935.... with radial coolant outlet

S-XPF and S-OIL-XPF machine forming taps
  • Metric ISO 6HX fine thread
  • Form C, 2.5-thread chamfer
  • With oil grooves
  • Cutting material: HSS-E, TiCN
  • For blind-hole and through-hole threads
  • 133935.... with radial coolant outlet

Article no./ATORN no.
1339300405
Vendor Article no.
48030145
Packaging unit
1
Catalogue page
KS-0286
Cutting values
SW-0398

Technical characteristics

C 3,4 mm
C 3,4 mm
Coating TiCN
Coating TiCN
Coolant design Without coolant supply
Coolant supply Nein
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
D M 4 mm
D M 4 mm
D1 4,5 mm
D1 4,5 mm
DIN DIN 2174
Form/Chamfer C, 2.5-thread chamfer
Form/Chamfer C
L 63 mm
L 63 mm
L1 8 mm
L1 8 mm
Max. thread depth Gewinde 2,5xD
Pitch 0,5 mm
Pitch 0,5 mm
Spiral angle Straight-fluted
Spiral angle Straight-fluted
Standard constructional dimensions DIN DIN 2174
Standard tolerance ISO 2 6HX
Tapping hole Ø 3,80 mm
Tapping hole Ø 3,80 mm
Thread metric fine thread
Thread metric fine thread
Thread angle 60° thread angle °
Thread angle 60 °
Thread angle 60° thread angle °
Thread depth 2.5xD thread
Threaded hole type For blind-hole and through-hole threads
Threaded hole type Durchgangs-/Sackloch
Tolerance of screw taps ISO 2X (6HX)
Twist angle 0°

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
brass short
copper Cu-alloy
stainless steel austenitic
stainless steel austenitic
stainless steel duplex
stainless steel duplex
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
