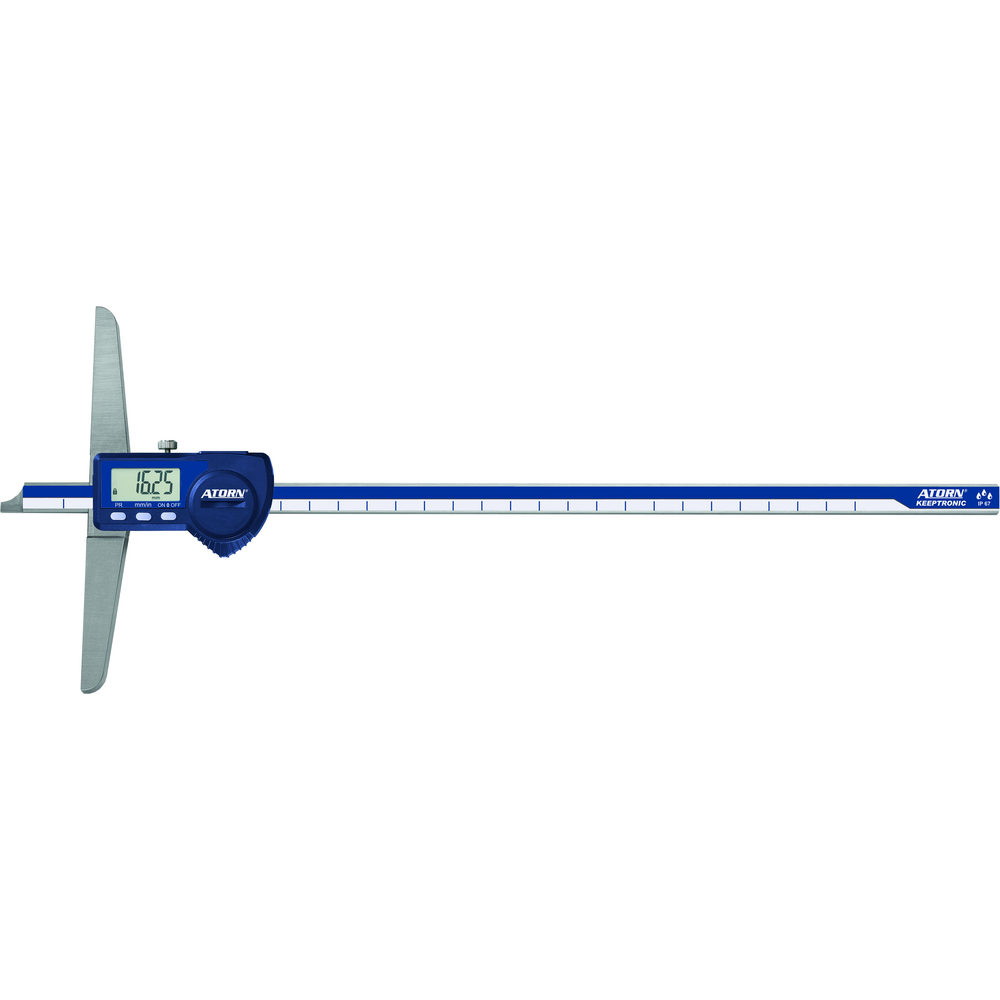

Digital sliding depth gauge 200mm (0.01mm) IP67, base length 100mm

Digital sliding depth gauge 200mm (0.01mm) IP67, base length 100mm
Digital sliding depth gauge 200mm (0.01mm) IP67, base length 100mm Digital sliding depth gauge 200mm (0.01mm) IP67, base length 100mm
Price:
539,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Add service

*
*
Data output multiCOM

IP67 digital sliding depth gauge
  • With and without measuring hook
  • Precision-ground measuring faces
  • KEEPTRONIC electronics store the zero point, operating keys lock to prevent accidental alteration of the zero point. Battery life approx. 3 years
  • Inductive, waterproof FPS measuring system (Fluid Protected Measuring System)
  • multiCOMdata output, can be used as USB, Digimatic or RS-232
  • Functions:
    0/ON/Off, mm/inch, PRESET for pre-setting user-defined values
  • Supplied with CR 2032 battery, No. 548079 6032
  • Optional accessories: Data cables, type P-RS 232 / P-Digimatic / P-USB, no. 512521....

Data output multiCOM

IP67 digital sliding depth gauge
  • With and without measuring hook
  • Precision-ground measuring faces
  • KEEPTRONIC electronics store the zero point, operating keys lock to prevent accidental alteration of the zero point. Battery life approx. 3 years
  • Inductive, waterproof FPS measuring system (Fluid Protected Measuring System)
  • multiCOMdata output, can be used as USB, Digimatic or RS-232
  • Functions:
    0/ON/Off, mm/inch, PRESET for pre-setting user-defined values
  • Supplied with CR 2032 battery, No. 548079 6032
  • Optional accessories: Data cables, type P-RS 232 / P-Digimatic / P-USB, no. 512521....

Article no./ATORN no.
5016100201 / 31059536
Packaging unit
1
Catalogue page
KS-1356

Technical characteristics

Akku-/Batterieanzahl 1 pc.
Akku-/Batteriebezeichnung 3V CR2032 Lithium
Akku-/Batteriegewicht 0,003 kg
Akku-/Batteriekapazität 200 mAh
Akku-/Batteriespannung 3 V
Base length 100 mm
Bridge length x bridge width 100 x 8 mm
Bridge length x bridge width 100 x 8 mm
Brückenbreite 8 mm
Data transmission type multiCOM
Data transmission type RS232C/DIGIMATIC/USB
Data transmission type multiCOM
Data transmission type RS232C/DIGIMATIC/USB
Datenkabeltyp D1 | D2 | D3
Design ohne Messhaken
Design Without measuring hook
Digit increment 0,01 mm
Digit increment 0,01 mm
DIN 862
DIN 862
Functions KEEPTRONIC
Functions KEEPTRONIC
Included in delivery Sturdy box
Included in delivery Sturdy box
ISO 13385-2
Kalibriergruppe B
Material property Stainless steel/All parts hardened
Material property Stainless steel/All parts hardened
Max. length measuring range 200 mm
Max. length measuring range 200 mm
Messbereich Länge min. 0 mm
Messbereich Länge min./max. 0-200 mm
Protection type IP 67
Protection type IP 67
WEEE (Rücknahme gebrauchter Elektrogeräte) 06
With mm / inch switching Yes
With mm / inch switching Yes
