Internal slot sliding calliper, digital 20-160mm

Internal slot sliding calliper, digital 20-160mm
Internal slot sliding calliper, digital 20-160mm Internal slot sliding calliper, digital 20-160mm Internal slot sliding calliper, digital 20-160mm Internal slot sliding calliper, digital 20-160mm
Price:
660,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Add service

*
*
Data output multiCOM

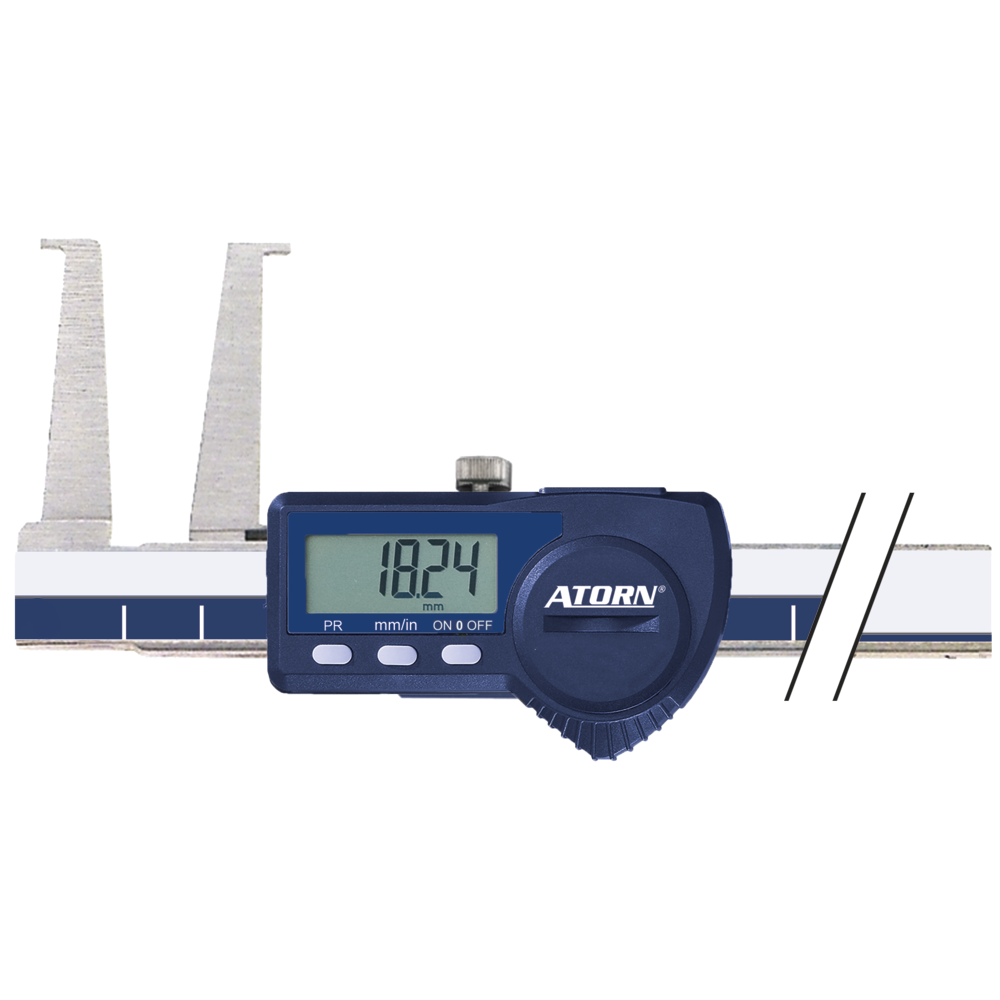

Digital internal groove calliper
  • For measuring the diameter of internal grooves
  • KEEPTRONIC electronics store the zero point, operating keys lock to prevent accidental alteration of the zero point. Battery life approx. 3 years
  • multiCOMdata output, can be used as USB, Digimatic or RS-232
  • Hardened measuring and guide surfaces
  • Functions: ON/OFF, user-defined zeroing (RESET), mm/inch
  • Supplied with CR 2032 battery, No. 548079 6032
  • Optional accessories: Data cables, type P-RS 232 / P-Digimatic / P-USB, no. 512521....

Data output multiCOM

Digital internal groove calliper
  • For measuring the diameter of internal grooves
  • KEEPTRONIC electronics store the zero point, operating keys lock to prevent accidental alteration of the zero point. Battery life approx. 3 years
  • multiCOMdata output, can be used as USB, Digimatic or RS-232
  • Hardened measuring and guide surfaces
  • Functions: ON/OFF, user-defined zeroing (RESET), mm/inch
  • Supplied with CR 2032 battery, No. 548079 6032
  • Optional accessories: Data cables, type P-RS 232 / P-Digimatic / P-USB, no. 512521....

Article no./ATORN no.
5006430160 / 31059533
Packaging unit
1
Catalogue page

Technical characteristics

Akku-/Batterieanzahl 1 pc.
Akku-/Batteriebezeichnung 3V CR2032 Lithium
Akku-/Batteriegewicht 0,003 kg
Akku-/Batteriekapazität 200 mAh
Akku-/Batteriespannung 3 V
Data transmission type multiCOM
Data transmission type RS232C/DIGIMATIC/USB
Data transmission type multiCOM
Data transmission type RS232C/DIGIMATIC/USB
Datenkabeltyp D1 | D2 | D3
Digit increment 0,01 mm
Digit increment 0,01 mm
Display Digital
Error limit 0,06 mm
Error limit 0,06 mm
Functions KEEPTRONIC
Functions KEEPTRONIC
Groove depth max. 5 mm
Groove depth max. 5 mm
Included in delivery Sturdy box
Included in delivery Sturdy box
Innenlänge min. 20 mm
Jaw length 40 mm
Jaw length 40 mm
Kalibriergruppe A
Material property Stainless steel
Material property Stainless steel
Measurement range 20-160 mm
Measurement range 20-160 mm
Measuring surface thickness 2 mm
Measuring surface thickness 2 mm
Messbereich Länge max. 160 mm
Messbereich Länge min. 20 mm
Schutzart IP IP 40
WEEE (Rücknahme gebrauchter Elektrogeräte) 06
With mm / inch switching Yes
With mm / inch switching Yes
Catalogue page Download
ASSET_MatSafetyDataSheet Download
Catalogue page Download
